Summary of Contents for Master audio MV1100CR

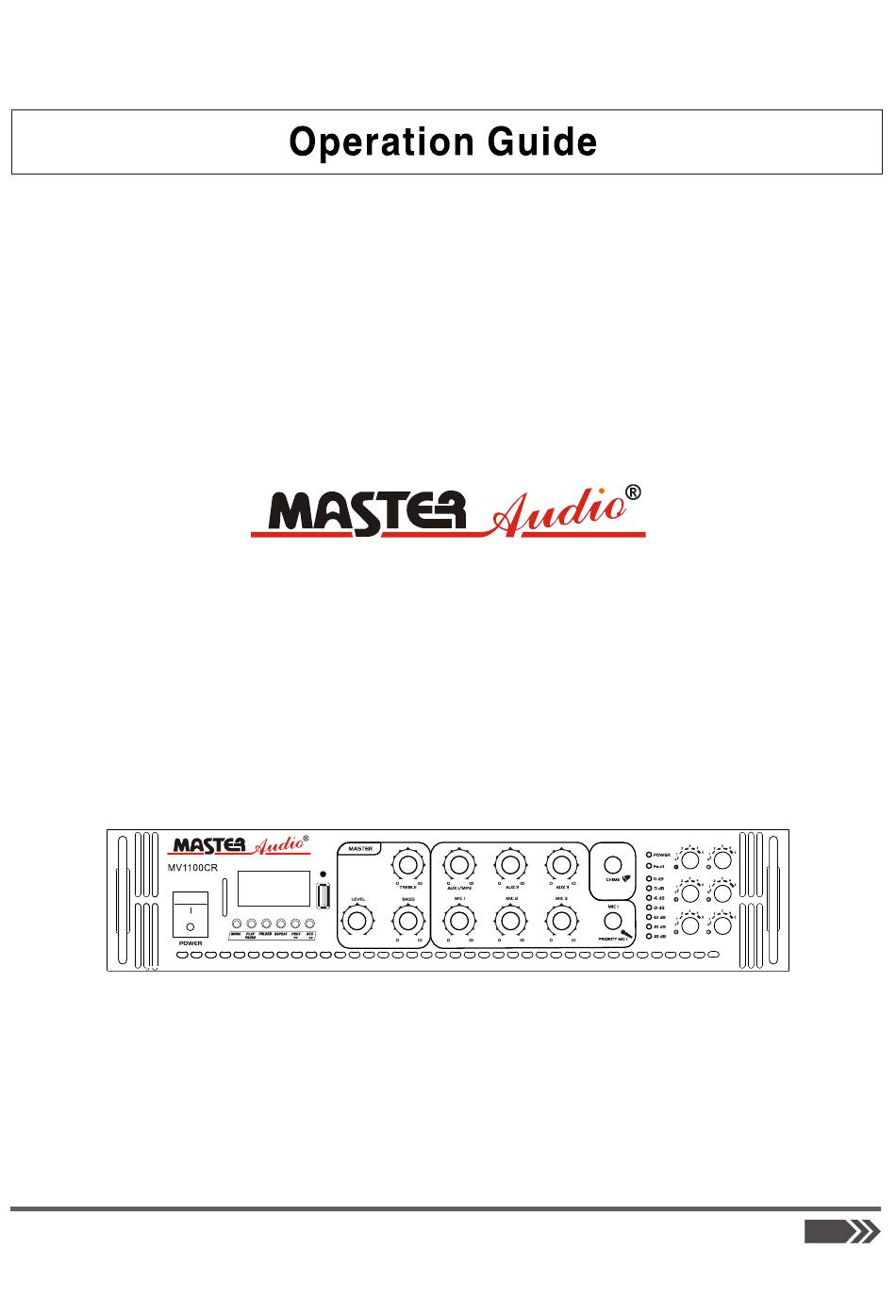

- Page 1 PROFESSION PUBLIC ADDRESS POWER AMPLIFIER MV1100CR MV1200CR MV6300CR MV8300CR PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE...
- Page 2 NOTES 1. Please read the entire attached documents carefully before using the device, and keep them for reference. 2. The power supply must match the demand of the device with reliable ground wire. 3. All covering signal should be complied with the demand of the device. 4.
-
Page 3: Front Panel Description
FEATURES 3 Mic and 3 Aux inputs 1 Line-output 70V, 100V PA-outputs, 4-16 ohm output MIC1 on the front panel with priority function Media player with blue tooth and radio Treble and bass control, Master control 7-segment level indicator Protection-circuits: over current, overheat, overload, short-circuit, turn on delay Screw terminals of 6 zone outputs FRONT PANEL DESCRIPTION 1. -
Page 4: Rear Panel Description
9. Chime Button Push this button to send a chime sound before broadcasting a notice. The chime input with priority, auto-mute other inputs except Mic 1. 10. Power, Fault And Level Indicator The Power Led lights when the power amplifier is turned on. The Fault Led lights means the power amplifier is faulty, such as: short-circuit, overheat, overload. -
Page 5: Technical Specifications
: push this key and release to play the previous song; push this key and hold it, enter the rewind. (7) Next/ : push this key and release to play the next song; push this key and hold it, enter the fast forward. (8) The USB connector. TECHNICAL SPECIFICATIONS MV1100CR MV1200CR MV6300CR MV8300CR MODEL... - Page 6 CONNECTERS...
- Page 7 INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT NOTES In no case ADM SRL shall be responsible for defects caused by accidental damage or improper use not in accordance with the user manual. ADM SRL declines any responsibility for damages caused to people or things due to or following the malfunction of its products.
- Page 8 Distributed by: ADM SRL Via Sandro Pertini, 55 56012 Calcinaia (PI) - ITALY Internet: www.masteraudionline.com E-mail: info@masteraudionline.com...
