Caple RI7302 Technical Manual

70/30 integrated fridge freezer
Hide thumbs Also See for RI7302:

Advertisement

Quick Links

Download this manual
RI7302
Caple 70/30 Integrated Fridge Freezer
Technical Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RI7302 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple RI7302

Summary of Contents for Caple RI7302

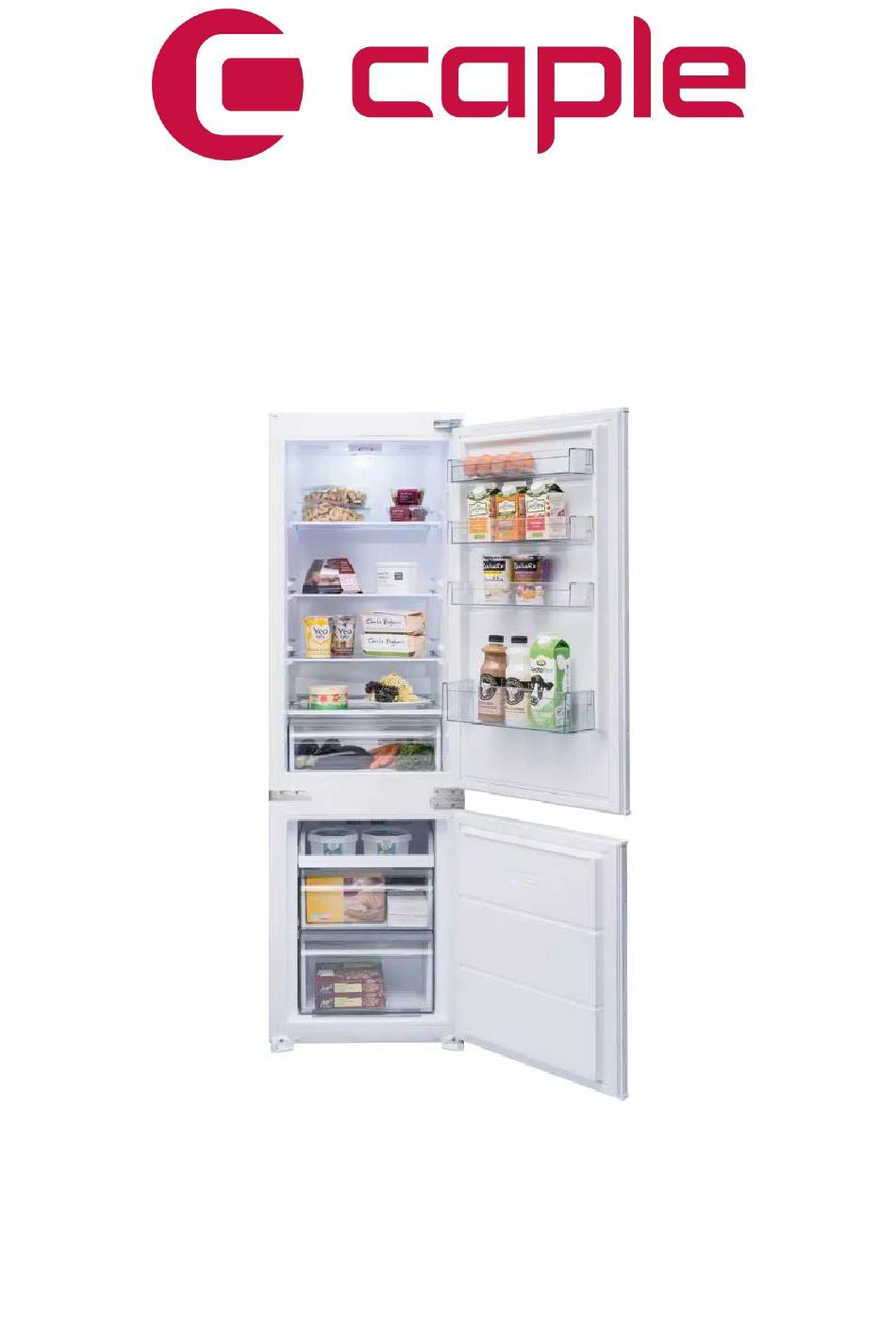

  • Page 1 RI7302 Caple 70/30 Integrated Fridge Freezer Technical Manual...
  • Page 2 RI7302 Caple 70/30 Integrated Fridge Freezer...
  • Page 3 RI7302 Caple 70/30 Integrated Fridge Freezer...
  • Page 4 RI7302 Caple 70/30 Integrated Fridge Freezer...
  • Page 5 RI7302 Caple 70/30 Integrated Fridge Freezer Item Part Number Description 37028246 BOTTOM/TOP HINGE SS/1400 BUILT HEX PIN 37032597 SCREW TT M5*16 YSB-F 42290855 DOOR H. SC. CAP LDPE (SNWWHITE) 42032778 MIDDLE HINGE SREW CAP(BIG)S.W.(NEW) 32031240 LAMBA SWITCH/2 POLE/BYZ/A 42283234 TUNNEL DRAIN PLUG RCYPP...
  • Page 6 RI7302 Caple 70/30 Integrated Fridge Freezer Item Part Number Description 35000743 SCREW 4.2*9.5 YSB-C 42189705 EVAPORATING TRAY/2500 ANK (NAT)-FR 37029499 DRYER(XH9,0.40MM,5.5GR)SINGLE 37047599 COMP. FIXING BRACKET (0,8) 32039243 COMPR.TG1112Y/3.5UF/QPS2C15/DRB17L61/JIA 37053889 COMP BASEMENT/2791 PROGRESIF 32036742 EARTH WIRE(PGYB)WASHER/0,50 20865033 VIDA TOPRAK.KABLO/TRT(37023688)FANTOM 37023688 SCREW TT M4*6 YSB-T-F...
  • Page 7 RI7302 Wiring Diagram...
  • Page 8 RI7302 Caple 70/30 Integrated Fridge Freezer Service Manual...

  • Page 9: Thermostat Setting

    RI7302 Service Manual Thermostat Setting It ensures that the temperature settings in the cooling and freezing compartments of your refrigerator are performed automatically. It may be set to any value ranging from 1 to 5. As you turn the thermostat setting knob from 1 to 5, the temperature decreases. To save energy in winter months, operate your refrigerator in a lower position.
  • Page 10 RI7302 Service Manual CONDENSER F EVAPORATOR HOT PIPE CAPILLARY SUCTION PIPE DRYER COMPRESSOR...

  • Page 11: Changing The Door Swing Direction To Right Hand

    RI7302 Service Manual Changing The Door Swing Direction to Right Hand 1- Unscrew the two screws fixing the top hinge (Pic-1) and remove the refrigerator door. (Pic-2) Picture-1 Picture-2 2- Unscrew the two screws fixing the middle hinge side bracked and remove it. (Pic-3) Picture-3 3- Uncrew the two screws fixing the middle hinge (Pic-4) and remove the freezer door.
  • Page 12 RI7302 Service Manual 4- Remove the bottom hinge pin (Pic-5) and insert it to the left side foot. (Pic-6) Picture-5 Picture-6 5- Unscrew the middle hinge side bracked on the left and remove it. (Pic-7) Remove the middle hinge screw caps (big) on the left side.
  • Page 13 RI7302 Service Manual 7- Remove the top hinge screw caps (big) on the left side (Pic-10) and insert them to the right side. (Pic-11) (You can find the new caps in the user manual bag) Picture-10 Picture-11 8- Unscrew the pin of the hinge from Hole...
  • Page 14 RI7302 Service Manual Replacement of Door Switch 1. Insert a screwdriver into the gap and 2. Disconnect the connectors. pull the door switch. And remove the door switch. Picture-1 Picture-2...
  • Page 15 RI7302 Service Manual No/Insufficient cooling Check the Inform supply customer voltage (220-240v) (220-240v) Is it ok? Check the voltage at Is the power compressor Is compressor consumption of terminals working? compressor (220-240v) normal? Is it ok? Is the thermostat There might...
  • Page 16 RI7302 Service Manual Excessive Cooling Is the thermostat Adjust the setting appropriate thermostat to season according to conditions? seasonal conditions. Is there any Is the icing at icing the whole of formation in back wall (on refrigerator serpentine)? section? Compressor pressure...
  • Page 17 RI7302 Service Manual Door/Gasket Adjustment Is the Product ground should be on under the a firm and flat unit is surface flat? Are the Adjust the feet adjustable properly feet in correct according to position? ground surface Is there any...
  • Page 18 RI7302 Service Manual Abnormal Noise Product should be Hayır Is the ground on a firm and flat under the unit is surface flat? Adjust the Are the feet adjustable properly feet in correct according position? to ground surface Pipes should not...

  • Page 19: Replacement Of Door Gasket

    RI7302 Service Manual Replacement of Door Gasket Pull the gasket towards starting from top right corner Slowly pull the rest of the gasket. Completely remove the gasket from door. Check the replacement gasket form Starting with upper right corner, press on the gasket until it fits to its place..
