Summary of Contents for Caple RIF1796

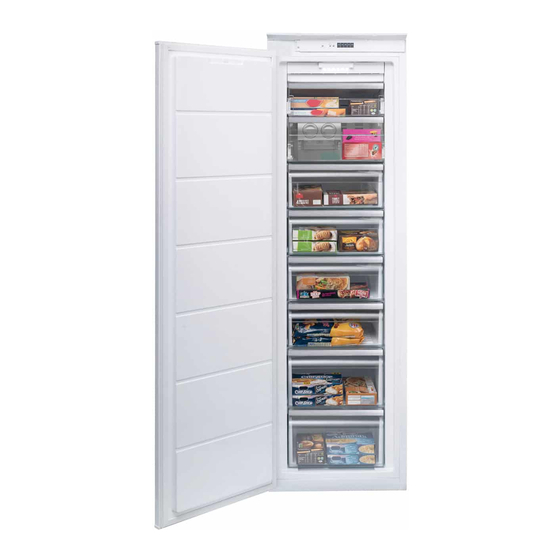

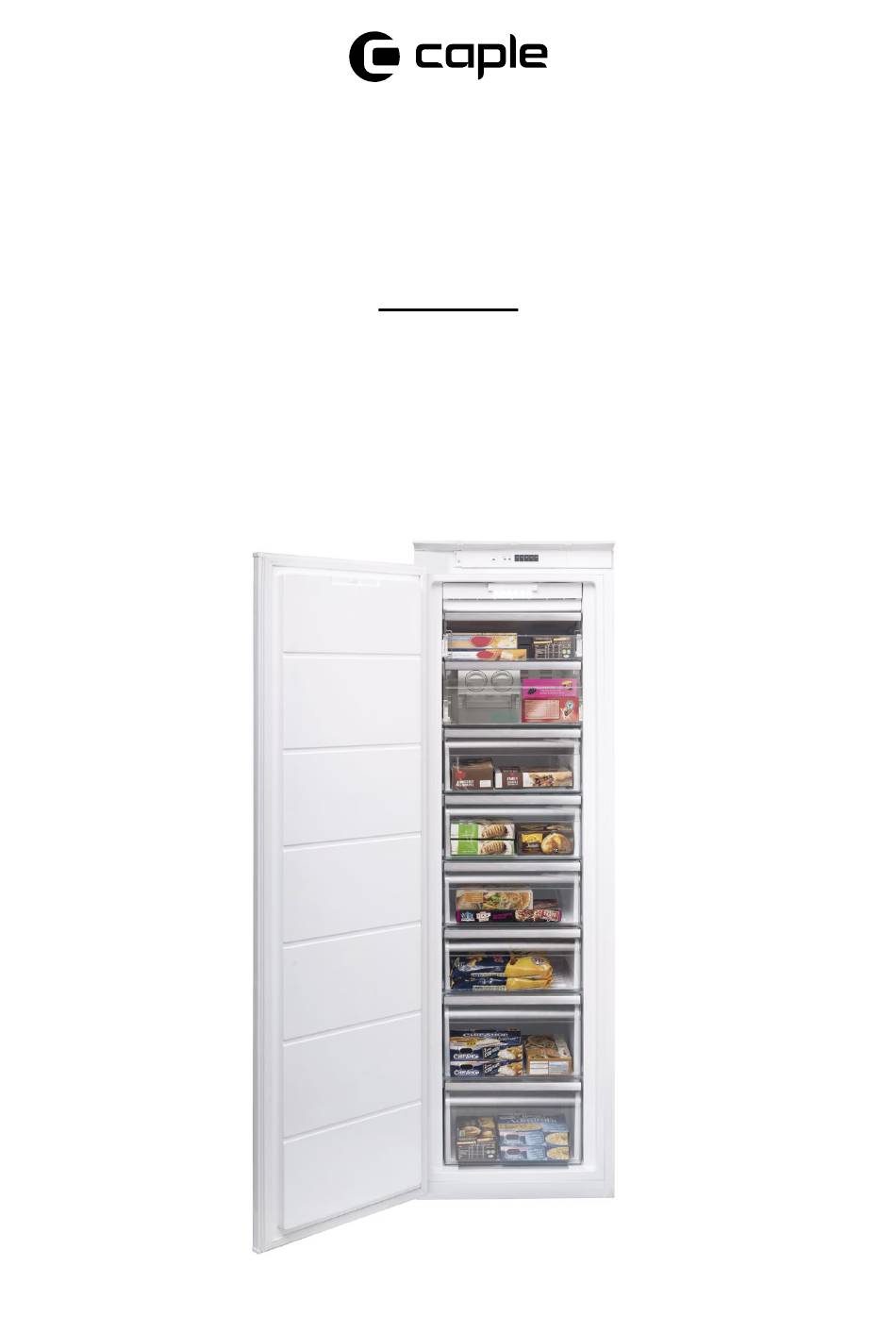

- Page 1 B u i l t - I n F r e e z e r I n s t r u c t i o n M a n u a l RIF1 7 96 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Electrical Connection Ventilation Requirements Product Overview Using The Appliance Operating Your Freezer Ice Machine Food Storage Cleaning And Maintenance Transport And Repositioning Troubleshooting Energy Saving Tips Caple Contact Details Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 3 They may only use it unsupervised if they have been shown how to use it in a safe manner. They must be able to recognise and understand the dangers of misuse. Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 4 T E C H N I C A L S A F E T Y : - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you.
- Page 5 - To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. - Multi-socket adapters and extension leads should not be used to connect the appliance to the mains electricity supply.
-
Page 6: Warnings
- During installation the appliance must be completely disconnected from the mains electricity supply. - Do not operate the appliance before it is fully installed. Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 7 - Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons.
- Page 8 If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
- Page 9 - If using the appliance to quickly cool drinks, do not leave bottles inside the freezer compartment for more than 1 hour, otherwise they could burst. Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 10 - Never use the door handles for lifting. - The appliance is heavy and could cause injury, it must be transported by two people. 10 Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 11 Operating the system correctly IMPORTANT Operating the system correctly Symbol ISO 7010 W021 Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials Warning; Risk of fire / flammable materials Instruction manual RiF1796 Please keep this instruction manual for future reference...
-
Page 12: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 13: Electrical Connection
3. Replace fuse cover. fuse in this type of plug, follow the steps below: the fuse cover and fuse. ement 13A fuse, ASTA approved to BS nto the fuse cover. use cover. Instruction manual RiF1796 Please keep this instruction manual for future reference... -
Page 14: Ventilation Requirements
N OT E : Installation instructions are supplied with the appliance in a separate document. Only the solid metal fixing bracket is included (part 1a) for installation. 14 Instruction manual RiF1796 Please keep this instruction manual for future reference... -
Page 15: Product Overview
This presentation is only for information about the parts of the appliance. Parts may vary 3. Freezer compartment drawers / freezer room cover * according to the appliance model. 4. Freezer compartment drawers 5. Ice matic * Instruction manual RiF1796 6. Ice tray * Please keep this instruction manual for future reference... -
Page 16: Using The Appliance
The coolant within the product needs time to settle after it has been transported and put into position, failure to do this will affect the cooling performance of your appliance. 16 Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 17 Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 18 D I S P L AY A N D C O N T R O L PA N E L 1. Temperature set button 2. Super Freeze mode LED 3. Alarm indicator LED 4. Temperature setting indicator 18 Instruction manual RiF1796 Please keep this instruction manual for future reference...
-
Page 19: Operating Your Freezer
During this mode if you press the temperature set button, the mode will be cancelled and the setting will be restore back to -16°C. Super freeze mode will be automatically cancelled after 24 hours or when the cooline sensor temperature drops beneath -32°C. Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 20 A M B I E N T T E M P E R AT U R E ° C Between 16 and 43 (°C) Between 16 and 38 (°C) Between 16 and 32 (°C) Between 16 and 32 (°C) 20 Instruction manual RiF1796 Please keep this instruction manual for future reference...
-
Page 21: Ice Machine
You can remove the icemaker to increase the available volume in the freezer compartment. You can remove the icemaker to increase the available volume in the freezer compartment. Instruction manual RiF1796 Please keep this instruction manual for future reference... -
Page 22: Food Storage
If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. 22 Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 23 The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 24 N OT E : Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. 24 Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 25 Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Add 10 % of sugar to the container Plum, cherry, raspberry Wash and hull the stems 8 - 12 Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 26 Original packaging may be Cheese - excluding used for short-term storage. In slices 6 - 8 white cheese Keep wrapped in foil for longer periods. Butter, margarine In its packaging 26 Instruction manual RiF1796 Please keep this instruction manual for future reference...
-
Page 27: Cleaning And Maintenance
Warning; Risk of fire / flammable materials CAUTION Injury or property damage risk CAUTION Injury or property damage risk IMPORTANT Operating the system correctly IMPORTANT Operating the system correctly Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 28 R E P L A C I N G L E D L I G H T I N G refrigerator and evaporates there. To replace any of the LEDs, please contact Caple service to arrange. This should only be • Make sure you have disconnected performed by a qualified electrician.
-
Page 29: Transport And Repositioning
› Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands/tape when re-positioning or transporting. › Always carry your appliance in the upright position. Instruction manual RiF1796 Please keep this instruction manual for future reference... -
Page 30: Troubleshooting
1 hour, call Caple service for assistance The product has been plugged has been interrupted for more after 1 hour, call Caple service in for the first time, or power than 1 hour. - Page 31 If the edges of freezer cabinet that the door joints contact are warm; especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. If humidity builds up inside the freezer. Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 32 › To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open). If the problem persists or more help is required, please contact our Caple service team on or via email 0117 938 7420 service@caple.co.uk...
-
Page 33: Energy Saving Tips
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed. 7. The door gasket must be clean and pliable. Replace gaskets if worn. Instruction manual RiF1796 Please keep this instruction manual for future reference... - Page 34 N OT E S : 34 Instruction manual RiF1796 Please keep this instruction manual for future reference...
- Page 35 N OT E S : Instruction manual RiF1796 Please keep this instruction manual for future reference...
-
Page 36: Caple Contact Details
1770 (mm) 1770 (mm) 1770 - 1778 (mm) 1770 - 1790 (mm) (1 x) (1 x) (2 x) (17 x) (4 x) (1 x) (4 x) (4 x) (4 x) 60 mm 60 mm 6 0 m 40 mm 40 mm 6 0 m min. - Page 37 (1 x) (1 x) (2 x) (1 x) (2 x) 90° (5x) (1 x)
- Page 38 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
