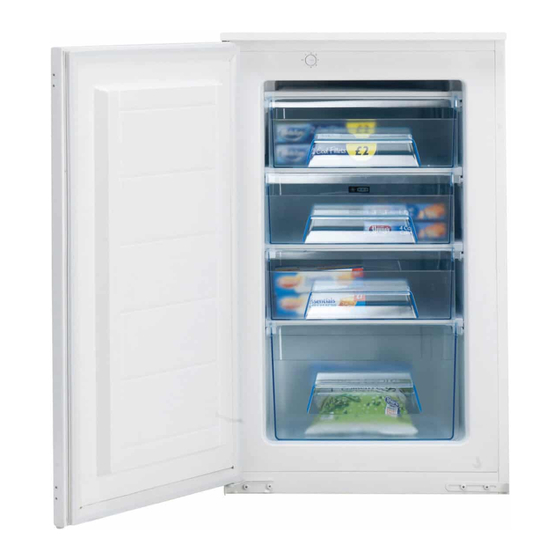

- Page 1 Instruction manual for in-column freezer Model code:RIF89 Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
- Page 2 European Safety Certificate Compliance Declaration The manufacturer assumes full responsibility for the compliance of products manufactured with relevant safety, health and environmental protection requirements set out in European Directives. Test reports are available for verification upon request. The manufacturer will present the quality certificate or manufacture license to a refrigerator dealer if so required.
- Page 3 Compression-type appliances which use flammable refrigerants shall be marked with the symbol “Caution: risk of fire”. Caution：risk of fire The height of the triangle in the symbol “Caution: risk of fire” shall be at least 15 mm. – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-
Page 4: Table Of Contents
Content Page Important! 1. Environmental Protection and Proper Disposal..2 It must be noted that a refrigeration system contains 2. Location..............2 refrigerants, which require specialized waste disposal. 3. Installation ..............2-3 Contact your local waste disposal center for proper 4. Rating Plate..............3 disposal of an old appliance and contact your local 5. -
Page 5: Environmental Protection And Proper Disposal
3.Installation 1.Environmental Protection and Proper Disposal a) Remove all packaging materials. b) Remove items in the refrigerator. Package materials c) Make sure to remove film and tape on the cabinet and the door. The appliance is packaged in a way to prevent damages during transportation. -
Page 6: Rating Plate
Any intervention of the refrigerating system should be fuse rating in conformity with the rating plate. conducted only by qualified Caple engineers. In case of nonconformity, consult the local service center or the dealer immediately. -
Page 7: Freezer Compartment
Turn temperature reg ulator counterclockwise to the lo west storage, select a medium setting. setting=lightest cooling; 4 Normally, when food requires a long period of stor age, (Turn the regulator counterclockwise to the most will select a high setting. power off the refrigerator, compressor will stop) Turn temperature regulator counter clockwise to the NOTE! highest setting=coldest setting;... -
Page 8: Ice & Ice Cream Making
Making ice cubes: If a heat exchanger, i.e. condenser, is mounted on the back of refrigerator, dust and lint should be removed regularly to enable efficient heat dissipation and avoid · Add water to ice tray to 3/4 of its volume , place it at the excessive power consumption. -
Page 9: Problem Diagnosis
the evaporator surface may get damaged. frequently; Please check: · Wipe off defrost water from time to time with a sponge. · The refriger ator/freezer co mpartment should stan d still for at least 12 hours after installation to stabilize the ·... -
Page 10: During A Power Interruption
15. Making A Service Call 1 Thermostat Servicing and repair should be conducted by qualified Caple engineers. The manufacturer is not 2 Drawer responsible for the risk of damages or injuries due to failure to comply with this provision and the warranty will be voided. - Page 11 Installation guide Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 12 Positioning and installing the appliance Once the appliance has been unpacked, check the main voltage is the same as that indicated on the rating plate. If the door opening direction is as required, contine with the installation. Otherwise, reverse the position of the hinges.
- Page 13 Sealing gasket Fill the gap on the non-hinged side with the sealing gasket, as shown in the image to the left.
- Page 14 Once the slider has been fitted to to the furniture door please add the decorative cover to cover the screw fixings. This simply clips into place. Tip: It can help if the door slider blocks are fitted after the sliders have been fully fixed to the furniture door and the covers cliped into place.
- Page 15 GRILL/SENSE600. This can be purchased from your retailer or www.caple.co.uk. To ensure the correct operation of the appliance it is important the top of the housing is not blocked off. The top of the cabinet needs to be vented into the room, the recommended size of the vent opening is 500mm x 40mm.
- Page 16 (mm) (mm) (mm) (mm) RI556/RI558 1776 550-560 1778-1785 RI735/RI737 RIR179/RIL179 1776 550-560 1778-1785 RIF178 1574 1574 550-560 1576-1580 1440 1440 550-560 1442-1449 1440 1440 550-560 1442-1449 RIF123 1221 550-560 1223-1230 RIL124 1221 550-560 1223-1230 1020 550-560 1022-1028 RIL891/RIF89 550-560 873-880...
- Page 17 12. Check that doors are properly aligned with the appliance body. 13. Replace the hinge caps. 14. Switch on the appliance as described in the relevant section of its operating instruc- tions. * This action applies to appliances with both refrigeration and freezer chambers. www.caple.co.uk...
