- Page 1 Quick Installation Guide TPL-402E TPL-402E2K 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. How to Install 3. LEDs and Buttons Troubleshooting Version 03.16.2011... -
Page 3: English
® Ÿ Additional HomePlug AV or IEEE 1901 compliant powerline adapter (e.g. TRENDnet TPL-303E, TPL-304E, TPL-305E, TPL-310AP, TPL-401E or another TPL-402E) (Note: This requirement is for the TPL-402E only. The TPL-402E2K already includes two TPL-402E adapters) Software Utility Requirements... -
Page 4: How To Install
2. How to Install Powerline Networking Solution 500Mbps Powerline AV Adapter Kit (TPL-402E) Internet Gigabit Powerline The example diagram shows a typical powerline network configuration in a home environment with 3 powerline adapters installed in different rooms. The orange line represents the powerline connectivity established through your home's electrical system and the blue lines represent Cat. - Page 5 Below is an example showing how to create a Powerline network using the TPL-402E/TPL-402E2K and your existing router to share Internet. 1. Plug a TPL-402E into an available power outlet. This TPL-402E should be located within the reach of the router's network cable. Outlet 2.
- Page 6 For detailed information regarding the the TPL-402E/TPL-402E2K, configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 7: Leds And Buttons

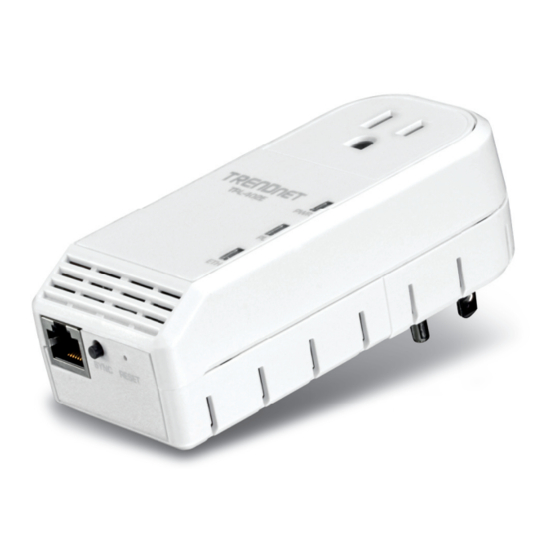

3. LEDs and Buttons PWR (Power) PL (Powerline) ETH (Gigabit Ethernet Link/Act) The Gigabit Ethernet/Network Port and Reset buttton are located at the bottom of the device. Reset Button Gigabit + Ethernet / Network Port Sync Note: 1. Please refer to the User's Guide on the TPL-402E/TPL-402E2K's User's Guide CD for detailed explanations of each LED and button. -
Page 8: Troubleshooting
Troubleshooting I have verified that my Powerline device is connected to my workstation, but I cannot detect other Powerline devices. What should I do? 1.Verify that you are using Cat. 5, Cat. 5e or Cat. 6 Ethernet network cables for each TPL-402E adapter. - Page 9 No, the TPL-402E should automatically establish connection once both units are reset to default settings. If you still encounter problems or have any questions regarding the TPL-402E/TPL-402E2K, please refer to the User's Guide included on the Utility CD-ROM or contact TRENDnet's Technical Support Department.
- Page 11 Description of Modes Erp (EuP) Operation: Standby Mode The EUT has no external mechanical switch and uses an internal program to control active and standby modes. Disconnect the Ethernet cables from the device Ethernet ports, and after 3 minutes, the device will enter standby mode.
