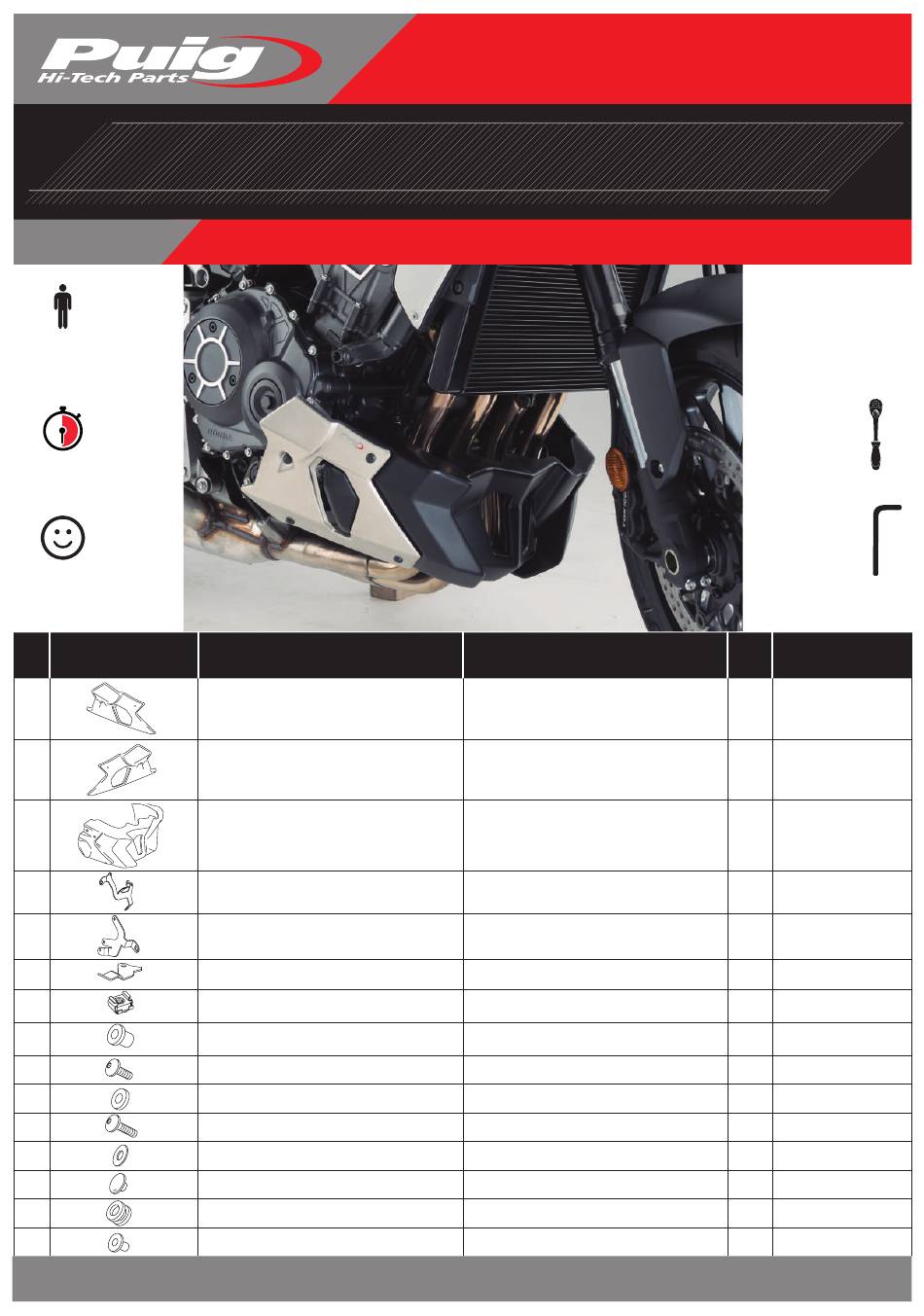

HON DA CB10 00R N EO SPO RT S CA FÉ '21 -
REF 21327
1 Person
30 min
EASY
ID
PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
DESCRIPCIÓN
Quilla derecha
Quilla izquierda
Quilla central
Soporte izquierdo (L)
Soporte superior derecho (R1)
Soporte inferior derecho (R2)
Tuerca enjaulada de aluminio M5
(se suministra montada)
Silentblock M5
Tornillo Allen M5x11 Ø11 ISO 7380
Arandela de goma Ø4,5 x Ø11 x 2mm
Tornillo Allen M5x16 Ø11 ISO 7380
Arandela de Nylon M5x1
Tapón M5 ISO 7380
Silentblock Ø12x Ø6 x 9
Casquillo con valona Ø12 x Ø6,8 x 7,3
www.puig.tv
www.puigusa.com
ENG INE S PO ILE R
DESCRIPTION
Right engine spoiler
Left engine spoiler
Central engine spoiler
Left support (L)
Upper right support (R1)
Lower right support (R2)
Luck nut M5
(supplied mounted)
M5 silentblock
M5x11 Ø11 ISO 7380 Allen Screw
Ø4,5 x Ø11 x 2mm rubber washer
M5x16 Ø11 ISO 7380 Allen Screw
M5x1 Nylon washer
M5 ISO 7380 screw cap
Ø12x Ø6 x 9 silentblock
Ø12 x Ø6.8 x 7,3 Bush with flange
Pg. 1/5
info@puig.tv
info@puigusa.com
Nº 8
ALLEN
Nº 3
Nº 4
QTY
REF
1
SOPEMB2P-8-9746
1
SOPEMB2P-8-9746
1
9746J/CM3
1
SOP3P2-L--21327
1
SOP3P2-R1-21327
1
SOP3P2-R2-21327
2
TUERCAJFM5-0373
4
SILENBTM5-046/1
4
TORNI-AI----520
4
ARAND-EPDM--722
6
TORNI-I7380-493
8
ARNV00000000245
8
TAPON--------85
2
AROPASACABLES-1
2
CASQUI-1A--750
V0.1022
