PUIG 21581 Mounting Instructions

HD SPORSTER RH1250 S' 22-
M O U

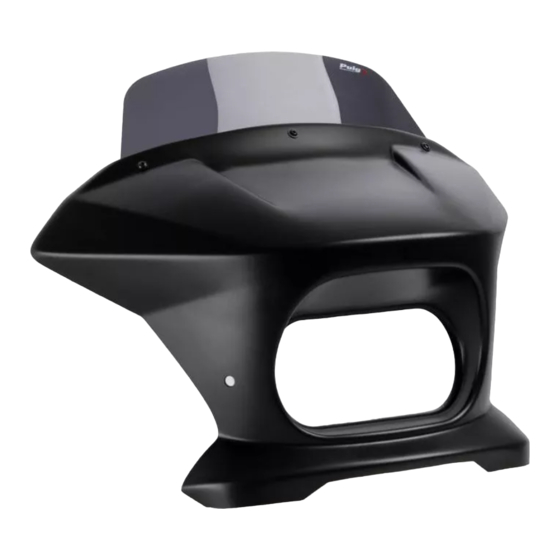

SEMIFAIRING FURY TOURING MODEL
R E F 2 5 1 1 8
1 Person
30 min
EASY
ID PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
*
Algunos componentes se suministran montados.
Some components are supplied assembled.
N T I N G
BLACK
DESCRIPCIÓN
Semicarenado
Cúpula touring
Soporte metálico derecho ( R )
Soporte metálico izquierdo ( L )
Casquillo Ø13xØ8,5 x15
Tornillo M8x45 DIN912 ( TX45 )
Silentblock M5
Arandela de goma Ø4,5 x Ø11 x 2mm
Tuerca autoblocante M5 DIN982
Silentblock Ø12xØ6x9
Casquillo con valona Ø12xØ6,8x7,3
Tornillo Allen M5x16 Ø11 ISO 7380
Tornillo Allen M5x20 Ø11 ISO 7380
Arandela de nylon M5
Tapón tornillo M5 ISO 7380
www.puig.tv
www.puigusa.com
I N S T R
R E F 2 5 1
DESCRIPTION
Semifairing
Touring screen
Right metal support ( R )
Left metal support ( L )
Ø13xØ8,5 x15 Arrowhead
M8x45 DIN912 (TX45) screw
M5 silentblock
Ø4,5 x Ø11 x 2mm Rubber washer
M5 DIN982 Lock nut
Ø12xØ6x9 Silentblock
Ø12xØ6,8x7,3 Bush with flange
M5x16 Ø11 ISO 7380 Allen screw
M5x20 Ø11 ISO 7380 Allen screw
M5 nylon washer
M5 ISO 7380 screw cap
Pg. 1/4
info@puigusa.com
U C T I O N
SEMIFAIRING FURY TOURING MODEL
8 8
MATT BLACK
QTY
1
1
1
1
4
4
2
3
1
2
2
3
2
4
5
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
ALLEN
Nº 2,3
TORX
T45
REF
10947N/JM3
10949W/H/F/NM3
SOPOR2P4-R21325
SOPOR2P4-L21325
TORNI-D912--906
SILENTBTM5-046/1
TUERCA-D982-746
AROPASACABLES-3
CASQUI-1A---750
TORNI-I7380-493
TORNIAI7380-387
ARNV00000000245
TAPON--------85
V0.05/23
