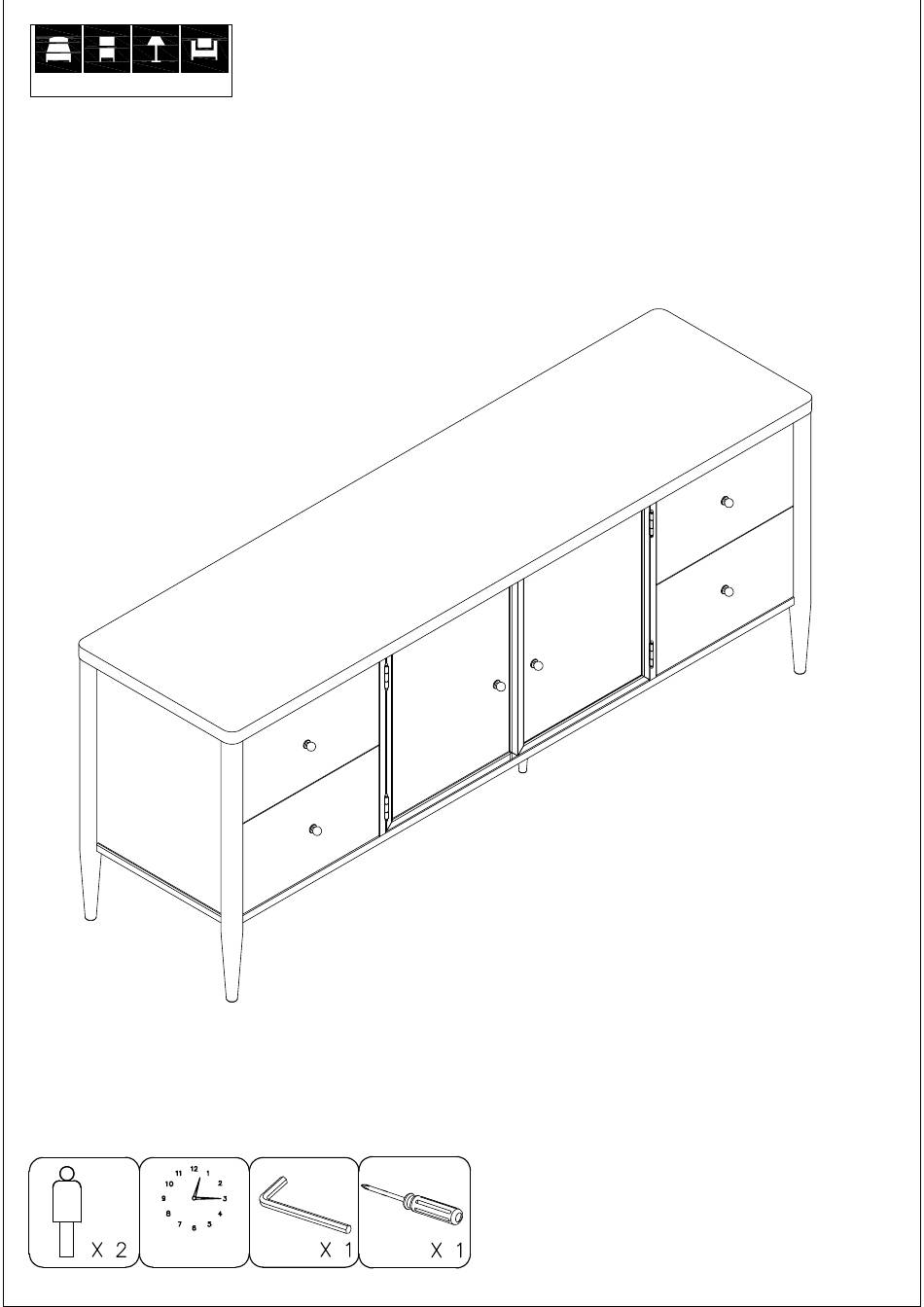

ASSEMBLY INSTRUCTIONS
L I V I N G
S P CES
A

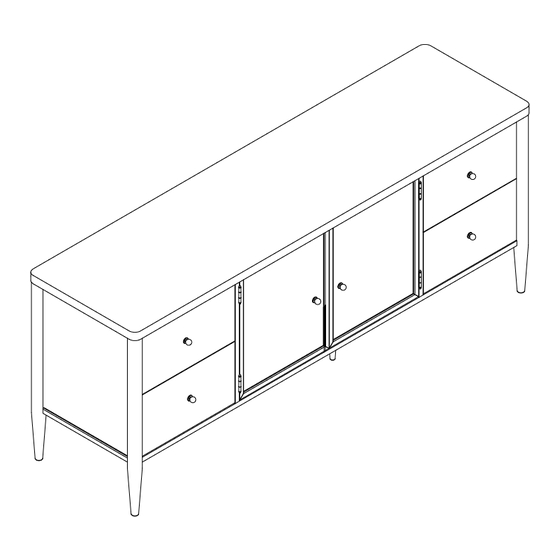

AUSTEN - 74 INCH MEDIA CONSOLE
ITEM NO : M2101-290
SKU:318153
15 min
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AUSTEN M2101-290 and is the answer not in the manual?

Questions and answers

Summary of Contents for Living Spaces AUSTEN M2101-290

  • Page 1 ASSEMBLY INSTRUCTIONS L I V I N G S P CES AUSTEN - 74 INCH MEDIA CONSOLE ITEM NO : M2101-290 SKU:318153 15 min...
  • Page 2: Cleaning Instructions

    IMAGE DESCRIPTION QTY SKU# PART 318153-A-B(BLACK) Cabinet 318153-B-B(BLACK) 318153-C-B(BLACK) Support Leg Hardware List 74 Inch Media Console PART SKU# IMAGE DESCRIPTION 318153-1(8) Bolts M4*Ø5/16*30mm Allen key M4 318153-2(1) Anti tipping kits 318153-3(1) Note: Screwdriver will be prepared by yourshelf. THE HARDWARE IS LOCATED IN THE PACKING ITEM NOTE: MUST TIGHTEN SCREWS PERIODIACLLY.
  • Page 3: Detail View

    DETAIL VIEW Removal of drawers and adjustable shelf STEP 1: * Remove the drawer glides out the media console. * Open the cabinet door and take out the adjustable shelf. SAFETY RELEASE TAB TAKE OUT THE TWO ACTIVE SHELVES SAFETY RELEASE TAB...
  • Page 4 Assembly of the leg frames. STEP 2 * Assemble the Right Leg (B) to media console top (A) by bolt (1). * Secrew the Support Leg(C) to the Bottom of the media console bySwiveling 1= 8Pcs STEP 3: Assembly of drawers and adiustable shelf * Assemble the drawers and adjustable shelf as the right instruction.
  • Page 5 STEP 4 Anti-tipping kit installation. Anti-tipping kit is located at backside Adjust leveler =1 pc That's it ! You've finished assembling your item. Thank you!
