TRENDnet TPE-104S Specifications

FEATURES
• Converts non-PoE devices with Power over Ethernet support
• 1 x 10/100Mbps PoE Auto-MDIX Data In port
• 1 x 10/100Mbps Auto-MDIX Data Out port
• Power out port
• 1 x 33cm (13") jumper cable with a 2.0mm connection to the splitter and 2.0mm pin connection to powered device
• 1 x 33cm (13") jumper cable with a 2.0mm connection to the splitter and 2.5mm pin connection to powered device
• For a product with a 1mm pin power connection, use TRENDnet's TV-JC35 (3.5mm to 1mm Jumper Cable-sold separately)
• Power LED indicator
• Install non-PoE devices where a power outlet is not available
• Reduce installation and network equipment costs
• Safeguards network device with short circuit protection
• Adjustable output DIP switch 5V, 7.5V, 9V, and 12V adjustable output
• Auto-sensing power drawn from 802.3af power source equipment(PSE) devices
• Supplies power up to 15.4 Watts
• Light weight and compact size
• Wall mounting points
• 3-year limited warranty
Power over Ethernet (PoE) Splitter
TPE-104S (v1.0R)

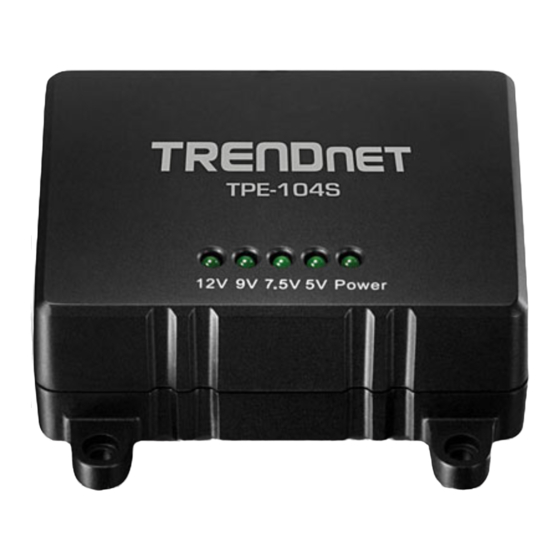

The Power over Ethernet Splitter, model TPE-104S, is used to install
non-PoE devices in remote locations. It splits a networked PoE signal
into separate power and data sources.
Run an Ethernet cable from a PoE switch (or injector) for distances
up to 100 meters and then split the PoE signal into separate data and
power sources in order to network a non-PoE device.
No need to install non-PoE devices near a power outlet. Save
installation and equipment cost when installing access points, IP
cameras, and more in a remote location. A handy toggle switch
adjusts output power to 5V, 7.5V, 9V, or 12V in order to match
non-PoE device power requirements. This compact splitter safeguards
valuable network equipment with short circuit protection. Quickly
create an integrated PoE and non-PoE network.
TPE-104S
rev: 12.27.2011
