Page 1 User’s Manual TDLS8200 Probe Type Tunable Diode Laser Spectrometer IM 11Y01D03-01EN IM 11Y01D03-01EN 11th Edition...
Page 2 Thank you for purchasing the TDLS 8200 Probe Type Tunable Diode Laser Spectrometer. Please read the following respective documents before installing and using the TDLS8200. When using the YH8000 HMI unit, be sure to read the dedicated instruction manual (IM 11Y01D10-01EN).
Page 3: Appearance And Accessories
• No part of the user’s manuals may be transferred or reproduced without prior written consent from YOKOGAWA. • YOKOGAWA reserves the right to make improvements in the user’s manuals and product at any time, without notice or obligation. • If you have any questions, or you find mistakes or omissions in the user’s manuals, please contact our sales representative or your local distributor.
Page 4: Safety Precautions
The product is provided on an “as is” basis. YOKOGAWA shall have neither liability nor responsibility to any person or entity with respect to any direct or indirect loss or damage arising from using the product or any defect of the product that YOKOGAWA cannot predict in advance. n Safety Precautions for Explosion Protected Type Instrument Specified types of TDLS8200 is designed to protect against explosion.
Page 5: About The Product
Handle with care. • Components that can be damaged by static electricity are used in the TDLS8200 probe type tunable diode laser spectrometer. Take protective measures against static electricity when performing maintenance and inspection and use conductive packing material for shipping replacement components.
Page 6: Electrostatic Discharge
CAUTION Do not use an abrasive or organic solvent in cleaning the instrument. CAUTION Please turn off the power to the TDLS8200 before remove the analyzer from process flange. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 7: Replacement Of Battery
Replacement of battery The battery (CR2050 type) on the CPU board in TDLS8200 cannot be installed on site because it must be mounted at the factory. If it needs replacing, contact a Yokogawa service center.
Page 8: Trademark Notices
Laser light is emitted from the laser unit right after an analyzer is powered on. After attaching TDLS8200 unit to a process flange, power on an analyzer while laser light is not emitted outside measurement process.
Page 9: Identification Tag
Batteries are included in this product. Batteries incorporated into this product cannot be removed by yourself. Dispose them together with this product. When you dispose this product in the EU and UK, contact your local Yokogawa office in the EU or Do not dispose them as domestic household waste.
Page 10: Table Of Contents
Constructing Process Flanges (Probe type, Reflect type) ..... 2-4 2.1.3 Probe direction (only Probe type) ............2-6 2.1.4 Installation of TDLS8200 to the process flange ......2-7 2.1.5 Installation of Analyzer part and probe on to the process flange (only Probe type) ..................2-7 2.1.6...
Page 11 Toc-2 2.5.2 Optical axis adjustment using alignment service tool (initial adjustment) 2-36 2.5.3 Installation (Step 2) ................2-38 2.5.4 Wiring ....................2-38 2.5.5 Optical axis adjustment (final adjustment) ........2-38 2.5.6 Piping ....................2-41 Startup ....................... 3-1 3.1 Connecting the HART Configuration Tool ............. 3-1 3.1.1 Installing a DD File ................
Page 12 Mounting on a Calibration Cell ..............6-18 6.3.1 Preparation ..................6-18 6.3.2 Preparation Procedure ..............6-19 6.3.3 Performing Calibration and Offline Validation ........6-22 6.3.4 Returning the TDLS8200 to the Process ......... 6-22 6.4 Offline Validation ..................... 6-23 6.4.1 Preparation ..................6-24 6.4.2 Configuration ..................6-24 6.4.3 Execution ..................
Page 13 6.11 Loop Check ...................... 6-40 6.12 Alarm History ....................6-41 6.13 Access to stored data in TDLS8200 .............. 6-42 Troubleshooting ..................7-1 Fault Display and Handling ................7-1 Warning Display and Handling ................ 7-2 Handling Degraded Laser Transmission ............7-5 Process Window Replacement ............... 7-5 7.4.1...
Page 14 Toc-5 Appendix 1 What is an Analysis Period? ..........App.1-1 Appendix 2 Explosion Protected Type Instrument ......App.2-1 Appendix 3 General View of HART DD ..........App.3-1 Appendix 4 Safety Instrumented System Installation ......App.4-1 Customer Maintenance Parts List ........CMPL 11Y01D03-01EN Customer Maintenance Parts List ........CMPL 11Y01D03-02EN Customer Maintenance Parts List ........CMPL 11Y01D03-03EN Customer Maintenance Parts List ........CMPL 11Y01D02-21EN Revision Information ....................i IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 15 Blank Page...
Page 16: Overview

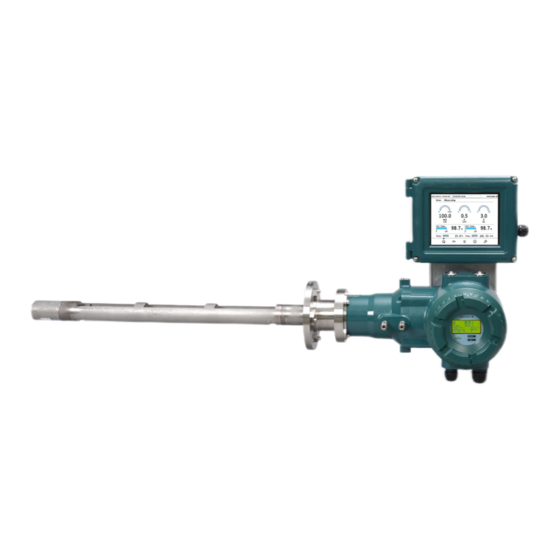

<1. Overview> Overview Yokogawa’s TDLS 8200 is a laser gas analyzer that measures the concentration of gases (O CO, CH NH3, HCl) in various processes such as petrochemical, power generation. Since it can be inserted directly into the duct, the sampling equipment is unnecessary and installation cost and maintenance cost can be reduced.
Page 17: System Configuration
<1. Overview> 1.1 System configuration l Standard System Configuration Measured gas Purge gas for Optic 24 V DC +/-10% Purge gas for Reflector Purge gas for validation area Purge gas for Process window l System Configuration with YH8000 HMI Unit and Validation gas line Measured gas Purge gas for Optic 24 V DC +/-10% Check gas Purge gas for Reflector for validation...
Page 18 <1. Overview> l Multi Analyzer Configuration with Remote HMI, connection example of 4 analyzers Measured gas 24 V DC +/-10% Measured gas 24 V DC +/-10% Measured gas 24 V DC +/-10% Measured gas 24 V DC +/-10% 24V DC±10% Switching HUB YH8000 HMI Unit Note: If power supply is 100 to 240 V AC, power supply must be supplied by customer. l System Configuration of Reflect type (-REF) Measured gas 24 V DC +/-10%...
Page 19: Name And Function Of Each Part
<1. Overview> 1.2 Name and Function of Each Part TDLS8200 is composed of analyzer part and probe part. 1.2.1 TDLS8200 analyzer part Name plate Optical purge port External earth Lock screw *2 terminal Validation gas inlet *3 Horizontal optical axis adjuster knob *1 Process purge inlet Reflector purge inlet Vertical optical axis adjuster knob *1 Type of knob varies depending on each specification.
Page 20 Service staff use these switches for maintenance. Leave them all OFF. The TDLS8200 is equipped with an overvoltage protection element to prevent failure caused by surges and other overvoltage. This element may hinder the correct measurement of the insulation resistance of the power line during insulation tests. To disable this element, disconnect the jumper.
Page 21: Starting Screen
Software version LCD starting screen Normal screen After the starting screen, a Warm-up screen appears and the following screen is displayed. The presentation of concentration values varies depending on the specifications of the TDLS8200. Hart communication icon LCD normal screen (for single-gas measuring specifications) 1st line...
Page 22 SCU: 33.4ºC On the analyzer part of the TDLS8200, one Laser Diode is mounted when the 1 laser specification is selected. Two Laser Diodes are mounted for the 2 laser specification. Each Laser Diode hereafter is referred to as LD1 and LD2.
Page 23: Spectrum Screen
In the case of explosionproof type, oxygen concentration shall not exceed that found in normal air, typically 21%. Please consult with Yokogawa if the measuring range for your measurement gas is outside of the above ranges. Process length *1 (Reflect type): 0.25 to 0.51 m (20 inch)
Page 24 (2 points), digital communication (HART, Modbus/TCP) are outside the scope of the certification. RoHS conformity standards: EN IEC 63000:2018* *: For only TDLS8200-G1, -G2, -S1 Information of the WEEE Directive This product is purposely designed to be used in a large scale fixed installations only and, therefore, is out of scope of the WEEE Directive.
Page 25 15 V DC or higher (at 20 mA DC) 26 V DC or less (at 0 mA DC) Note: This voltage is generated between the AI terminals of TDLS8200. When calculating the minimum operating voltage for transmitters, consider allowing margins for voltage drop in external wiring.
Page 26 When the process dust load is high, please consult with Yokogawa. Note: When using TDLS8200 as CE, UKCA marking compliance product, it has following limitation. General purpose model (-G1, -G2): The upper limit of the measurement gas pressure is 50kPa in gauge pressure.
Page 27: Hazardous Area Classifications
This active input value can be used in real time by the analyzer to provide a pressure. l Hazardous area classifications: Division 1, Zone 1: Explosionproof TDLS8200-D1 (FM Approval for US) Division system: Type pf protection: Explosion proof; Class I, Division 1, Groups A, B, C, D, T6 Dust-Ignitionproof; Class II/III, Division 1, Groups E, F, G T6...
Page 28: Specification
Enclosure rating: IP66 (In Accordance with EN 60529) Applicable standards: EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-28:2015, EN 60079-31:2014 TDLS8200-K1 (Korea Ex) Type of protection: Ex db IIC T6 Gb Ex tb IIIC T85ºC Db Enclosure rating: IP66 (In Accordance with IEC 60529) Applicable standards: Notice of Ministry of Labor No.
Page 29: Model And Codes
Cable gland for Japan Ex (Cable O.D. 10-16mm, G3/4) 3 pcs For Japan Ex model (TDLS8200-J1), specified cable glands shall be attached to each cable entry for wiring. Select one cable gland out of three types: (/JB1, /JB2, or /JB3). If you need, specify (/JA1) as well. For detailed information, refer to Japanese General Specifications.
Page 30 ≥ 40 % or H ≥ 20 % as coexisting gas components, please contact YOKOGAWA. When 1st Gas Parameter “-A1” or “-L1” is specified, only “-NN” can be selected for 2nd Gas Parameter. When Probe length “-REF” (Reflect type) is specified, for Flange only “-U2”,“-U3”,“-U4”,“-D5”,“-D8”,“-J5”,“-J8” can be selected.
Page 31: External Dimensions
1-16 <1. Overview> 1.5 External Dimensions TDLS8200 Probe type Tunable Diode Laser Spectrometer, Standard (Temperature: “-L”) See page 1-19 for Reflect type, page 1-21 for Flowcell type. Unit: mm Optical purge (IN): 1/4NPT or Rc1/4 Optical purge (OUT): 1/4NPT or Rc1/4) Cable entry 1/2NPT or M20x1.5...
Page 32: Maintenance Space
Unit: mm 500 *1 150 (450) *2 *1: When installing YH8000 on TDLS8200 with /M, it is necessary to secure this space. *2: When connecting the calibration cell, it is necessary to secure this space. If install or uninstall of probe, need the additional space depend on probe length.
Page 33 1-18 <1. Overview> TDLS8200 Probe type Tunable Diode Laser Spectrometer Mid temperature, (Temperature: “-M”) See page 1-19 for Reflect type. Unit: mm 116 39 Flange Ø65 　　 Flange 1000 1500 4-Ø19 152.4 ANSI Class150-3-RF 8-Ø19 190.5 ANSI Class150-4-RF 8-Ø18 DIN PN16-DN80-D 8-Ø18...
Page 34 1-19 <1. Overview> n TDLS8200 Probe type Tunable Diode Laser Spectrometer, Reflect type (Probe length: “-REF”) Process window purge (IN) x2 Unit: mm Process window purge (IN) x2 1/4NPT or Rc1/4 1/4NPT or Rc1/4 Reflector purge (IN) Reflector flange Assy (*1) 1/4NPT or Rc1/4 (with adapter) Alignment flange Assy (*1)
Page 35 1-20 <1. Overview> Alignment Flange A (variable) Unit: mm Purge port (IN) x2 Q - h 1/4NPT or Rc1/4 ØC Ø61.7 ØD Analyzer side Process side Hole Outside Hole QTY Hole Thickness Distance Purge Flange code P.C.D dia. port -U2 ANSI CLASS150-2-RF (Eq.) 120.7 19.5 1/4NPT...
Page 36 TDLS8200 Probe type Tunable Diode Laser Spectrometer, Flowcell type (Probe length: “-EXT”) For applications where the TDLS8000, TDLS8100 or TDLS8200 could not be installed or inserted due to the process size, etc., a sampling system can be constructed by replacing the probe part of the TDLS8200 with a flowcell part.
Page 37 1-22 <1. Overview> Wall bracket for Flowcell type (Option code: /W) Unit: mm 34.5 4-R6.5 188 244 4-R5.5 19.5 4-R9 < left side view > 6-Ø10 to Ø11.5 or 6-M10 ±0.2 ±0.2 ±0.4 ±0.4 ±0.2 390.4 ±0.2 ±0.5 < Hole dimensions for wall mounting > Maintenance space Same as the standard probe on page 1-17 .
Page 38: Calibration Cell
1-23 <1. Overview> Calibration Cell Part number: K9777ZA Unit: mm NPT 1/4 Part number: K9777ZK, K9777ZL Unit: mm IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 39 Blank Page...
Page 40: Installation, Wiring, Optical Axis Adjustment, And Piping
After the installation, confirm the intensity (transmittance) of the received light signal. Adjust the optical axis as necessary. Install TDLS8200 in a location with sufficiently wide work area. Optical module Flange...
Page 41: Installation Conditions
Install the product in a location that meets the conditions indicated in “1.3 Specifications”. Note the following points. • Process window purge protects the TDLS8200 from the heat, dust, and corrosive elements of the process gas. Be sure to run the process window purge gas during processing. The process window purge gas flow rate varies depending on the process gas conditions.
Page 42: Process Gas Temperature
Process flow rate Install TDLS8200 at a location with a flow rate of 1 m/s or above. Flow rate of 5 m/sec. or above secures more stable measurement. Install TDLS8200 at a location with minimum fluctuation of flow rate, otherwise it may result in the deviation of the measurement result.
Page 43: Constructing Process Flanges (Probe Type, Reflect Type)
Figure 2.2 and Figure 2.3 show examples of welding reinforcing plates. Secure the necessary strength for installing the TDLS8200 at the customers’ own risk. Reinforcing plate (welded) Approx. 10 mm thick steel plate (welded)
Page 44 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> l Process flange reinforcement construction in a heating furnace (example) Weld one side of the L-angle, as shown below, to the process nozzle, vertically and horizontally, and weld the other side to the heater frame that is constructed on the furnace. This prevents deflection of the furnace wall.
Page 45: Probe Direction (Only Probe Type)
Side view Figure 2.6 Minimum allowable opening 2.1.3 Probe direction (only Probe type) To introduce process gas to TDLS8200 probe, install TDLS8200 so that the probe openings can face downstream of process gas flow. Flow direction of process gas Openings (should face toward downstream) Figure 2.7...
Page 46: Installation Of Tdls8200 To The Process Flange
2.1.5 Installation of Analyzer part and probe on to the process flange (only Probe type) TDLS8200 analyzer part and probe can be separated and be installed on to the process flange in the following steps. For further information on each part, see “1.1 System configuration” and “1.5 External Dimensions”.
Page 47 There is an O-ring between the probe and the analyzer . Be careful not to lose or damage the O-ring when detaching them. n Mounting probe part on to the process flange TDLS8200 analyzer part and probe part can be detached and be mounted separately onto the process flange. See “1.1 System configuration” and “1.5 External Dimensions”. IM 11Y01D03-01EN...
Page 48 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> n Attaching probe part to the Process Flange (1) Insert a gasket between the process flange and flange on the probe part. (2) Pass the bolts through holes on the probe flange. Fasten the bolts with nuts onto the process flange.
Page 49 2-10 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> n Installation of the analyzer part CAUTION The process window is where the laser beam passes through. Be careful not to damage or stain the window during installation. After mounting a probe part to the process flange, install the analyzer part according to the following procedure.
Page 50: Installation Of Flowcell Type
2.1.6 Installation of Flowcell type Installation of the TDLS8200 Flowcell type (-EXT) is basically wall mounting. Mount it on the wall using the bracket on the analyzer side and the bracket on the Flowcell side. See “1.5 External Dimensions” for wall mounting hole dimensions.
Page 51 2-12 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> CAUTION When attaching a thermocouple to the flow cell, the insertion length of the thermocouple should be 32 to 37 mm (see Figure 2.14). Out of this dimension, the thermocouple may contact the retro- reflector and damage it.
Page 52: Wiring
• Rotate the cover slowly and carefully to remove or install the cover. Cover Lock screw Hex wrench Figure 2.15 Open/Close of cover CAUTION Never turn on the power to the TDLS8200 or the devices connected to the TDLS8200 until all wiring is complete. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 53: Wiring Procedure
For ANSI 1/2NPT, 3/4NPT(F): A or N For ISO M20x1.5, M25x1.5: M Figure 2.16 Inscribed thread identification Attach conduits and cable glands with the appropriate screw size to the TDLS8200 cable entries. (3/4NPT or M25) Cable entry 1 Cable entry 2 Cable entry 4...
Page 54 Be careful not to connect the power supply wires to the incorrect locations or reverse the polarity. In particular, incorrectly connecting the power supply terminals (PWR, VO[HMI]) or solenoid valve control output terminals (SV-1, 2) can damage the TDLS8200 or the devices connected to the TDLS8200.
Page 55 2-16 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> Table 2.1 Terminals and functions Terminal Terminal Function block name AO-1+ Analog output 1 (4-20 mA)/HART communication port AO-1- AO-2+ Analog output 2 (4-20 mA) AO-2- AO-3+ Analog output 3 (4-20 mA) AO-3- AO-4+ Analog output 4 (4-20 mA)
Page 56: Connecting The Power Cable And Grounding
CAUTION Connect the power supply wires to the correct locations and don’t reverse polarity. Incorrectly connecting “PWR” the power supply can cause the TDLS8200 to malfunction. Use two-core or three-core shielded cable to wire the power supply. For ground wiring, use the internal ground terminal or external ground terminal. If you want to use the internal ground terminal, use a three-core power cable.
Page 57: Connecting To Temperature And Pressure Transmitters
For analog input settings, see “4.3 Analog Input Settings”. Connection Preparation To supply power to the transmitters from the TDLS8200, set the switch inside the analyzer part to Active AI. To supply power externally, set to Passive AI. If you want to connect to a 4-wire system pressure meter or thermometer, set to Passive AI.
Page 58 • For the cable type to use, see page 2-16 “n Types of Wiring and Cabling”. • Be sure to ground the cable shield on the TDLS8200 side and on the other side. • When supplying power to the transmitters from the TDLS8200, take into account the drop in the transmitter supply voltage due to wiring resistance and the like.
Page 59: Wiring Analog Outputs (Ao)
• For the cable type to use, see page 2-16 “n Types of Wiring and Cabling”. • Be sure to ground the cable shield on the TDLS8200 side. • For each output, keep the load resistance including the wiring resistance 550 Ω or less.
Page 60: Wiring Digital Outputs
• For the cable type to use, see page 2-16 “n Types of Wiring and Cabling” • Be sure to ground the cable shield on the TDLS8200 side and on the other side. • The contact rating is 24 V DC 1 A. Connect a load (e.g., indicator lamp, annunciator) that will not cause these values to be exceeded.
Page 61: Wiring Digital Inputs
• For the cable type to use, see page 2-16 “n Types of Wiring and Cabling”. • Be sure to ground the cable shield on the TDLS8200 side and on the other side. • The open and closed levels of the digital inputs are identified by the resistance seen from the TDLS8200 side.
Page 62: Wiring Solenoid Valve Control Outputs
• For the cable type to use, page 2-16 “n Types of Wiring and Cabling”. • Be sure to ground the cable shield on the TDLS8200 side and on the other side. CAUTION • The output rating is +24 V DC 500 mA max. Check that the solenoid valves that you want to use do not exceed these values before connecting them.
Page 63: Connecting An Ethernet Cable
When connecting the TDLS8200 to a network, manage the network appropriately. If you want to connect the TDLS8200 to an YH8000 (HMI unit) through an Ethernet hub or to an external device through Modbus/TCP communication, you will need to use an Ethernet cable.
Page 64 Finally, check that the plug has been crimped on properly by testing the connection with a LAN cable tester. (5) Insert the RJ45 connector into the TDLS8200 Ethernet port and the round crimp-on terminal at the end of the shielded wire to the functional ground terminal (M4 screw) inside.
Page 65: Optical Axis Adjustment
When wiring is complete, turn on the power, and adjust the optical axis as necessary. CAUTION The TDLS8200 is a Class 1 laser product. As such, the laser level of the product is safe to the eyes, but do not intentionally look at the laser light source. The TDLS8200 laser unit emits laser beam from the analyzer part as soon as the power is turned on.
Page 66 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> n Optical Axis Adjustment As shown in Figure 2.20, there are some optical axis adjustment knobs on TDLS8200. Their position varies depending on the specification of each equipment. Unused knobs are sealed with stickers.
Page 67: Piping
After wiring and optical axis adjustment are complete, connect the pipes for the purge gas. After piping is complete, to keep the TDLS8200 process window area clean, we recommend that you let the purge gas flow until the beginning of operation.
Page 68 2-29 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> Optical area Validation area Process window, Reflector purge area Figure 2.21 Purge position (Probe type) Optical area Validation area Chamber area Figure 2.22 Purge position (Flowcell type) Optical area Validation area Process window purge area Reflector purge area Figure 2.23 Purge position (Reflect type) CAUTION...
Page 69 2-30 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> (3) Purge gas flow rates Feed purge gases with the following purge flow rates. • Optical module area: general purpose: 2 to 20L/min (Application dependent) Explosionproof: 100 to 200mL/min (not exceeding 10 kPa at the inlet) * Not more than 10 kPa at the inlet for explosionproof.
Page 70: Purge Gas Piping
2-31 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> 2.4.1 Purge Gas Piping Purge Gas Piping for Probe type (1) When not using the online validation function If the installation into the process is in situ and the validation function is not used, connect the piping as shown in Figure 2.24. Purge gas for Optic Purge gas for Reflector Purge gas for validation area...
Page 71 2-32 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> n Purge Gas Piping (Sampling) for Flowcell type (-EXT) (1) When not using the online validation function For applications that use Flowcell types and do not use the online validation function, pipe as shown in Figure 2.26. Optical purge Process gas Chamber purge Exhaust of chamber purge Exhaust of process gas...
Page 72: Optical Area Purge Of Zone 1/Div. 1/Flameproof "D
CAUTION For TDLS8200 flameproof, excess flow rate for optical area may cause damages on internal optical components. WARNING For TDLS8200 flameproof, pressure at the inlet for optical area shall not exceed 10 kPa. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 73: Procedure For Using A Reflect Type
2-34 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> 2.5 Procedure for using a Reflect type The following describes the installation, optical axis adjustment, wiring, and purge gas piping for Reflect type (-REF) in the order of work. First, complete the first part of “2.1 Installation” through section 2.1.2 before proceeding with the work in this section.
Page 74 2-35 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> Installation of alignment flange on process flange (1) Insert a gasket between the alignment flange and the process flange. (2) Pass the mounting bolts through the mounting holes of the alignment flange and attach them to the process flange with nuts. (At this time, ensure that they do not loosen or fall off.) Follow the same procedure to separate the reflector from the reflector flange.
Page 75: Optical Axis Adjustment Using Alignment Service Tool (Initial Adjustment)
2-36 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> 2.5.2 Optical axis adjustment using alignment service tool (initial adjustment) Adjust the optical axis with the angle adjustment nut on the alignment flange so that the flanges installed opposite each other are parallel. Follow the procedure described below. If you do not use the alignment service tool, proceed to “2.2 Wiring”.
Page 76 Removal of alignment service tool After the optical axis adjustment is completed, remove the alignment service tool in the reverse order of installation. NOTE Contact YOKOGAWA for the alignment service tools. Alignment service tool Process window Visible laser Alignment flange...
Page 77: Installation (Step 2)
• Carefully install the analyzer section, avoiding damage to the O-ring or falling off during assembly. 2.5.4 Wiring After installation is complete, wire the TDLS8200 to the external equipment. Wire according to “2.2 Wiring”. 2.5.5 Optical axis adjustment (final adjustment) After the wiring is complete, turn on the power and adjust the optical axis.
Page 78 After turning on the power, check the transmittance of LD1 and LD2 (only LD1 for 1 laser specification) . Fine-tune the optical axis using the optical axis adjustment knob on the TDLS8200 to maximize transmittance according to “2.3 Optical Axis Adjustment”.
Page 79 2-40 <2. Installation, Wiring, Optical Axis Adjustment, and Piping> (2) Step 2: A djustment in Y-axis direction (1 to 1.5 turns clockwise and counterclockwise) See step (1) and check the transmittance while rotating the Y-axis clockwise 1 to 1.5 turns instead of the X-axis. Also, adjust counterclockwise in the same way Finally, return the optical axis adjustment knob to its initial position.
Page 80: Piping
Initial position Initial position Initial position Figure 2.39 Final adjustment (Y-axis counterclockwise fine adjustment) NOTE If transmittance ultimately fails to improve, contact YOKOGAWA. 2.5.6 Piping After optical axis adjustment is completed, perform piping for purge gas according to “2.4 Piping”. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 81 Blank Page...
Page 82: Startup
1.02.01 or 3.09.21 or later later If you want to connect your own configuration tool, download the DD file from the YOKOGAWA website and install it. https://www.yokogawa.com/library/search/#/t=742&p=29 The URL is subject to change without notice. If you cannot access the URL, contact our sales representative or your local distributor.
Page 83: Connection Procedure
HART configuration tools. This is a notification that the same measured value was read multiple times within the same analysis period. This is not a problem with the TDLS8200 operation. The analysis period is a fixed adjustment value assigned to each TDLS8200 and cannot be changed.
Page 84: Setting Basic Parameters
This section explains how to set the basic parameters necessary to start measurements by showing examples from YH8000 operation. 3.2.1 Setting the Date and Time Set the current date and time on the TDLS8200. The date and time will be retained through battery power even when the power is turned off. Setup procedure using YH8000 (1) Tap to switch to the analyzer selection screen.
Page 85: Setting The Process Optical Path Length
Process optical path length is the distance the laser beam travels when it goes through measurement gas. The process optical path length of TDLS8200 is twice the length of insertion length of the process gas into the probe. Process gas insertion length is 100 cm or approximately twice the width of probe entry (50 cm).
Page 86: Setting The Process Pressure
[YH8000]“ >>Select analyzer >> Configuration >>Analysis>>Process Parameters >>Path Length” NOTE If you cannot use nitrogen purge gas, contact Yokogawa service. 3.2.3 Setting the Process Pressure This section explains the pressure value of the measurement process when the input mode is an analog input (AI-1). When using other input modes, see “4.1.2 Process Pressure”.
Page 87: Setting The Process Temperature
<3. Startup> 3.2.4 Setting the Process Temperature This section explains the temperature value of the measurement process when the input mode is analog input (AI-2). When using other input modes, see “4.1.3 Process Temperature” . Configuration menu path: [YH8000] “ >> Select analyzer >> Configuration >> Analysis >>Process Parameters>>Temperature”...
Page 88: Setting Process Alarms
(2) You can enable or disable each warning by tapping the check mark on the left side. In the following example, the “L1 Transmission Low” check box is selected to enable the L1 transmission low limit alarm. Touch Apply to apply the settings to the TDLS8200. IM 11Y01D03-01EN...
Page 89 L1 transmission low limit alarm, select “L1 Transmission Low,” and tap Setting on the right side. (4) The following screen will appear. Select the value box, enter the threshold value, and touch OK to apply the value to the TDLS8200. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 90: Loop Check (Simulation Output)
[YH8000] “ >>Execution>>Loop Check” NOTE If you turn off the TDLS8200 while performing a loop check, loop check will be cleared. Analog output Open the Analog output menu, and set Loop check mode to Enable to output the specified simulated current (“check output”).
Page 91 Blank Page...
Page 92: Configuration
<4. Configuration> Configuration This chapter provides details of all the setting items and shows the locations of the setting menus of the TDLS8200. However, the setting items related to calibration and validation are described in “6. Inspection and Maintenance”. Process Parameter Settings Process parameters indicate the measurement conditions related to measurement process gas.
Page 93 If the analog input immediately after turning on the power of the TDLS8200 is out of range while “Hold” is selected, a pressure value corresponding to 4 mA is held.
Page 94 • If you select “Disable” in the backup mode, the last pressure value you enter remains valid i.e. in the same status as “Hold”. • After the power of TDLS8200 turns on, the backup function keeps active until the first pressure value is received. During this period, when you select “Hold”, or “Disable” in the backup mode, the pressure values will be on hold at the equivalent of the one obtained within the Analog input range mentioned below (3) with 4mA.
Page 95: Process Temperature
When “Active input” is selected, input the temperature value via a 4-20 mA analog input (AI- 2) or Modbus. The TDLS8200 acquires a temperature value sent from the input source at every measurement value analysis cycle and uses it for the concentration calculation.
Page 96: Unit Settings
Process Temperature”. Analog Output Settings This section describes how to set the process measurement values for analog output and the function to hold output in accordance with the status of the TDLS8200. 4.4.1 Normal Range Output This section describes how to set 4-20 mA analog output and the detailed operation.
Page 97: Output Hold
4.4.2 Output Hold Output hold is a function to fix (hold) analog output to a set value when the TDLS8200 is in the following specific states. Setup menu path: [HART] “Device Settings >> I/O condition >> Analog output >> AO-1 to AO-5 >>Hold menu for each specific state”...
Page 98 <4. Configuration> l Output hold mode One of the following modes can be selected for output hold. Setting Mode Description Preset hold Holds output to any output value within 3.8 to 20.5 mA. * Any value within 3.0 to 21.6 mA can be set for during warning occurrence and during fault occurrence.
Page 99: Digital Output Settings
Hold mode. NOTE Be sure to enable the Safety Mode when using TDLS8200 for a safety instrumented system. See “Appendix 4 Safety Instrumented System Installation” for details. Digital Output Settings This function is for turning on digital output when the TDLS8200 enters the following specific states.
Page 100: Fault Contact (Do-2)
For details, see “Appendix 1 What is an Analysis Period?”. Process Alarm Settings Of the alarms of the TDLS8200, the threshold value and enable and disable can be set arbitrarily only for the following warnings related to the measurement process status. For details on each alarm, see “7.2...
Page 101: Digital Input Settings
A cutoff time can be set to prevent wrong operation due to chattering. A digital input change within the specified time will be ignored. Valve Stream Settings This section describes the procedure to automatically control multiple process gas streams according to the TDLS8200 valve control output (SV terminal). Up to three streams can be switched. 4.8.1 Definitions of Stream Numbers Implement the valve operation of the TDLS8200 using stream numbers defined for the statuses of the two valves connected to the valve control outputs (SV-1 and SV-2).
Page 102: Valve Usage Setting
[YH8000] >>Select analyzer >>Configuration >>I/O>>Valve Control>>Valve Usage” NOTE The items of OnlineValidation or Blow Back that can be executed according to the TDLS8200 valve control output (SV terminal) are limited depending on the “Valve usage” setting. • Online validation Stream switching cannot be used because all streams are used for automatic validation.
Page 103: Other Settings
4.9.1 This is a tag of up to 32 ASCII characters for identifying individual TDLS8200. It is displayed when you connect to the TDLS8200 from the YH8000. Furthermore, the long tag defined as standard in HART communication is the same as this tag.
Page 104 4-13 <4. Configuration> Spectrum display of LCD display Set whether or not to display the spectrum screen. Setup menu path: [YH8000] >>Select analyzer >>Configuration >>System>>Local Display>>SCU” Selection Option (HART Description Display Name) Hide A spectrum is not displayed. During alarm mode • Measurement spectrum When any of the following alarms occur, the received optical signal and absorption spectrum of the measured gas are displayed alternately in a 3-second cycle.
Page 105: Communication Address Setting
When the IP address is changed, the TDLS8200 restarts automatically. NOTE When the IP address of the TDLS8200 is changed via the YH8000, the YH8000 connection settings need to be configured again. For details, see YH8000 user’s manual (IM 11Y01D10- 01EN).
Page 106: Safety Mode
The interval from when an event suspected to be a Fault is detected to when it is confirmed. NOTE Be sure to enable the Safety Mode when using TDLS8200 for a safety instrumented system. See “Appendix 4 Safety Instrumented System Installation” for details.
Page 107: Initializing The Settings (Factory Default Settings)
AI/AO cal data Input/output calibration data of AI/AO Calibration data Zero/span calibration data User info TDLS8200 tag, IP settings, HMI (YH8000) user password NOTE When initialization is executed, the TDLS8200 restarts automatically. 4.10.2 Parameter Initial Value List The initial values of parameters at the time of shipment are as follows.
Page 108: Process Alarms
4-17 <4. Configuration> Process alarms Parameter Initial value Min. – Max. Warning selection All selected Select in the screen L1 Transmission low warning limit 20[%] 0 – 100[%] L2 Transmission low warning limit 20[%] 0 – 100[%] Pressure low warning limit 90[kPa] 0.1 – 10,000[kPa] Pressure high warning limit 110[kPa] 0.1 –...
Page 109: Hart Parameters
4-18 <4. Configuration> l Loop check Parameter Initial value Min. – Max. Test auto release time 30[min] Select in the screen System Parameter Initial value User Min. – Max. specification User averaging number 1 – 32(*1) Analyzer tag Blank ○ ASCII 32 characters Analyzer IP address 192.168.1.10 IPv4 address Subnet mask...
Page 110 4-19 <4. Configuration> l Offline validation (*1) Parameter Initial value Min. – Max. Pressure mode for offline validation 1 Process parameter Select in the screen Temperature mode for offline validation 1 Process parameter Select in the screen OPL mode for offline validation 1 Process parameter Select in the screen Pressure fixed value for offline validation 1 101.325[kPa]...
Page 111 Blank Page...
Page 112: Hart Communication
By turning the switch ON the analyzer part, write protection is enabled. The default setting is ON. Make sure that the TDLS8200 is turned off before setting the switch. Failure to do so may cause damage to the equipment. In a Safety Instrumented System Application, switch ON the Write protection.
Page 113: Alarm Definition (Status Group)
<5. HART Communication> 5.4 Alarm Definition (Status group) This section explains the device-specific alarms on HART communication and their definition. On a HART setting tool, device-specific alarms and their status information are bundled in groups consisting of up to eight items. These groups are defined as “Status group#” and alarms are expressed in the format of the character string of an alarm followed by (AL-alarm number).
Page 114 <5. HART Communication> Group Status Attribute Description Group 7 L1 Detect Signal Lost (AL-49) Fault Refer to “7.1 Fault Display and Handling”. L2 Detect Signal Lost (AL-50) L1 Ref Signal OOR (AL-51) L2 Ref Signal OOR (AL-52) L1 Laser Unit Fail (AL-53) L2 Laser Unit Fail (AL-54) L1 Laser Module Error (AL- L2 Laser Module Error (AL-...
Page 115: Functions Specific To Hart Communication
HART configuration tools. This is a notification that the same measured value was read multiple times within the same analysis period. This is not a problem with the TDLS8200 operation. The analysis period is a fixed adjustment value assigned to each TDLS8200 and cannot be changed.
Page 116: Device Malfunction During Warming Up
5.5.4 Device Malfunction during warming up A measurement value is not valid until the warming-up of TDLS8200 completes after the startup. During that time, HART specifies Device Malfunction of Field Device Status. If you don’t want Device Malfunction to appear then, enable “Device malfunction mask”. However, if TDLS8200 detects Failure alarms, Device Malfunction appears whether or not the “Device malfunction...
Page 117 Blank Page...
Page 118: Inspection And Maintenance
Inspection and Maintenance CAUTION If you need to remove the TDLS8200 from the process flange for inspection or maintenance, be sure to turn off the power beforehand. Work performed by an unqualified engineer can cause injury or severe damage to instruments.
Page 119: Transmission Calibration
To switch purge gas by automatic valve control through the SV terminal, Valve usage for TDLS8200 has to be set at “Blow Back”. For Valve usage, see 4.8.2 Valve Usage Setting During Blow Back time, AO hold, DO on can be set disabled. See 4.4.2 Output Hold, 4.5.1 DO Contact (DO-1) for details.
Page 120 <6. Inspection and Maintenance> Preparation Provide piping properly according to the Blow Back before performing automatic or semi- automatic execution. purge gas purge gas purge gas purge gas for blow back for blow back Setting For automatic/semi-automatic execution, in addition to the Blow Back settings, automation settings are required.
Page 121 <6. Inspection and Maintenance> Parameters for execution by time Parameter (YH8000) Description Time Initiate Enables time initiate of Blow Back. Initial time Enter the initial Blow Back date. Enter the initial execution time. Cycle (day) Enter the cycle in days. Cycle (hour) Enter the cycle in hours. Cycle (minute) Enter the cycle in minutes.
Page 122 <6. Inspection and Maintenance> (2) Purge gas If automatic valve control is disabled, manually control the valves to lead the purge gas. To end Blow Back, control the valve manually, stop the purge gas for Blow Back and press “Next”. If automatic valve control is enabled, the stream will be switched automatically, and the purge gas will be discharged.
Page 123: Process Window Cleaning
• Be careful in handling the process window as it is made of optical glass that is easily damaged. CAUTION Be sure to power off TDLS8200 when doing this maintenance/inspection. (1) Remove the analyzer part from the process. (If necessary, separate it completely from the process such as by using a process isolation valve.)
Page 124: Probe Cleaning
(1) Increase the purge rate for flushing. If the flushing does not remove the stain, take the probe apart. (2) Power off TDLS8200. (3) Remove piping. Apply vinyl tape or other protector to the TDLS8200 ports and pipe ferrule areas. (4) Remove wiring. Be careful not to short the wires. Insulate and protect the removed wires with vinyl tape or the like, and bundle them together, making sure not to strain the cables.
Page 125: Reflector Cleaning
CAUTION Be sure to power off TDLS8200 when doing this maintenance/inspection. (1) Remove piping. Apply vinyl tape or other protector to the TDLS8200 ports and pipe ferrule areas. (2) Remove wiring. Be careful not to short the wires. Insulate and protect the removed wires with vinyl tape or the like, and bundle them together, making sure not to strain the cables.
Page 126 <6. Inspection and Maintenance> (4) Take off the nuts on the process flange. Pull the TDLS8200 out of the process flange. If the analyzer part is already removed in the process (3) above, pull the probe part out of the process flange.
Page 127 CAUTION Be sure to power off TDLS8200 when doing this maintenance/inspection. (1) Remove the three reflector fixing screws, and remove the reflector part. (Figure 6.5) (2) Blow off particulate matter on reflector surfaces using clean, dry instrument air or nitrogen gas.
Page 128: Process Window Cleaning (Flowcell Type)
• The process window is made of optical glass and is prone to breakage, so please handle it with care. CAUTION Be sure to power off TDLS8200 when doing this maintenance/inspection. (1) Remove the analyzer part from the purge block. (Figure 6.12) (2) Remove the four M6 bolts.
Page 129: Online Validation
Perform the online validation when the process is sufficiently stable. NOTE Validation is a procedure to check whether the TDLS8200 is operating properly. If there is a reading error because of validation, check that there is no gas leak from the process. If no gas leak is confirmed, perform calibration.
Page 130: Preparation
NOTE If you want to switch the check gas stream through automatic valve control using the TDLS8200 SV terminal, you need to set the TDLS8200 valve usage to Online validation. For details on valve usage, see “4.8.2 Valve Usage Setting”.
Page 131: Configuration
6-14 <6. Inspection and Maintenance> 6.2.2 Configuration Online validation configuration menu: [HART] “Device Settings >> Validation >> Online Validation #” [YH8000] >>Select analyzer >>Configuration >>Validation>>Online Validation #” The setup parameters required to manually execute online validation are indicated for each of the above submenus (tabs on the YH8000).
Page 132: Execution
6-15 <6. Inspection and Maintenance> 6.2.3 Execution Before starting online validation, check that the piping and online validation settings are correct. Here, online validation 1 for CO-O will be used as an example. Execution menu path: [HART] “Diagnostics >> Validation >> Manual > Manual online val 1” [YH8000] “...
Page 133 6-16 <6. Inspection and Maintenance> (3) Discharging the check gas If automatic valve control is disabled, manually control the valves to purge the validation cell with the analyzer internal purge gas (nitrogen gas) that is used during process measurement. Check that the concentration is stable, and then touch Execute. The validation result will be displayed.
Page 134: Time Chart
6-17 <6. Inspection and Maintenance> 6.2.4 Time Chart The valve operation during manual online validation execution and the timing when the AO/DO output switches to Cal/Val/Blow Back mode are shown below. In Cal/Val/Blow Back mode, it is possible to hold the AO output or specify other settings. For the AO/DO output settings during Cal/Val mode, see “4.4.2 Output Hold”...
Page 135: Mounting On A Calibration Cell
1/4 inch pipe plug Three-way valve As required Thermometer Pressure meter Coupling As required Nitrogen gas As required For TDLS8200 purging For zero calibration Span calibration gas As required For span calibration Check gas As required For offline validation Flowmeter...
Page 136: Preparation Procedure
• During calibration work, do not remove the analyzer part while the power is on. • If the process gas is positive pressure, shut off the TDLS8200 from the process, stop the process window purge, and prevent excessive pressure from being applied to the process window.
Page 137 (1) Using a hex wrench (5 mm), remove only the upper right screw of the quick connector (see Figure 6.12). (2) Loosen the other screws. (3) Slowly turn the TDLS8200 counterclockwise to remove the analyzer from the probe. For details on how to remove the YH8000, see YH8000 user’s manual (IM 11Y01D10-01EN). Figure 6.12...
Page 138 6-21 <6. Inspection and Maintenance> (a) Mounting analyzer part on calibration cell Fasten three M6 screws on screw holes for analyzer part, on the calibration cell (Quick Connector) in advance. Leave a gap of about 8 mm thick between flange side and Quick Connector. Don’t fasten a screw on the upper right screw position viewed from front. The upper right screw is attached to the analyzer part.
Page 139: Turning The Power On
For each kind of offline work, the settings may be different. Change the settings as necessary. 6.3.4 Returning the TDLS8200 to the Process When offline work is complete, return the TDLS8200 to the process. Follow the procedure below. NOTE Remove piping after gas inside the calibration cell is completely replaced with safety gas.
Page 140: Offline Validation
=> The expected value and the actual value are compared and validated (pass or fail). NOTE Validation is a procedure to check whether the TDLS8200 is operating properly. If there is an error in reading, implement calibration. Normally, after detaching the analyzer part from process and installing on the calibration cell, Offline validation is to be performed.
Page 141: Preparation
6-24 <6. Inspection and Maintenance> 6.4.1 Preparation Follow the instructions in “6.3 Mounting on a Calibration Cell”. For piping method, see the figure shown below. Connect both Offline validation 1 and 2 check gases. Validation 1 and 2 can be executed. Optical purge Exhaust of calibration gas K9777ZA...
Page 142: Execution
For safety verification, the concentration trend is displayed on the YH8000. Check that the concentration is stable, and proceed to the next screen. (5) Ending validation The TDLS8200 will exit from validation mode. [YH8000] Valve for Check Gas 1 will be opened automatically.
Page 143: Time Chart
6-26 <6. Inspection and Maintenance> 6.4.4 Time Chart The valve operation during manual offline validation execution and the timing when the AO/DO output switches to Cal/Val/Blow Back mode are shown below. In Cal/Val mode, it is possible to hold the AO output or specify other settings. For the AO/DO output settings during Cal/Val/Blow Back mode, see “4.4.2 Output Hold”...
Page 144: Zero Calibration
Typically, zero calibration is performed in an ideal environment before product shipment. In principle, the TDLS8200 does not have any zero point drift. Therefore, customers normally do not have to perform zero calibration.
Page 145: Preparation
6-28 <6. Inspection and Maintenance> 6.5.1 Preparation Follow the instructions in “6.3 Mounting on a Calibration Cell”. The piping method is described below. When using a Flowcell type, ensure that it is performed with the Flowcell attached. Optical purge Exhaust of calibration gas K9777ZA Purge gas Valve-2...
Page 146: Configuration
HART and the concentration trend on the YH8000. Check that the concentration is stable, and proceed to the next screen. (5) Ending zero calibration The TDLS8200 will exit from calibration mode. [YH8000] Are you sure to start manual zero calibration? [YH8000] Purge calibration cell with Zero Gas.
Page 147: Time Chart
6-30 <6. Inspection and Maintenance> 6.5.4 Time Chart The valve operation during manual zero calibration execution and the timing when the AO/DO output switches to Cal/Val mode are shown below. In Cal/Val mode, it is possible to hold the AO output or specify other settings. For the AO/DO output settings during Cal/Val mode, see “4.4.2 Output Hold”...
Page 148: Preparation
6-31 <6. Inspection and Maintenance> 6.6.1 Preparation Follow the instructions in “6.3 Mounting on a Calibration Cell”. There are two piping methods as below. When using a Flowcell type, perform span calibration with the Flowcell installed. Optical purge Exhaust of calibration gas K9777ZA Purge gas Valve-2...
Page 149: Configuration
6-32 <6. Inspection and Maintenance> 6.6.2 Configuration Span calibration configuration menu: [HART] “Device Settings >> Calibration >> Span calibration” [YH8000] >>Select analyzer >>Configuration >Calibration>>Span Calibration” The setup parameters required to manually execute span calibration are indicated for each of the above submenus (tabs on the YH8000).
Page 150: Time Chart
HART and the concentration trend on the YH8000. Check that the concentration is stable, and proceed to the next screen. (5) Ending span calibration The TDLS8200 will exit from calibration mode. [YH8000] Valve for Check Gas 1 will be opened automatically.
Page 151: Calibration Data Record And Restoring
6-34 <6. Inspection and Maintenance> Calibration Data Record and Restoring This section explains the function used to view the history of calibration and validation results and restoring the zero and span calibration data to its original condition. l Calibration and validation history You can view up to 10 events using HART and 99 events using the YH8000. For the displayed history content, see YH8000 user’s manual (IM 11Y01D10-01EN).You can view using the following menu.
Page 152: Automatic And Semi-Automatic Execution Of Online Validation
The stabilization wait time is the period until the measurements stably return to normal process values. The TDLS8200 is in a Cal/Val/Blow Back state until the stabilization wait time is completed and holds the AO output. The following diagram shows a remote execution example.
Page 153: Execution
6-36 <6. Inspection and Maintenance> l Calibration gas or check gas and process gas purge time The purge time must be set regardless of automatic execution or semi-automatic execution. As an example, the parameters for online validation 1 are shown below. Parameter name Description (YH8000) Validation gas Enters the purge time of online validation 1 check gas. This corresponds Purge time to the validation time.
Page 154 6-37 <6. Inspection and Maintenance> l YH8000 Execution Screen (1) Starting validation Execute “Semi-Auto Online Validation 1.” Tap Start to begin. (2) Purging with the check gas When validation starts, the stream is automatically switched, and the validation cell is purged with check gas. The purge time is the time specified by “Validation gas Purge time.” Tapping Abort cancels validation.
Page 155: Aborting The Stabilization Wait Time For Automatic Or Semi-Automatic Execution
6-38 <6. Inspection and Maintenance> (3) Discharging the check gas (process purge) The stream is automatically switched, and the validation cell is purged with normal process purge gas to discharge the check gas. The purge time is the time specified by “Normal gas Purge time.”...
Page 156: Analog Input Calibration
<6. Inspection and Maintenance> Analog Input Calibration This section explains analog-digital conversion calibration of the analog input terminal (AI). Since the TDLS8200 is calibrated before shipment, you normally do not need to calibrate. CAUTION Analog input must be calibrated with Passive Al Check the setting on “2.2.2 Connecting to Temperature and Pressure Transmitters”.
Page 157: Analog Output Calibration
Analog Output Calibration This section explains digital analog conversion calibration of the analog output terminal (AO). Since the TDLS8200 is calibrated before shipment, you normally do not need to calibrate. Execution menu path: [HART] “Diagnostics >> Trim analog channel >> Trim AO-1(PV)”...
Page 158: Alarm History
• Times when messages occur • Sub numbers of alarm messages (only for certain alarms and messages) These numbers are used by Yokogawa service representatives for troubleshooting purposes. The numbers are displayed in the YH8000. You can view up to 99 events using the YH8000. For an explanation of the YH8000 alarm history screen, see YH8000 user’s manual (IM 11Y01D10-01EN).
Page 159: Access To Stored Data In Tdls8200
6.13 Access to stored data in TDLS8200 Plugging a USB flash drive into USB port on TDLS8200 enables downloading data stored in TDLS8200 memory. The following files listed in the next table can be confirmed as in plain text or spreadsheet by converting file format to CSV file format or “.csv”.
Page 160: Troubleshooting
A fault occurs when the various types of diagnostic information being monitored by the self- diagnostics function are clearly abnormal and correct concentration calculation is not possible. It may signify a malfunction. If a fault occurs, the TDLS8200 output and display responds in the following manner.
Page 161: Warning Display And Handling
Internal communication fails. Contact Yokogawa service representative.(*1) If the fault occurs again after you restart the TDLS8200, contact your Yokogawa service representative. Warning Display and Handling A warning occurs when the various types of diagnostic information being monitored by the TDLS8200 self-diagnostics function are outside the normal range.
Page 162 17 Laser Unit Laser unit temperature is too low. Check the ambient temperature of the laser unit. Temperature Low Contact Yokogawa service representative. 18 Laser Unit Laser unit temperature is too high. Check the ambient temperature of the laser unit. Temperature Contact Yokogawa service representative.
Page 163 <7. Troubleshooting> No. Displayed name Description Corrective action 30 AI-1 (Pressure) AI-1 (Pressure) input current is Check the process gas pressure. Check whether more than 20 mA. the gas pressure meter signal is correct. Check whether the AI range setting is correct. See “4.3 Analog Input Settings”...
Page 164: Handling Degraded Laser Transmission
<7. Troubleshooting> Handling Degraded Laser Transmission For the TDLS8200 to operate normally, the optimal level of laser beam needs to reach the photo detector unit. The following phenomena can cause the laser beam level to degrade. These factors may occur separately or together.
Page 165: Replacement Parts (Process Window)
(for O K9772TH O ring For process window attached to purge block Codes in parenthesis represent Gas Parameter on Model and Suffix Codes of TDLS8200. 7.4.2 Process Window Replacement Procedure The procedure for replacing the process window is provided below.
Page 166: How To Replace Flowcell Type Process Window
Fuse Replacement (1) To safely replace the fuse, shut off the external circuit breaker to stop the power supply to the TDLS8200. (2) Remove the fuse from the fuse holder. Using a flat-blade screwdriver that matches the holder cap, turn the cap 90 degrees counterclockwise.
Page 167: Communication Interruption During Manual Calibration And Validation
<7. Troubleshooting> Communication Interruption during Manual Calibration and Validation If the communication between YH8000 or HART and the TDLS8200 is disconnected while performing manual calibration or validation from YH8000 or HART, take the following corrective action. HART See “5.5.2 Aborting Calibration and Validation”.
Page 168: Check The Result
<7. Troubleshooting> n YH8000 execution screen (1) Start Piezo Proof Test Open the menu above, start Piezo Proof Test. (2) Testing “System is Piezo proof testing..” (*1) is displayed. The test takes normally about 60 seconds, up to 90 seconds. (3) Check the result After the test completes, the screen automatically shifts from the test screen to the test result.
Page 169 *2: When the 1 laser specification is selected, the result of LD2 is not displayed. NOTE When the piezo proof test fails, TDLS8200 may not operate properly. Please consult Yokogawa. The piezo proof test is different from the proof test required for IEC 61508.
Page 170: Modbus
Modbus protocol can be used for TDLS8200 DCS communication. This section explains the Modbus communication specifications that apply to the TDLS8200. The main uses of Modbus communication on the TDLS8200 are shown below. Only a portion of the TDLS8200 configuration function is supported.
Page 171: Slave Response
Value 0x00 VenderName Vendor name "YOKOGAWA" 0x01 ProductCode Product code "TDLS8200" "[Device Revision]-[Software Revision]" 0x02 MajorMinorRevision Revision number Example: "01-1.01.01" Data There are two types of data: “coil/relay” in unit of bits and “register” in unit of 16 bits. Data attributes and data addresses are shown in the following table.
Page 172: Coil
<8. Modbus> The error code details are provided below. Error code Description Function code error (nonexistent function) Coil, input relay, or register address error (out of range) Coil, input relay, or register data number error (out of range) During instruction message execution, an error which is the slave device cannot execute occurs.
Page 173: Input Relay
<8. Modbus> Input relay Input relay name Address Description Analyzer error 10001 Alarm occurring when set to 1 (refer to address 10101 and beyond for the alarm details) Maintenance in progress 10002 Maintenance in progress when set to 1 AO-1, 2, 3, 4, 5 fixed output 10003 AO-1 to AO-5 fixed output when set to 1 AO-1 fixed output 10004 AO-1 fixed output in progress when set to 1...
Page 174 <8. Modbus> Input relay name Address Description Warning: Transmission low (AL-1) 10101 Alarm occurring when set to 1 * (AL-##) in the name column denotes the alarm Warning: Process pressure low (AL-2) 10102 number. Warning: Process pressure high (AL-3) 10103 Warning: Process temperature low (AL-4) 10104 Warning: Process temperature high (AL-5)
Page 175: Hold Register
NOTE When inputting the temperature value or pressure value via Modbus, set the input unit the same as the TDLS8200 unit. If input using a different unit, the concentration reading will not be output correctly. As a default setting, when Modbus connection is shut down, the backup operation starts to restore data of temperature and pressure value.
Page 176: Input Register
<8. Modbus> Input register Input register name Address Description Concentration value 30001, 30002 Component 1 gas concentration value, IEEE754 float format (*1) The unit follows to the component 1 gas setting. 30003, 30004 Component 2 gas concentration value, IEEE754 float format (*1) The unit follows to the component 2 gas setting.
Page 177 Blank Page...
Page 178: Appendix
On the TDLS8200, you can specify how many analysis periods of spectrum data to calculate the moving average over. The number of times moving average is taken in a single concentration calculation is called the average number, and the corresponding time is called average time.
Page 179 App.1-2 <Appendix 1 What Is an Analysis Period?> l When the average number is 2 (Average time = analysis period × 2 × 2 = analysis period × 4) Analysis period Average time Time Measured value and analog output updating You can view the analysis period from the following menu. [YH8000] “...
Page 180: Appendix 2 Explosion Protected Type Instrument
WARNING Tag plate which is provided as an option of TDLS8200 shall be hung by a wire and the wire shall be tightly bound to non-painted metal part such as purge block of TDLS8200 not to insulate electrically and to avoid electrostatic charging.
Page 181: Specific Condition Of Use
• Electrostatic charges on the non-metallic parts (excluding glass parts) or coated parts of the equipment shall be avoided. • If the TDLS8200 is mounted in Zone 21 or Zone 22, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid flow of dust is avoided.
Page 182: Installation
<Appendix 2 Explosion Protected Type Instrument> • The Special fastener 1 used to fasten the shaft onto the enclosure shall only be replaced with Yokogawa fastener, Part number: K9776VF. • Process temperature is not considered for the certification. Install and operate so as not to be affected by process temperature.
Page 183: Operation
Inlet or outlet Inlet and outlet of purged compartment l Maintenance and repair • Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. l Dual seal TDLS8200 is Dual seal equipment with annunciation according to ANSI/ISA 12.27.01-2011. Primary seal is the process window on the purge block.
Page 184 ・PROCESS TEMP. AT PROCESS WINDOW AREA except for deviations pursuant to Laser SHALL BE WITHIN -20 TO 55 ºC. Notice No.50, dated June 24, 2007 Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN YD 1 2 Made in Japan Example of nameplate (Design and texts may be changed) •...
Page 185: Applicable Standards
App.2-6 <Appendix 2 Explosion Protected Type Instrument> l TDLS8200-C1 (FM Approval for Canada) l Applicable standards CSA-C22.2 No. 94.2-15:2015 CAN/CSA-C22.2 No. 60079-0:2015 CAN/CSA-C22.2 No. 60079-1:2016 CAN/CSA C22.2 No. 60079-28:2016 CAN/CSA C22.2 No. 60079-31:2015 CSA-C22.2 No. 60529:2016 CAN/CSA-C22.2 No. 61010-1-12:2012 CAN/CSA-No. 61010-2-030-12:2016 ANSI/ISA-12.27.01:2011 l Certificate No.
Page 186 • Electrostatic charges on the non-metallic parts (excluding glass parts) or coated parts of the equipment shall be avoided. • If the TDLS8200 is mounted in Zone 21 or Zone 22, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid flow of dust is avoided.
Page 187 Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. l Dual seal TDLS8200 is Dual seal equipment with annunciation according to ANSI/ISA 12.27.01-2011. Primary seal is the process window on the purge block. • Wetted materials of primary seal: Stainless steel, Borosilicate glass, Teflon encapsulated viton (O-ring) •...
Page 188 SHALL BE WITHIN -20 TO 55 ºC. -20 A 55 ºC. Notice No.50, dated June 24, 2007 YD 1 2 Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Made in Japan Example of nameplate (Design and texts may be changed) • MODEL: Specified model code • SUFFIX: Specified suffix code •...
Page 189 • Electrostatic charges on the non-metallic parts (excluding glass parts) or coated parts of the equipment shall be avoided. • If the TDLS8200 is mounted in an area where the use of EPL Db or Dc equipment is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid flow of dust is avoided.
Page 190 App.2-11 <Appendix 2 Explosion Protected Type Instrument> Special fastener 1 Special fastener 2 Special fasteners l Installation Refer to chapter 3 for other than that described below. • Warning: In cases where the ambient temperature exceeds 40 °C, use external heat resistant cable with a maximum allowable temperature of 75 °C or above.
Page 191 <Appendix 2 Explosion Protected Type Instrument> Inlet or outlet Inlet or outlet Inlet and outlet of purged compartment l Maintenance and repair Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 192 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007. • Country of origin: Specified country of origin • Address of the manufacture: Address of Yokogawa Electric Corporation IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 193 • If the TDLS8200 is mounted in an area where the use of Category 2 D or 3 D equipment is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid flow of dust is avoided.
Page 194 • Pressure inside purged compartment shall not exceed 10kPa. Inlet or outlet Inlet or outlet Inlet and outlet of purged compartment l Maintenance and repair Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 195 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007 YD 1 2 Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Made in Japan Example of nameplate (Design and texts may be changed) • MODEL: Specified model code •...
Page 196 • The property class of the special fastener 2 used to fasten the optics case to the case below is at least A*-80 or C*-80. 产品光学腔与壳体间的特殊紧固螺钉2的性能等级不得低于A*-80或C*-80。 • The special fastener 1 shall only be replaced with Yokogawa fastener, Part number: K9776VF. 特殊紧固螺钉1的仅能用编号为K9776VF 的紧固件进行替换。...
Page 197 App.2-18 <Appendix 2 Explosion Protected Type Instrument> Special fastener 1 特殊紧固螺钉� Special fastener 2 特殊紧固螺钉� Special fasteners 特殊紧固螺钉 l Installation and erection 安裝 • Installation and maintenance of the equipment shall be done in accordance with GB/T 3836.13, GB/T 3836.15, GB/T 3836.16, GB 50257, and GB 15577. 设备的安装、...
Page 198 App.2-19 <Appendix 2 Explosion Protected Type Instrument> Screw size 螺丝尺寸 Marking 记号 ISO M20×1.5 female or ISO M25×1.5 female ANSI 1/2NPT female or ANSI 3/4NPT female Marking of screw size 螺丝尺寸记号 • When installing the equipment, the selected Type of Protection should be ticked as follows. 安装设备时，...
Page 199 WARNING 警告 A modification of the equipment would no longer comply with the construction described in the certificate documentation. 设备的改装将不再符合证书文档中描述的结构。 Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. 横河电机株式会社的授权人员，才可以修理设备。 l Warning 警告 WARNING 警告 USE THE HEAT-RESISTING CABLES ≥ 75 °C WHEN T >...
Page 200 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007 2 1 D Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Made in Japan Example of nameplate (Design and texts may be changed) 铭牌示例（设计和文字可能会更改） • MODEL: Specified model code 指定模型...
Page 201 Blank Page...
Page 202: Appendix 3 General View Of Hart Dd
The entire structure of the DD menu including parameter arrangement is listed below. The menu for a TDLS8200 with four-gas measurement specification is indicated here. Therefore, the list includes menus and parameters that do not appear in a specification of a TDLS8200 with three or fewer gas measurements.
Page 203 App.3-2 <Appendix 3 General View of HART DD> Item Diagnostics Device Status Status group 1 Status group 2 Status group 3 Status group 4 Status group 5 Status group 6 Status group 7 Status group 8 Status group 9 Status group 10 Device status Ext dev status Device Diagnostic Status 0...
Page 204 App.3-3 <Appendix 3 General View of HART DD> Item (Device I/O condition Analog output AO-1 Warning hold AO1 warn hld mode AO1 warn hld level Settings) AO1 warn hld delay Fault hold AO1 fault hld mode AO1 fault hld level AO1 fault hld delay Cal/Val/ AO1 calvalb hld mode...
Page 205 App.3-4 <Appendix 3 General View of HART DD> Item (Device Validation Online Parameter Onval1 gas type Onval1 gas conc Settings) validation 1 Onval1 temp mode Onval1 temp fix val Onval1 act amb ofst Onval1 pres fix val Onval1 OPL fix val Valve control Onval1 auto vlv man Online...
Page 206: Offline Menu
App.3-5 <Appendix 3 General View of HART DD> l Offline menu * Same for Upload variables Item Offline Probe mode sel LD1-SubGas2 enable LD2-SubGas2 enable SI unit control LD1-SubGas1 decimal digits LD1-SubGas2 decimal digits LD2-SubGas1 decimal digits LD2-SubGas2 decimal digits LD1-SubGas1 unit LD1-SubGas2 unit LD2-SubGas1 unit LD2-SubGas2 unit...
Page 207 App.3-6 <Appendix 3 General View of HART DD> Item (Offline) AO4 fault hld mode AO4 fault hld level AO4 fault hld delay AO4 calvalb hld mode AO4 calvalb hld level AO4 w-up hld mode AO4 w-up hld level AO5 warn hld mode AO5 warn hld level AO5 warn hld delay AO5 fault hld mode...
Page 208: Appendix 4 Safety Instrumented System Installation
This section describes the handling precautions to be taken when installing and operating the TDLS8200 in order to maintain the level of safety designed for using the TDLS8200 in a Safety Instrumented System application. It also provides an overview of the operation. The topics discussed in this section are the TDLS8200’s proof test, repairs, and replacement;...
Page 209: Connecting External Transmitters
App.4-2 <Appendix 4 Safety Instrumented System Installation> l Opening and Closing the TDLS8200 When online, do not open or close the cover. If you need to open and close the TDLS8200 cover for maintenance, obtain permission from your safety administrator. l Configuration Use the HART Configuration tool or a YH8000 HMI unit to set the range and unit. Connect the HART Configuration tool or the YH8000 according to the instructions in this manual.
Page 210: Proof Test
If a fault is detected, please consult with Yokogawa. The operator that performs proof tests on the TDLS8200 must have a thorough knowledge of the operation of Safety Instrumented Systems, including the bypass procedure, TDLS8200 maintenance, and change procedures.
Page 211: Firmware Updating
The expected useful lifetime of the TDLS8200 is 10 years. The reliability data in the FMEDA report is valid to 10 years. It is assumed that the failure rates of the TDLS8200 would increase when it is used over 10 years. Therefore, the safety integrity level based on the reliability data given in the FMEDA report may not be attainable.
Page 212: Terminology And Acronyms
When restoring zero or span calibration data to “factory default data”, an error may occur. It is possible to restore the data by performing the operation again. If the error occurs repeatedly, please contact Yokogawa service representative. For details about the operation, see “6.7 Calibration Data Record and Restoring”.
Page 213 Blank Page...
Page 214: Customer Maintenance Parts List
Screws for grounding terminal K8010YA Screw 4pcs Set (for -M) K8010HU O-ring (for -M) K9772TJ O-ring CMPL 11Y01D03-01EN All Rights Reserved. Copyright © 2021 Yokogawa Electric Corporation. Subject to change without notice. 1st Edition: June 2021 (YK) 4th Edition: May 2024 (YK)
Page 216 K8010VN (for -D5) K8010VP (for -D8) K801VQ (for -J5) K8010VR (for -J8) *: Process window assy is not included. CMPL 11Y01D03-02EN All Rights Reserved. Copyright © 2023 Yokogawa Electric Corporation. Subject to change without notice. 1st Edition: Sep. 2023 (YK)
Page 218 Customer TDLS8200 (Probe length: -EXT, Flowcell type) Probe type Tunable Diode Laser Spectrometer Maintenance Parts List DPS2 PCB Assy DPS2 PCB Assy Item Part No. Description Item Part No. Description K9776HC Cover Assy (with O-ring) K9772TJ O-ring K9771KG O-ring K9776VG...
Page 220 K9772TH O-ring K9776GC Process window assy for K9777ZK K9776GD Process window assy for K9777ZL CMPL 11Y01D02-21EN All Rights Reserved. Copyright © 2019 Yokogawa Electric Corporation. Subject to change without notice. 1st Edition: Mar. 2019 (YK) 3rd Edition: May 2024 (YK)
Page 222: Revision Information
Other correction (page 2-5) Apr. 2022/3rd Edition Added TDLS8200 -M (Mid temperature), TDLS8200 -X2, TDLS8200 -A (pages 2-2, 2-3, 2-7, 2-10) Updated Explosion proof conformity YH8000 -R2 (EAC),YH8000 -K2 (Korea Ex),YH8000-J2 (pages 2-6) Added Explosion proof conformity YH8000 -U2 (INMETRO). (pages 2-6, 2-8) Other correction (page 2-5) Nov.
Page 223 Updated the safety standard certification of compliance. (pages vii, vi, viii, 2-1) June 2021/1st Edition Newly released Yokogawa Electric Corporation 2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750, JAPAN http://www.yokogawa.com/ IM 11Y01D03-01EN 11th Edition: May 17, 2024-00...
Page 224 Manual Probe Type Tunable Diode Laser Spectrometer Thank you for selecting our TDLS8200 Probe Type Tunable Diode Laser Spectrometer. There are changes or additions to the User’s Manual “IM 11Y01D03-01EN 11th Edition” attached to the product. Read this information carefully before using the product.
Page 225 • If the TDLS8200 is mounted in an area where the use of Category 2 D or 3 D equipment is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid flow of dust is avoided.
Page 226 • Pressure inside purged compartment shall not exceed 10kPa. Inlet or outlet Inlet or outlet Inlet and outlet of purged compartment l Maintenance and repair Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. IM 11Y01D03-01EN 12th Edition: Aug. 13, 2024-00 IM 11Y01D03-01EN 3/9 11th Edition...
Page 227 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007 YD 1 2 Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Made in Japan Example of nameplate (Design and texts may be changed) • MODEL: Specified model code •...
Page 228 产品光学腔与壳体间的特殊紧固螺钉2的性能等级不得低于A*-80或C*-80。 The “*” shown is replaced by a property grade numeral. 所示 “*” 由性能等级数字代替。 • The special fastener 1 shall only be replaced with Yokogawa fastener, Part number: K9776VF. 特殊紧固螺钉1的仅能用编号为K9776VF 的紧固件进行替换。 • Process temperature is not considered for the certification. Install and operate so as not to be affected by process temperature.
Page 229 App.2-18 <Appendix 2 Explosion Protected Type Instrument> Special fastener 1 特殊紧固螺钉� Special fastener 2 特殊紧固螺钉� Special fasteners 特殊紧固螺钉 l Installation and erection 安裝 • Installation and maintenance of the equipment shall be done in accordance with GB/T 3836.13, GB/T 3836.15, GB/T 3836.16, GB 50257, and GB 15577. 设备的安装、...
Page 230 App.2-19 <Appendix 2 Explosion Protected Type Instrument> Screw size 螺丝尺寸 Marking 记号 ISO M20×1.5 female or ISO M25×1.5 female ANSI 1/2NPT female or ANSI 3/4NPT female Marking of screw size 螺丝尺寸记号 • When installing the equipment, the selected Type of Protection should be ticked as follows. 安装设备时，...
Page 231 WARNING 警告 A modification of the equipment would no longer comply with the construction described in the certificate documentation. 设备的改装将不再符合证书文档中描述的结构。 Only personnel authorized by Yokogawa Electric Corporation can repair the equipment. 横河电机株式会社的授权人员，才可以修理设备。 l Warning 警告 WARNING 警告 USE THE HEAT-RESISTING CABLES ≥ 75 °C WHEN T >...
Page 232 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007 2 1 D Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Made in Japan Example of nameplate (Design and texts may be changed) 铭牌示例（设计和文字可能会更改） • MODEL: Specified model code 指定模型...

YOKOGAWA TDLS8200 User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA TDLS8200

Summary of Contents for YOKOGAWA TDLS8200

Table of Contents
