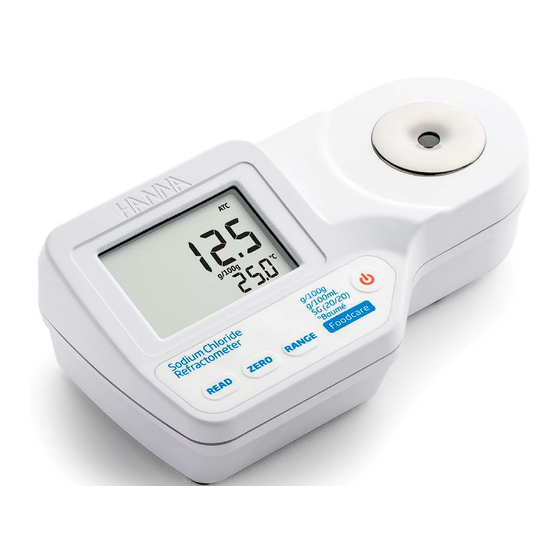

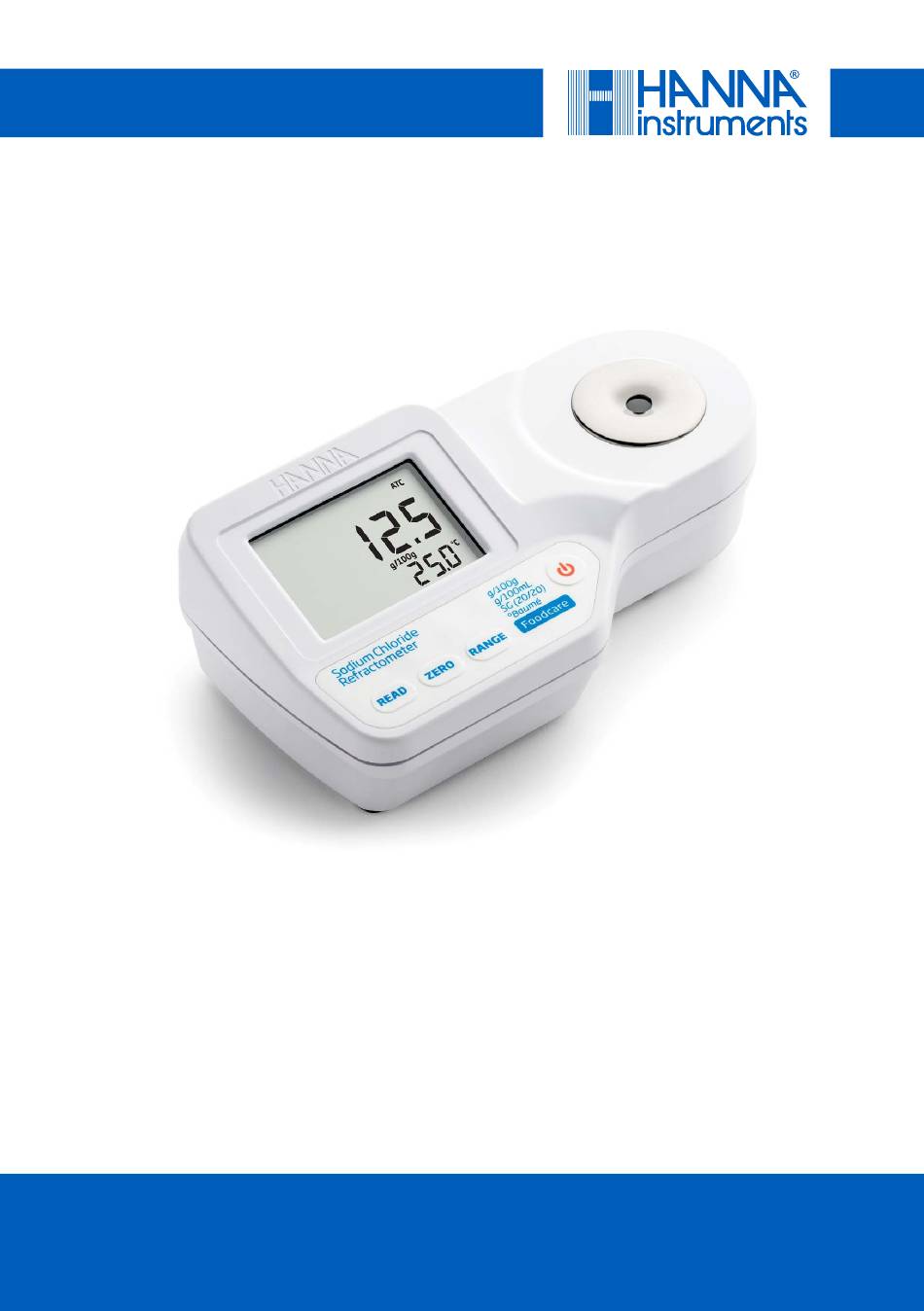

INSTRUCTION MANUAL
HI96821
Digital Sodium Chloride Refractometer
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com
