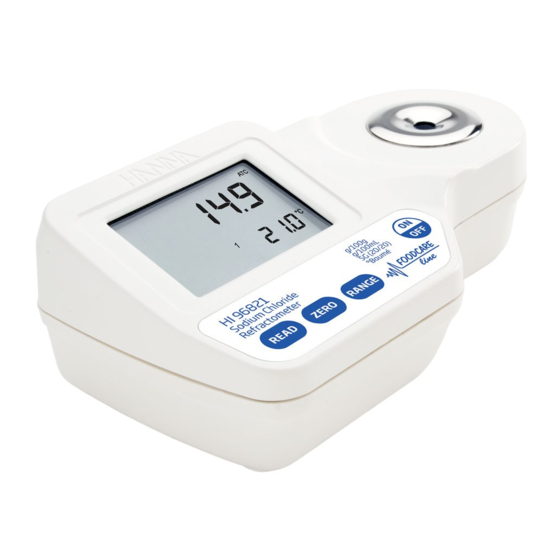

- Page 1 Instruction Manual HI 96821 Refractometer for Sodium Chloride Measurements w w w. h a n n a i n s t . c o m Supplied in Australia by Instrument Choice Call our scientists on 1300 737 871 www.instrumentchoice.com.au...
- Page 2 A defective instrument must be returned in its original packing. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA. Supplied in Australia by Instrument Choice Call our scientists on 1300 737 871 www.instrumentchoice.com.au...
-
Page 3: General Description
Hanna’s years of experience as a manufacturer of analytical instruments. The HI 96821 is an optical instrument that employs the measurement of the refractive index to determine sodium chloride concentration in aqueous solutions used in food preparation. It is not intended for sea water salinity measurements. -
Page 4: Principle Of Operation
In the HI 96821 refractometer, light from an LED passes through a prism in contact with the sample. An image sensor determines the critical angle at which the light is no longer refracted through the sample. -
Page 5: Functional Description
FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION TOP VIEW 1. Liquid Crystal Display (LCD) 2. READ Key (User Measurement) 3. ZERO Key (User Calibration) 4. RANGE Key (User Measurement Unit) 5. ON/OFF 6. Stainless Steel Sample Well and Prism 7. -
Page 6: Display Elements
DISPLAY ELEMENTS DISPLAY ELEMENTS DISPLAY ELEMENTS DISPLAY ELEMENTS DISPLAY ELEMENTS 1. Battery (blinks when low battery condition detected) 2. Measurement in Progress Tag 3. SETUP: Factory Calibration Tag 4. CAL: Calibration Tag 5. Automatic Temperature Compensation (blinks when temperature exceeds 10-40°C / 50-104°F range) 6 Primary Display (displays measurement and error messages) 7. -
Page 7: Calibration Procedure
CALIBRATION PROCEDURE CALIBRATION PROCEDURE CALIBRATION PROCEDURE CALIBRATION PROCEDURE CALIBRATION PROCEDURE Calibration should be performed daily, before measurements are made, when the battery has been replaced, or between a long series of measurements. 1. Press the ON/OFF key, then release. Two instrument test screens will be displayed briefly; all LCD segments followed by the percentage of remaining battery life. -
Page 8: Measurement Procedure
MEASUREMENT PROCEDURE MEASUREMENT PROCEDURE MEASUREMENT PROCEDURE MEASUREMENT PROCEDURE MEASUREMENT PROCEDURE Verify the instrument has been calibrated before taking measurements. 1. Wipe off prism surface located at the bottom of the sample well. Make sure the prism and sample well are completely dry. 2. -
Page 9: To Change Measurement Unit
TO CHANGE MEASUREMENT UNIT TO CHANGE MEASUREMENT UNIT TO CHANGE MEASUREMENT UNIT TO CHANGE MEASUREMENT UNIT TO CHANGE MEASUREMENT UNIT Press the RANGE key to select measurement units. The instrument toggles between the four measurement scales each time the key is pressed and the primary display indicates “G-G” for g/100 g, “G-L”... -
Page 10: Making A Standard Sodium Chloride Solution
WARRANTY WARRANTY WARRANTY The HI 96821 is warranted for two years against defects in workmanship and materials when used for its intended purpose and maintained according to the instructions. This warranty is limited to repair or replacement free of charge. -
Page 11: Error Messages
ERROR MESSAGES ERROR MESSAGES ERROR MESSAGES ERROR MESSAGES ERROR MESSAGES r c s . e r “ “ r u r t . t n r o r s i s , s t L “ “ l p s b i l o i t H “... - Page 12 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket RI 028985 USA Local Sales and Customer Service office Hanna Instruments United States Inc. Highland Industrial Park 584 Park East Drive Woonsocket RI 028985 USA Tel. (800) 426 6287 Fax (401) 765 7575 www.hannainst.com/usa...
