ASA Electronics AM Series Operation Manual

Operation Manual of ASA AM Series Digitalized
Management System for screw fastening
 A Word of Thanks to Our Customers
Thank you for choosing lightweight and powerful electric screwdrivers. In order to insure maximum performance
and product life, please read this manual before using your screwdriver and power supply.
□
Feature
 Universal power source function: Be suitable for 100-240VAC any power source.
 Stepless control function: The electronic technology industry pursues thinness, lightness, shortness and smallness as the main
stream in the future; the smaller screw, the higher locking and tightening requirements; both long and short screws can be
locked and meet the requirements of high precision and low inertia at the same time.
 Specifications
Model No.
Counting Range of Accumulative Screwing
Range of Setting Number of Unit Screwing
Setting Range of Number of Screwing Time Sample
Range of Number of Memory/Calling-out of setting
Setting Range of Screwing Time Sampling
Setting Range of Screwing Time Error Value
Judgment
Signal Output Mode
Input Voltage
Output Voltage/Plug Needle Number
Power(Including Electric Screw Driver)
Applicable Model
Dimension
Weight
Matters to be aware of：
The power supply should be plugged in a power source with leakage and overload protection.
The power supply should be used in places with room temperature, normal humidity level and without the presence of dust and
iron grindings.
The power supply should be positioned on a stable surface so that it will not fall to the ground due to vibrations.
The power supply should be used in places away from high voltage sources and noise generating sources so as to avoid
electromagnetic interference.
No objects should be placed on top of the power supply. Also, no objects should be placed in the immediate vicinity of the
power supply so that it may dissipate heat effectively.
 Before use, read the following:
 Please do not exchange the use mutually.
 The plug of the power cord is attached with ground pin, which must be connected to the outlet equipped with ground circuit to
avoid electric shock.
 The plug of the power cord must be tightly plugged into the outlet.
 For plugging and withdrawing the connecting cord of power supply and screwdriver, please hold the plug, do not pull the
cable to avoid short circuit of the internal cable.
ˍˍˍˍˍˍ
Serial No：

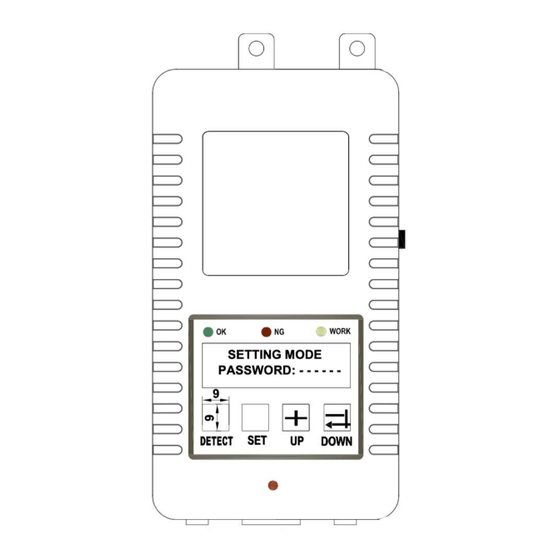

Screwing Manager (Standard Type)
AM-30 AM-45 AM-65
1~60000
1~99
1~99
/
0.1~9.9 seconds
± 1~99%
Sound of OK and green LED light on/Sound of NG and red LED light on
PLC output
100~240 VAC
20~30 VDC 20~35 VDC 20~30 VDC
(5P) (5P) (5P)
75W 75W 60W
ASA-S2000M
BS-2000 ASA-2000
-S2500M
ASA-2000M
BS-3000 ASA-3000
-3000M
BS-4000/F ASA-4000
-4000M
-5600M
BS-6000 ASA-4500
ASA-7000
BS-6500 ASA-5000M
ASA-8000
152(L) x 83(W) x 60(H) mm
0.6 kg
 The internal connecting wire of the plug at the output end of the unit is specially used for electric screw driver, which shall not
be used for other purpose.
5P-5P/6P-6P: needle NO: 1 is "-"potential and NO: 4 is "+" potential.
 When plug the connecting cord into the driver or the power supply socket, for it has direction, so insert it in powerfully when
align with guiding point in the socket; then twist it to fix it on driver or power supply. Thus it will reduce the occurrence
breakage of connecting cord due to drag.
AM-85
 Please operate the electric screwdriver under 70% of the rated maximum torque to avoid the clutch can not escape correctly
(The rate maximum torque may vary with the flexibility of the locked object).
 If the unit is not used for long time, please draw out the plug from the outlet and keep it carefully and clearly.
 Troubleshooting
If the screwdriver does not work properly, check the list below. If you cannot solve the problem do not open the unit.
Contact one of our authorized agents as soon as possible.
 The screwdriver is out of operation:
‧Inspect whether the plug of the power cord is correctly and tightly plugged into the designated power source.
20~30 VDC
‧Inspect whether has 30, 35VDC or designated output voltage between 5P-5P/6P-6P needle NO: 1"-" potential
(6P)
and NO: 4"+" potential.
75W
‧Inspect whether has short circuit between any 2pin at the plug of 5P-5P/6P-6P connecting cord; if yes, please replace
ASA-6000
with new cord or plug, especially for the plug at the screwdriver side.
‧Inspect the relay of the break circuit, whether the contact point is fused and can not be separated (NO→NC).
-6500
Inspecting method: lightly vibrate the unit for 2-3 times; if there is a voice of "ka", it means the contact point of the relay
-6800
is separated; then operate the screwdriver, if the screwdriver back to normal, please replace a new relay (this should be
-7500
operated by technician).
-8500  The screwdriver keeps rotating:
‧Inspect the relay of the break circuit, whether the contact point is fused and can not be separated (NO→NC).
-9000
Inspecting method is same as above item.
 The screwdriver can not stop automatically when the clutch shut off at preset torque:
‧Inspect the relay of the break circuit, whether the contact point is fused and can not be separated (NC→NO).
Inspecting method is same as above item.
 Warranty
We provide a one-year free repair service warranty with this product. The warranty is good for one year from the date
of purchase entered on the Product Information Form. The retailer's stamp must appear on the form to confirm the date.
However, the following circumstances we will charge the user for any parts and labor cost associated with repairs.
For repair involving normal wear to parts including carbon brushes, bits, power cord, connecting cord and the exterior
surface parts.
 Improper use of the electric screwdriver may cause a discontinuity between the two ends ( "5P" to "5P" or "6P" to "6P") of
the connector cord.
 The unit was not plugged to designated power source.
 If there was inappropriate use or attempt to repair unit by user.
 Out of the guarantee or if the user can not present the manual with seller's stamp.
Retailer's
Stamp
◎Specifications and design may be changed without notice for improvement(A-0)
GUIDE NOTCH
GUIDE NOTCH
COVEX POINT COVEX POINT
COVEX POINT
3P PLUG 5P PLUG
RECEPTACLE RECEPTACLE
(SCREWDRIVER SIDE) (SCREWDRIVER SIDE)
(SCREWDRIVER SIDE)
GUIDE NOTCH
6P PLUG
RECEPTACLE
