ASA Electronics AP-20 Product Introductions

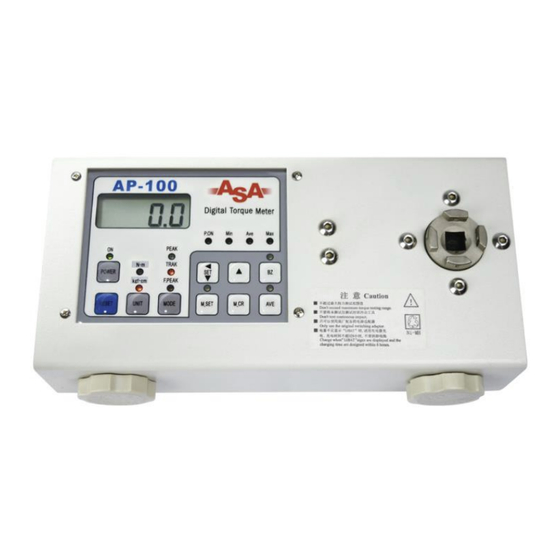

High-precision torque meter
Hide thumbs

Advertisement

Table of Contents

High-precision Torque Meter
Product Introductions
Shanghai Pro-Hand Electric Screwdriver CO., LTD
No.81 Youdong Road, Minhang District, Shanghai
Email: asa@shasa-tool.com
Website:Http://www.shasa-tool.com
Tel:021-64618707
Fax:021-64619180
AP-2
AP-100
AP-10
AP-300
AP-20
AP-500
AP-50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-20 and is the answer not in the manual?

Questions and answers

Related Manuals for ASA Electronics AP-20

Summary of Contents for ASA Electronics AP-20

  • Page 1 High-precision Torque Meter Product Introductions AP-2 AP-100 AP-10 AP-300 AP-20 AP-500 AP-50 Shanghai Pro-Hand Electric Screwdriver CO., LTD No.81 Youdong Road, Minhang District, Shanghai Tel:021-64618707 Fax:021-64619180 Email: asa@shasa-tool.com Website:Http://www.shasa-tool.com...

  • Page 2: Table Of Contents

    Table of Content ■ Special Thanks to our customer Thank you for choosing our high-precision torque meter. To ensure the tool fully utilizes its maximum performance and extend its life, please read this manual before use. -Table of Content- General Safety Warnings ..................... 03 Read before use ........................

  • Page 3: General Safety Warnings

    General Safety Warnings ■General Safety Warnings WARNING : Read all safety warnings and all instructions Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. ■Work area safety -Keep work area clean and well lit.
  • Page 4 General Safety Warnings ■Personal safety -Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 5: Read Before Use

    Read before use Read before use ■Please read the following notices before use: It is prohibited to exceed the maximum torque value described in Technical indexes on Page 3; if the torque exceeds rated measuring value by 120%, it will damage interior of tester. -The battery charger shall not be used for other batteries except NIMH battery, even the battery (Non-NIMH battery) is produced by its own manufacturer.

  • Page 6: Declaration Of Conformity Ce/Service

    Declaration of Conformity CE/Service ■Declaration of Conformity CE We (ASA Enterprise Corporation) declare under our sole responsibility that the products high-precision torque meter described under this manual are in conformity with the following Directives/ or standardization documents: EMC Directive 2014/30/EU. ■Service Have your high-precision torque meter serviced by a qualified repair person using only identical replacement parts.

  • Page 7: Detection And Calibration

    Detection and Calibration ■Inspection and calibration -The unique sensing mechanism adopted by this tester can ensure long-term accuracy. The tools used for checking its accuracy is also provided. Even though, we suggest returning the torque tester back to manufacturer for inspection annually. (Please be noted that this service will be charged). -Delivery of tester shall comply with precision standard of our company.

  • Page 8: Product Information

    Product Information ■Feature -Wide measuring range, high accuracy and the models are complete. -Attached the measuring joint (either one) can be run clockwise or counter-clockwise to measure the o/p torque with usual bit and the measured value will be cleared in setting time automatically. -There are two measuring units: kgf-cm/ N.m and three measuring models: PEAK/TRACK/F.PEAK for choosing to operate easily.
  • Page 9 Product Information ■Integrated Outline Drawing (AP-2/10/50/100) Outline dimensions of all models are the same. -Note: Technical specifications or appearance of torque tester are subject to alternation without prior notice ■Separated Outline Drawing (AP-300)
  • Page 10 Product Information ■ Outline...
  • Page 11 Display test unit MODEL Kgf.cm AP-02/AP-10 0.00 0.000 Display Screen AP-20/AP-50/AP-100 0.00 AP-300/AP-500 0.00 UNIT Select corresponding measuring units below based on customer’s demand :N.m<->kgf-cm PEAK: lock display when the torque reaches peak value (press RESET to cancel). MODE TRACK: displays change to current torque value.

  • Page 12: Operation

    Operation ■ Selection of Joint for Measurement Some “joint for measurement” is attached to this product. At the time of measurement of a tool, the joint corresponding to a tool is surely used. ■ ASJ Joint ASJ joint is used for measurement of an electric driver. In case joint is chosen, tolerance level is checked and it is cautious of exaggerated torque enough.
  • Page 13 Operation ‧When there is unusual sound while operating. ■ Operation instructions First check battery charging state. When power starts and battery capacity is insufficient, “LOBAT” will be displayed. In such case, please charge the battery with battery charger for at least 3 hours but no more than 6 hours.
  • Page 14 Operation ■ Function Description DIP switch: Make sure to switch off power supply before replacing DIP switch. ‧Automatic Reset ‧Note: -After starting automatic reset function, the RESET key does not work. ‧Data output -Computer monitoring software can be selected; refer to operation manual of monitoring software of ASA torque meter for specific functions.
  • Page 15 Operation ■ Set functions of torque buttons -Buttons ① 【SET】 1. Press the button for 2 seconds to enter torque setting mode and press again for 2 seconds to quit it. 2. When tester is in torque setting mode, the four-digi display can be adjusted with one digi each time. -Use SET to select digits for adjustment.
  • Page 16 Operation ■Measure the average torque value -Purpose: Manage the torque value during daily work. ■Process of measuring -Please conclude the minimum, average and maximum value in each measuring data; each data has more than 10 measuring values. 1. The measuring result will be arranged from 0001 to 0009, will not record the negative value. When the torque tester exits the average mode, the measuring values will be deleted automatically.
  • Page 17 Operation 1. Please make sure to set the MODE into “PEAK” or “F.PEAK” before entering the average measuring mode. 2. The UNIT button will not be able to work during the average measuring mode.
  • Page 18 Operation ■Use of Socket -Except test or threaded rod, joint adapter can also be used to insert tool head into socket for torque test. Pay attention to followings when using the joint adapter. -Pre-cautions in using joint adapter ‧Make sure the adapter is firmly inserted into socket. ‧Make sure the adapter will not break in test.

  • Page 19: Troubleshooting

    Troubleshooting ■Troubleshooting -If there is any functional defects occurs on the torque tester, please follow the below instruction to proceed the troubleshooting. If the problem cannot be solved by below instructions, please contact ASA Company or the distributors. Defect Cause Solution “LOBAT”...
  • Page 20 Enjoying in Technique of Assemblies Attention! The generic or unsuitable parts might seriously Retailer’s affect the torque meter’s lifespan, please purchase the parts from Stamp original manufacturer to secure your rights.

This manual is also suitable for:

Ap-100Ap-10Ap-300Ap-2Ap-500Ap-50
