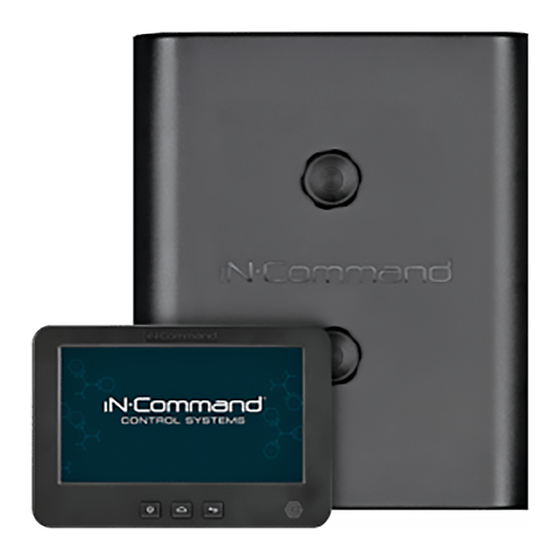

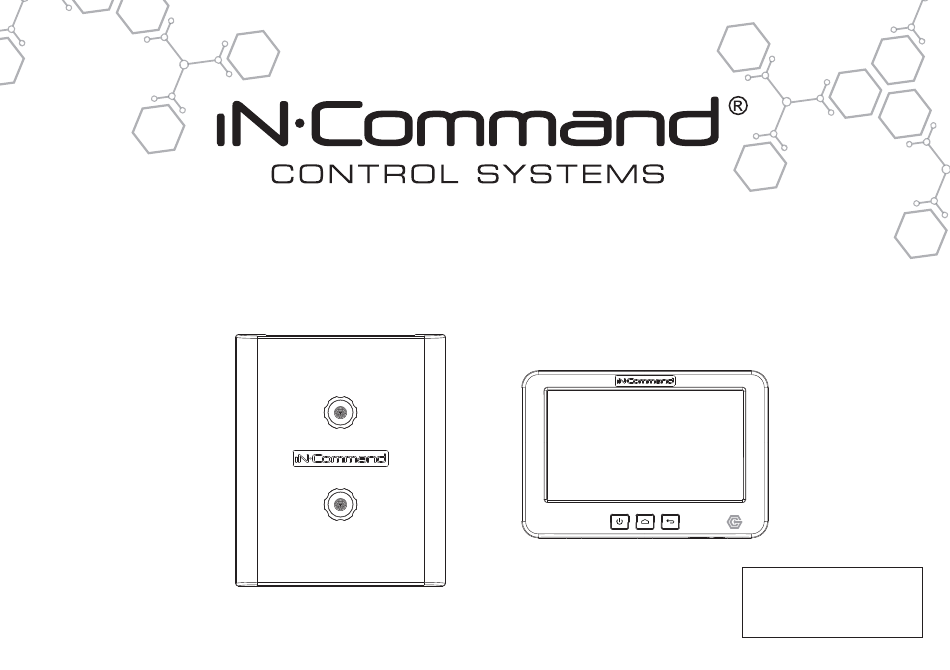

- Page 1 ™ NCSP3 RV CONTROL AND MONITORING SYSTEM Installation and Operation Manual Patent # (D776,068) Patent # (D762,644) Patent # US 9,679,735...
- Page 3 NCSP3 Important Safety Information Read the iN-Command Manual, and these warnings and instructions carefully before using this product. Failure to follow the use instructions in this owner’s manual, or improper use of the Mobile Application, Display Commander and/or Body Control Module, could result in personal injury, including death.
-
Page 4: Table Of Contents
NCSP3 • TABLE OF CONTENTS TABLE OF CONTENTS ............3 HVAC ......................23 INTRODUCTION ..............4 Vent Fans ....................23 Thank You! ................4 Fan Only Mode ..................23 AC Cooling ....................23 Features .................4 Heating ..................... 24 Precautions ................4 Auto ......................24 Packing List ................4 HVAC Schedule .................. -
Page 5: Introduction
NCSP3 • INTRODUCTION • Thank You! • Avoid Cleaning Products. The front of this unit should only be cleaned with a slightly damp cloth. Thank you for choosing a iN-Command product. We hope you will find Do not use cleaning products. the instructions in this owner’s manual clear and easy to follow. -
Page 6: Installation
NCSP3 • INSTALLATION • Mounting the Display Commander (DC) • Use the mounting hole diagram to measure and cut a mounting It’s a good idea to read all of the instructions before beginning hole, allowing space below for future programming via USB drive the installation. -
Page 7: Wiring
NCSP3 • WIRING The wiring diagram depicts all the wiring connections required for proper operation of the unit. BODY CONTROL MODULE (BCM) CONNECTIONS... -
Page 8: Setup Menu List
NCSP3 Settings • SETUP MENU LIST Bluetooth Scan Wi-Fi On, Off, Scan, Add Date & time Edit Awings Edit Awning Light No, Yes Passcode Setting Awning 1 In, Out Brightness Up, Down Awning 2 In, Out Calibration HVAC (Zone1, Zone2, Zone3) System Reset Floor Plan , Factory Mode... -
Page 9: Travel Lockout (Safety)
NCSP3 • TRAVEL LOCKOUT (Safety) iN-Command is equipped with a Travel Lockout feature to ensure certain system functions are unavailable during transit. When the Brake Signal on the tow vehicle is activated, the iN- Command will lock down all motorized functions. The Display Commander (DC) and mobile devices will also display “Travel Lock Engaged”... -
Page 10: Override Switches
NCSP3 • OVERRIDE SWITCHES The Body Control Module has a bank of override switches. The rotary switches below each rocker switch correspond to an electric function* made by the Display Commander. The left switch controls the awning and jacks. The right switch controls the slides. To use the override switches, locate the switch needed to actuate the desired component. -
Page 11: Specifications
NCSP3 • SPECIFICATIONS • FCC Notes NOTICE 1: Display Commander (DC) The changes or modifications not expressly approved by the party Operating Voltage ......12VDC responsible for compliance could void the user's authority to Maximum Current Draw . -
Page 12: Passcode Protection
NCSP3 • PASSCODE PROTECTION • SETTINGS A passcode is required to access the system. From the Menu screen you can: On the first time use of the system, the user is required to enter • Edit iN-Command function text and confirm a new passcode. •... - Page 13 NCSP3 2. Press “Edit” to enter “Edit” page 4. Long press the intended text, e.g., "Light Group 3" 5. Use the keyboard to edit the name, then press "Save" 3. Select the function to edit. Note: Editing the text on the DC will not change the text on a device’s App.
-
Page 14: Scroll List Editing
NCSP3 • Scroll List Editing* 1. Select “Settings”. 3. Select the funcition to edit. 2. Press “Edit” to enter “Edit” page 4. Use the Up and Down arrows next to the function to move the item in the list. -
Page 15: Triggers
NCSP3 • Alarm Inputs • Triggers Triggers can be added to the system. “Momentary” or “Latch” can Alarm inputs can added to the system. be selected for each Trigger. Note: Desired devices need to be Note: Desired devices need to be correctly wired to the BCM to correctly wired to the BCM to function. -
Page 16: Set Passcode Timer
NCSP3 2. Press “Passcode” to enter passcode setup. 3. The passcode setup window will open. Clear Passcode • Set Passcode Timer 2.1 Enter the correct passcode to proceed. Press “Set Timer” select the idle time to activate the passcode protection. -
Page 17: Change Passcode
NCSP3 • Change Passcode • Clear Passcode 1. Press the “Change Passcode” button to change to a new Press the “Clear Passcode” to clear the passcode. passcode. This will restart the App, take the user to the End-User License 2. Enter the new passcode. Agreement, and have the user setup a new passcode. -
Page 18: Mobile Devices
NCSP3 • MOBILE DEVICES: iN-Command is able to pair to Android and iOS devices using the iN-Command App. Visit the Google Play and Apple App stores on your mobile device to check compatibility of your device. Seven mobile devices are able to be paired to iN-Command at one time, but only 1 iOS and 3 Android devices are able to be actively paired;... -
Page 19: Pairing Mobile Device To Dc
NCSP3 • Pairing Mobile Device to DC 2.1 Select the "Bluetooth" tab. 1. Enable "Bluetooth" in the system settings of the mobile device 2. From the DC Home page, select "Settings" 2.2 Select "Pairing" to pair devices and view current paired devices. - Page 20 NCSP3 2.3 Press Scan to start scanning for Unpaired devices. 2.5 A Bluetooth Pairing request will appear on the DC and Locate the mobile device in the Unpaired Device list. mobile device. Select the device by pressing it. 2.6 Press "Pair" on the DC. 2.4 A Popup with the device name will apear on the display.
- Page 21 NCSP3 2.8 The mobile device will be displayed in the "Paired Devcies" 2.10 The mobile device now shows that the DC is connected. list on the DC 2.9 The DC will be displayed on the mobile device list in the format "...
- Page 22 NCSP3 4. Reset Floor Plan Press the “Reset” button in the Menu page to load the floor plan configuration from the DC. The current settings will be lost/replaced.
-
Page 23: Checking Active Bluetooth Session
NCSP3 • CHECKING ACTIVE BLUETOOTH SESSION 1. Select “Status”. * To disconnect a handheld device, press “Disconnect”, or simply shut down the device’s App. This function is used to disconnect a device that is not actively being used, and to allow another device to be connected. -
Page 24: Hvac
NCSP3 • HVAC From the HVAC page, you can control the Heating, Ventilation and Air conditioning functions in the RV. Witch iN-Command, you can control up to 4 HVAC zones and schedule times for the HVAC function to be active. •... -
Page 25: Heating
NCSP3 • Auto • Heating Auto Mode will automatically switch between Cool and Heat 1. Select the desired Zone. Press the "Mode" button to modes to reach the desired Set temperature. switch to "Heat" mode. (Heat Mode is only available in Zones with Heat Mode selected on Floor Plan). -
Page 26: Hvac Schedule
NCSP3 • HVAC Schedule • AUTO GENERATOR START The Schedule function allows you to set a temperature and choose 1. Press the "Generator" icon. a start and stop for when you want the HVAC function to operate. 1. Press the "Clock" icon at the bottom right corner of the HVAC home screen to enter the Schedule page. -
Page 27: Generator Schedule
NCSP3 5. The system wil attempt to start the generator 3 times. If it fails to start after the third attempt, the system will turn off the Auto 3. If the battery voltage is less than 11.8 volts for 3 minutes, feature and display a "Check Generator"... -
Page 28: Date & Time
NCSP3 • Date & Time 3. In the Date & Time page, press the "Edit" tab to adjust the date The Date & Time feature is used for the Generator and HVAC and time. scheduling functions. 1. Select "Settings". 4. Use the Calendar to select the Date and the Clock to change the 2. -
Page 29: Software Update
NCSP3 • SOFTWARE UPDATE* Software updates include floorplan redesigns and App version updates. 4. In the software page, you can choose to update the Floor Plan, DC Version, App Version and BCM Versions. 1. Insert USB drive loaded with updated software into the USB port at he bottom of the DC. - Page 30 NCSP3 6. Press the DC Version to update the DC OS sytem. 8. Press OK to continue. Press "UPDATE" 7. Framework Update, Press "Update" 9. Press the BCM Version to update the BCM system. Press"Updae".
- Page 31 Press " Update". 11. Press "Install". 13. Press " Dismiss" to confirem selection. * If a software update is needed, go to http://www.asaelectronics.com//in-command ** If there is a software issue, Call ASA Electronics Technical Support at 1-877-845-8750 or email them at info@asaelectronics.com.
-
Page 32: Reset: Floor Plan
1. Select "Settings". to a previous state. Current settings will be lost. a. Floor Plan: restores to previous floor plan settings from RV manufacturer. b. Factory: restores to default settings from ASA electronics. 2. Select "System Reset" in the Settings page. -
Page 33: Touch Screen Calibration
NCSP3 • TOUCH SCREEN CALIBRATION 3. To calibrate the Touch Screen, select "Set". Follow the 1. Select “Settings”. instructions.The DC will restart after calibration. 4. Touch the center of the cross. 2. Select “Calibartion”. -
Page 34: System Calibration
NCSP3 • SYSTEM CALIBRATION* 3. Make Selection. From the admin page, the App Date can be deleted, the Generator Hour Meter can be set, and the Water Tanks can be calibrated. 1. From the Settings page, press Administration. 6. Select “Tanks” to set resistor reference value for every tank. 2. - Page 35 ** The Admin Passcode is used by the manufacturer for programming and troubleshooting purposes. Should there be a calibration issue, call ASA Electronics Technical Support at 1-877-845-8750 or email them at info@asaelectronics.com. 8. Press the App Date "Delete" button to clear current App date.
-
Page 36: Trouble Shooting
See label on BCM cover for relay identification. DC shows 0V and no functions Check for shorts in RV-C cable and for loose pins in the connection. activate from DC For additional troubleshooting, call ASA Electronics Technical Support at 1-877-845-8750, email info@asaelectronics.com or visit our website http"//www.asaelectronics.com//in-command. - Page 37 NCSP3...
- Page 38 NCSP3...
- Page 40 ©2016 ASA Electronics LLC. MA-1705001-1R...
