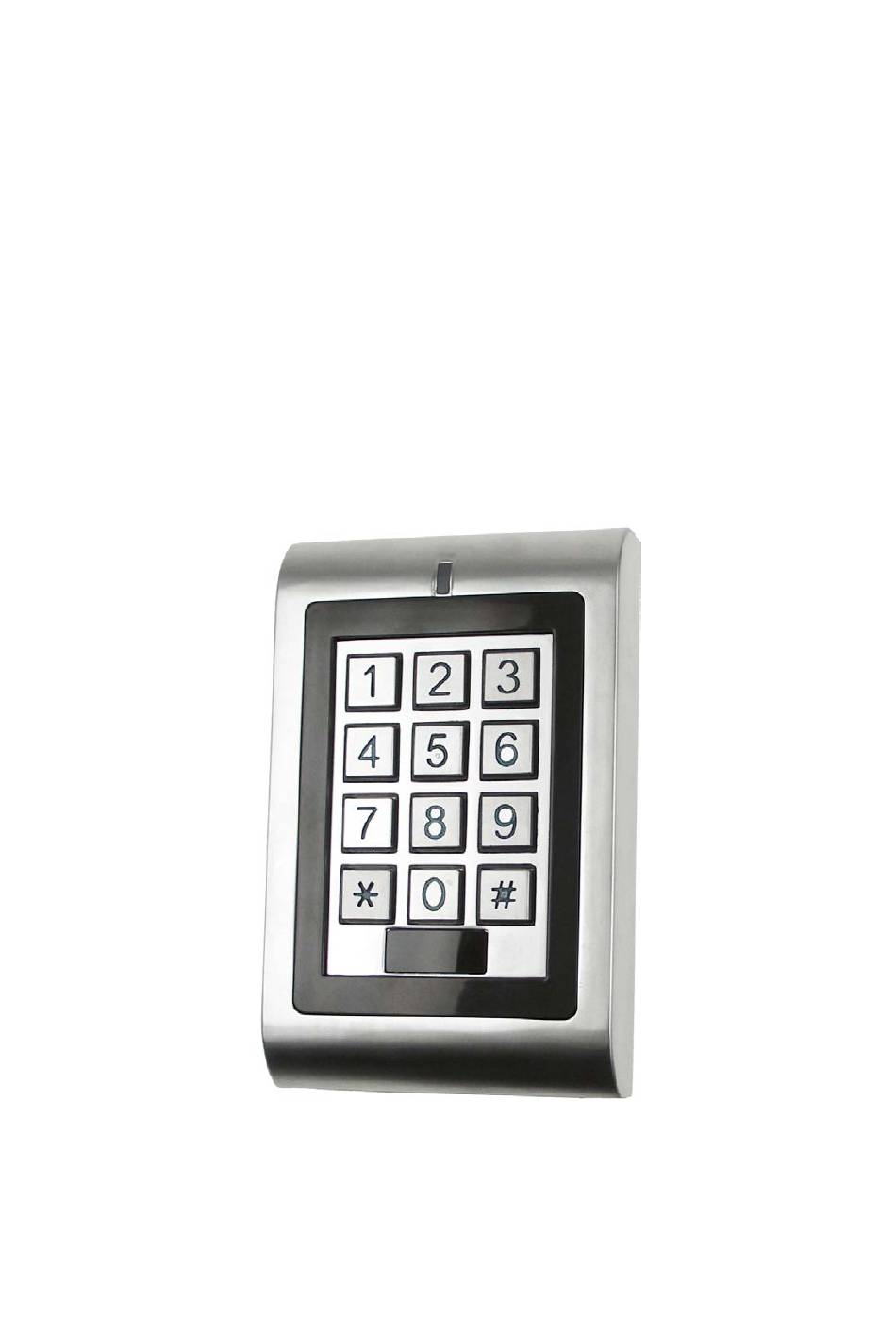

- Page 1 KP-401 Internal/External (V2-March 27th 2024 with Master Cards) Stand-Alone Keypad & Proximity Card Reader...
- Page 2 User Manual INTRODUCTION The K401-IE is a single relay multifunction standalone access control keypad suitable for indoor/external use It is housed in a strong, sturdy and vandal resistant Zinc Alloy electroplated case It supports up to 1000 users in a Card, PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM frequency card or key fob, and the Pin length is 4-6 digits The single relay can operate in Pulse Mode (suitable for access control) or Toggle Mode (suitable for arming/disarming alarms, switching lights, machines….etc)
-
Page 3: Specifications
Specifications: User Capacity 1000 Cards/PINS 1000 (0-989 standard users and 10 visitor users) Operating Voltage 12-24V DC Idle Current 35mA Active Current 80mA Keypad 12 Key (3*4) Proximity Card Reader Radio Technology 125 KHz Industry Standard Proximity Card Read Range 25mm-35mm Wiring Connections Relay Output, Exit Button... -
Page 4: Installation
INSTALLATION Remove the back cover from the unit Drill 2 holes (A,C) on the wall for the screws and one hole for the cable Knock the supplied rubber bungs to the screw holes (A,C) Fix the back cover firmly on the wall with 4 flat head screws ... - Page 5 PROGRAMMING Programming will vary depending on access confirguration. Follow the instructions according to your access configuration Programming 1 -------------------- Configure the K401-IE Change the configure settings according to your application (optional). Multiple configuration settings can be changed at one time: enter program mode, change the desired settings, then exit program mode Set Master Code The 6 digit Master Code is used to prevent unauthorized access to the system.
-
Page 6: General Programming Information
Keypad lock-out Alarm The keypad lock-out alarm will engage after 10 failed card/PIN attempts. Factory default is OFF. The strike-out alarm can be set to deny access for 10 minutes after engaging or it can be set disengage only after entering a valid card/PIN or Master Code Programming Step Keystroke Combination... - Page 7 ACCESS CONFIGURATION: CARD OR PIN & CARD ONLY Add User Cards/Key fobs Programming Step Keystroke Combination ﹡(Master Code) # 1. Enter Program Mode 2. Add Card: Using Auto ID 1 (Read Card) # (Allows K401-IE to assign Card to next Cards can be added continuously available User ID number) 1 (User ID) # (Read Card) #...
- Page 8 ACCESS CONFIGURATION: CARD+PIN Add a Card+ PIN User Programming Step Keystroke Combination ﹡(Master Code) # 1. Enter Program Mode 2. Add a User Card by ID number 1 (User ID) # (Read Card) # 3. Exit Program Mode 4. Add PIN * (Read Card) (1234#) (New PIN #) (New PIN #) This operation is executed from outside of Program Mode...
- Page 9 Set Audio sound & Visual LED display LED status always OFF 62 # LED status aways ON 63 # (Default) Keypad back lit always OFF 64 # Keypad back lit always ON 65 # We recommend this setting Keypad back lit Automatic OFF (Default) 66 # After 20 seconds the keypad backlight will go off and...
-
Page 10: S Ound And Light Indication
ound and Light indication Operation Status Red LED Green OR Sounds Yellow LED Power on Short Single Bleep Stand by Press Keypad Short Single Bleep Enter Master Code Entry Mode Short Single Bleep In program mode Yellow on Short Single Bleep Entered Program Step Successfully Short Single Bleep Entered Program Step Incorrectly... - Page 11 Anti Tamper Alarm The K401-IE’s alarm trigger is activated by an LDR (Light Dependant Resistor) which is located to the lower side of the unit as illustrated below using the K401-E The alarm function is designed as an ‘Anti-Theft’ facility. Forceful removal of the installed keypad or a sudden change in light source will trigger the keypad to bleep constantly.
