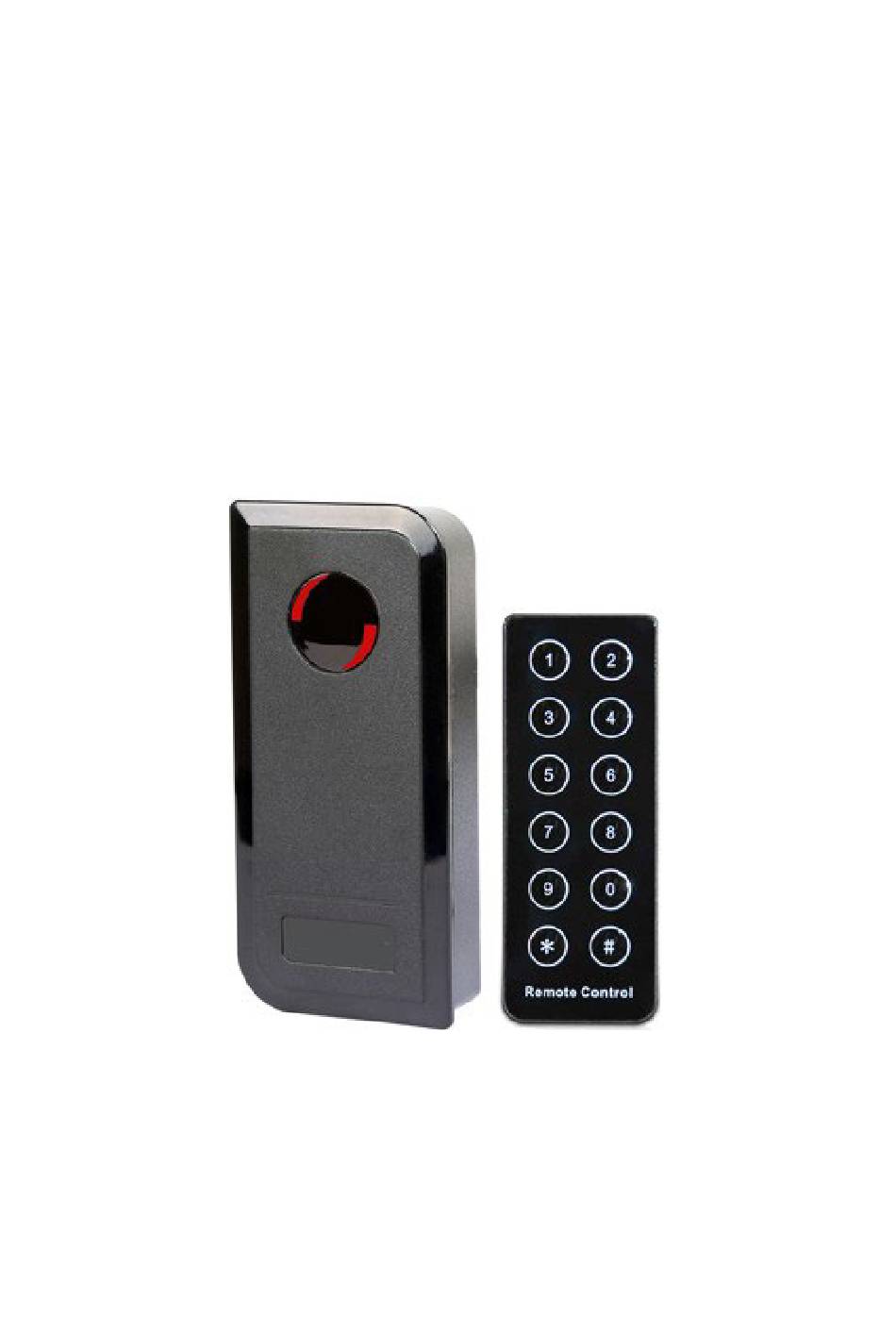

- Page 1 SR2-X Proximity, Wiegand & Mifare Card Reader with Remote Control User Manual...
-
Page 2: Specifications
INTRODUCTION The SR2-X is a compact, weather resistant multi-function card reader that can be used as a standalone programmable access control card reader as well as a Wiegand output card reader providing proximity entry for up to 1000 users, (987 common users, 2 panic users, 10 visitor users & 1 x Authorized user) PIN access is... -
Page 3: Package Contents
Package Contents SR2-X Card Reader Infrared Remote Control Master Add/Delete card & 10 x EM-RFID user cards or key fobs Diode IN4004 (For relay circuit protection) Self Tapping Screws: 3*25mm Wall Anchors Screw Driver... -
Page 4: Installation
INSTALLATION Remove the back cover from the unit Drill 2 holes (A,C) on the wall for the screws and one hole for the cable Knock the supplied rubber bungs to the screw holes (A,C) Fix the back cover firmly on the wall with 4 flat head screws ... -
Page 5: Connection Diagram Examples
Connection Diagram Examples Common power supply for magnetic lock (Fail open – power to lock) Common power supply for lock release (Fail secure – power to unlock) Common power supply for auto gate controller (using Normally Open contact) - Page 6 PROGRAMMING Programming will vary depending on your access configuration. Please follow the instructions according to your access configuration General Programming Information – Two ways 1) Remote Control: Please use the Infrared Remote Control to program the Reader. The infrared receiver head is near the LED, so when you program the reader, please direct the Remote Control to the LED (Factory default code: *123456#) User ID number: Assign a User ID to the access card/key fob in order to easily delete it via the remote...
- Page 7 77 # is factory default for stand-alone 2. Stand-alone Operation 3. Wiegand Reader Operation 78 # 4. Exit Program Mode User data transfer connection (1 x power supply and 9 x SR2-X units) Set User Data Transfer Programming Step Remote Control Operation 1. Enter Program Mode * (Master Code) # 2.
- Page 8 Enter and Exit Program Mode Via the Remote Control Programming Step Remote Control Operation * (Master Code) # 1. Enter Program Mode Factory default is 123456 2. Exit Program Mode Set New Master Code Via the Remote Control Programming Step Remote Control Operation 1.
- Page 9 2. Add Card: Using Auto ID number 1 (Present Card) # Repeat Step 2 for additional user cards (Allows the SR2-X to assign Card to next available User ID number) 3. Add Card: Select Specific ID number 1 (User ID) # (Present Card) #...
- Page 10 Add Visitor Users via the Remote Control Up to 10 Visitor Users can be added and allowed no more than ten times of usage until they are automatically invalid. The USER ID numbers must be 990-999 for this function to operate Programming Step Remote Control Operation 1.
-
Page 11: Reset Procedure
Set Strike-out Alarm The strike-our alarm will sound after 10 failed card attempts (Default setting is OFF). It can be set to deny access for 10 minutes after engaging or disengage only after entering a valid card/PIN or Master Code/Card Programming Step Remote Control Operation * (Master Code) #... - Page 12 The SR2-X’s alarm trigger is activated by an LDR (Light Dependent Resistor) which is located to the rear left side of the unit as illustrated below The alarm function is designed as an ‘Anti-Theft’ facility which cannot be disabled but it can be stopped by...
