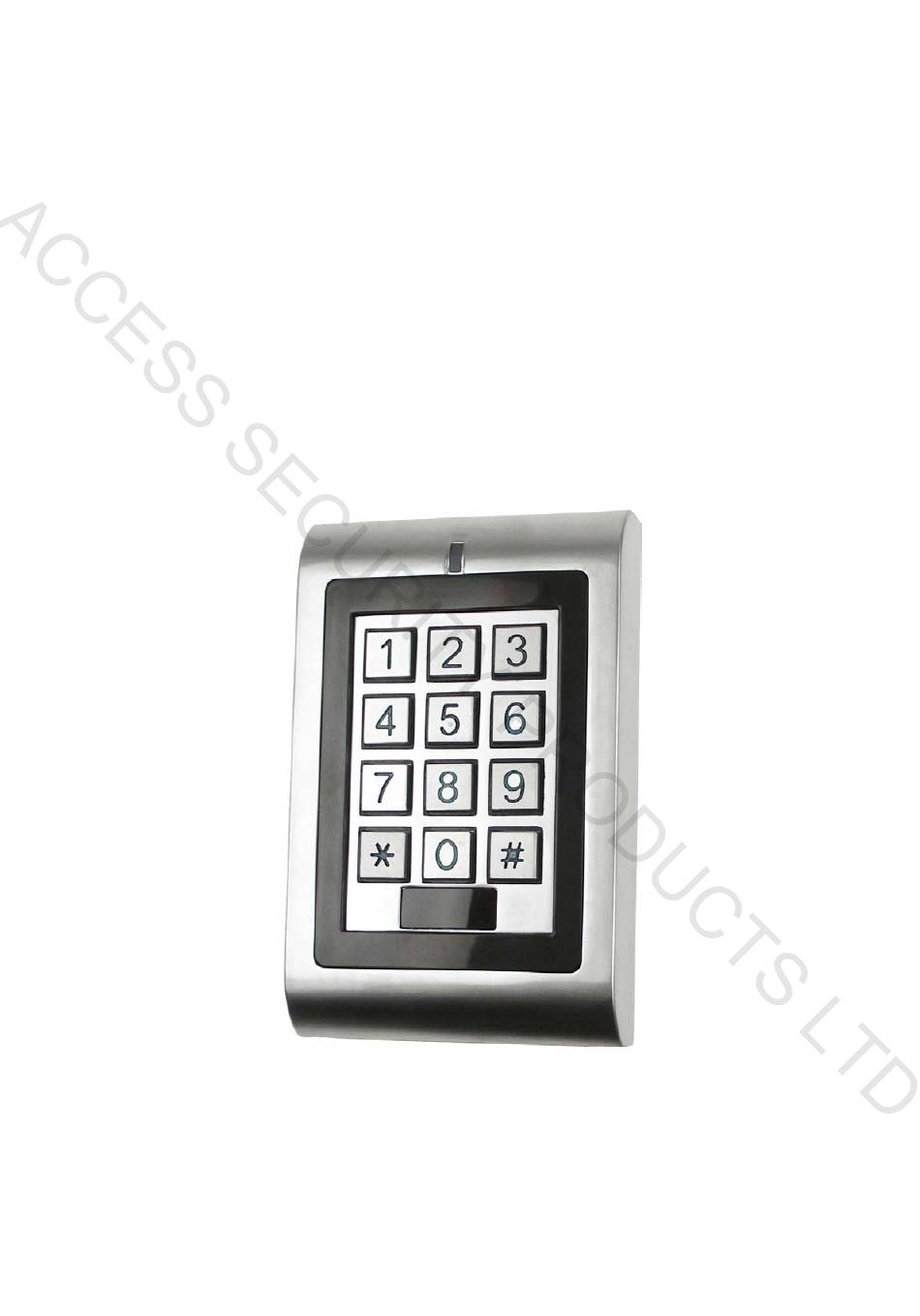

- Page 1 KP-401-EX External Stand-Alone Keypad & Proximity Card Reader User Manual...
- Page 2 INTRODUCTION The K401-E is a two relay multifunction standalone access control keypad suitable for either indoor or outdoor use. It is housed in a strong, sturdy and vandal resistant Zinc Alloy electroplated case. The electronics are fully potted making it extremely weather resistant and conforming to IP66 It supports up to 1100 users in a Card, PIN, or a Card + PIN option.
-
Page 3: Specifications
Specifications: User Capacity 1100 Cards/PINS Relay 1 1000 Relay 2 Operating Voltage 12-24V DC / 12-18V AC Idle Current 55mA Active Current 80mA Keypad 12 Key (3*4) Proximity Card Reader Radio Technology 125KHz Industry Standard Proximity Card Read Range 25mm – 35mm Wiring Connections Electric Lock, Exit Button, DOTL, External Alarm, Door Bell... -
Page 4: Installation
INSTALLATION Remove the back cover from the unit Drill 2 holes (A,C) on the wall for the screws and one hole for the cable Knock the supplied rubber bungs to the screw holes (A,C) Fix the back cover firmly on the wall with 4 flat head screws ... -
Page 5: Connection Diagram Examples
Connection Diagram Examples Common power supply for magnetic lock (Fail open – power to lock) Common power supply for lock release (Fail secure – power to unlock) Common power supply for auto gate controller (using Normally Open contact) Comments: Relay 2 can be used to operate a doorbell if there is no need to operate a second door. The wiring to connect the doorbell is via NO2 and COM2. -
Page 6: Function Description
Function Description Relay operation (Pulse mode and Toggle mode) Both relays can operate in Pulse Mode (suitable for access control) or Toggle Mode (suitable for arming/disarming alarms, switching lights, machines….etc) Every time a valid card/fob is presented or a Pin input is made in Pulse Mode, the relay will operate, for the pre-set relay pulse time Every time a valid card/fob is presented or a Pin input is made in Toggle Mode, the relay changes state, which will not revert until a valid card/fob is re-presented or a Pin input is re-made... -
Page 7: User Settings
SET ACCESS CONFIGURATION • Card or PIN (Default): The User must present a valid card/fob to the K401-E or enter their PIN code followed by the # key, in order to be granted access • Card + PIN: The User must first present a valid card/fob to the K401-E and then enter their PIN code followed by the # key, in order to be granted access Programming Step Keystroke Combination... - Page 8 To add Card Users. (Method 1) Read card This is an easy way to enter Cards can be added continuously without exiting programming mode cards with auto-generated ID numbers The ID number will start from 1 if no user has been programmed To add Card Users.
-
Page 9: Toggle Mode
Card and PIN Mode To set users for relay 1. 4 To Add a card and Pin user Add the card as for a card user (The PIN is any four-six digits Press * to exit from the programming mode between 0000 &... - Page 10 Door, Alarm, Acoustic Signal, Door Bell Settings Door Open Detection Door Open Too Long (DOTL) warning . When used with an optional magnetic contact or built-in magnetic contact of the lock, if the door is opened normally, but not closed after 1 minute, the internal buzzer will bleep automatically to remind people to close the door and continue for 1 minute before switching off automatically Door Forced Open warning.
- Page 11 Others Using Master Cards Using Master Card (It is only available for relay 1) 1. (Read Master Add Card) Add a User Card 2. (Read User Card) Repeat Step 2 for additional user cards 3. (Read Master Add Card) 1. (Read Master Delete Card) Delete a User Card 2.
- Page 12 Sound and LED indication Operation Status Red LED Green LED Blue LED Sounds Power On Flashing Short Single Bleep Standby Flashing Press Keypad Flashing Short Single Bleep Enter Master Code Entry Mode Short Single Bleep In program mode Single Flash Short Single Bleep Entered Program Step Single Flash...
