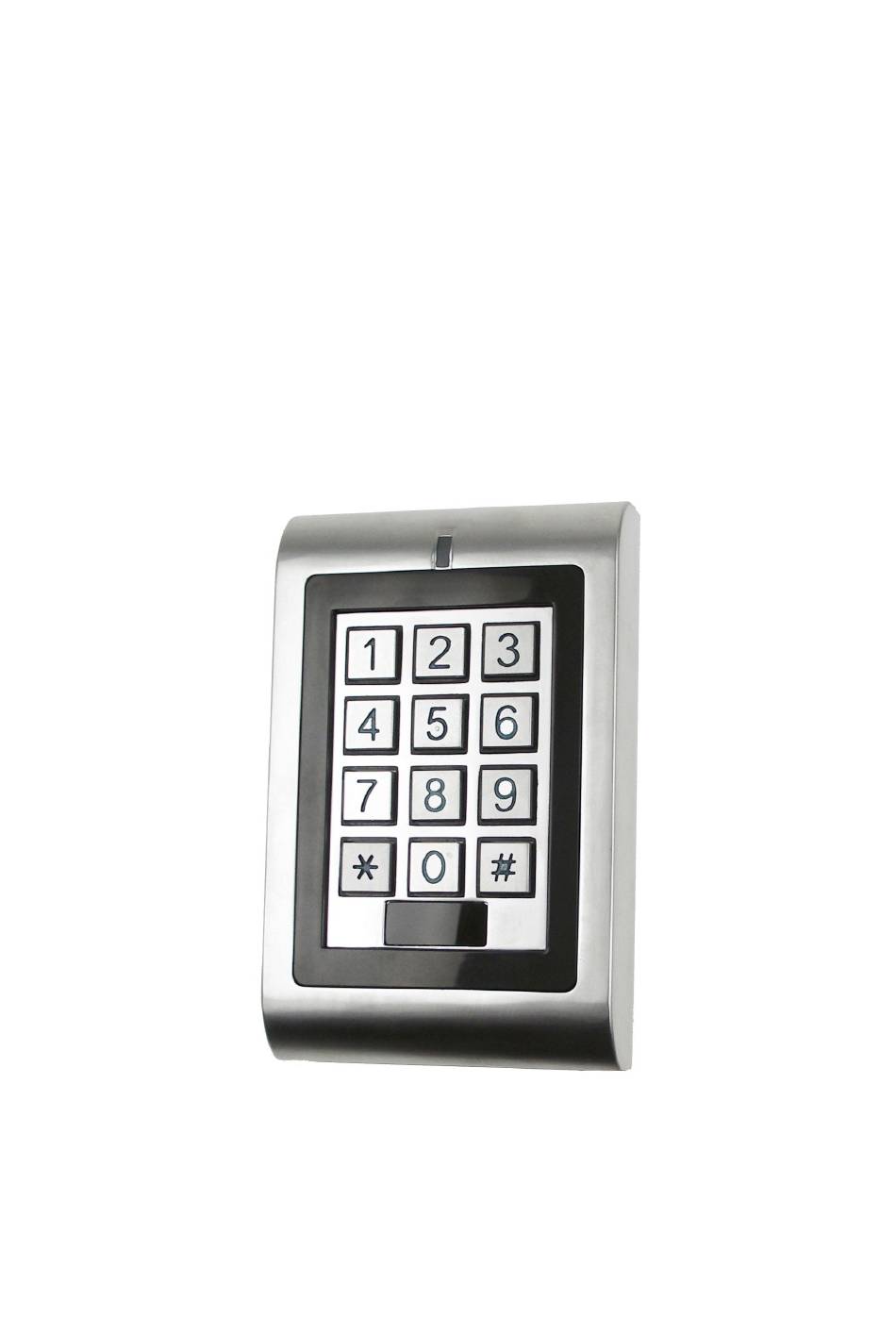

- Page 1 K401-EW Internal/External Stand-Alone Keypad & Proximity Card Reader User Manual...
-
Page 2: Specifications
The K401-EW has many extra features including block enrollment, anti-tamper alarm & backlit keypad buttons These features make the K401-EW an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories etc... -
Page 3: Installation
Package contents K401-I Keypad Diode IN4004 (For relay circuit protection) Self Tapping Screws Wall Anchors Screw Driver INSTALLATION Remove the back cover from the unit Drill 2 holes (A,C) on the wall for the screws and one hole for the cable ... -
Page 4: Function Description
Anti-tamper Alarm – Please the last page for this The K401-EW uses an LDR (light Dependent Resistor) as an anti-tamper alarm. If the keypad facia is removed, or a sudden change in light source, the tamper alarm will bleep constantly PROGRAMMING Programming will vary depending on access confirguration. - Page 5 • Card Only: The User must present a valid Card to the K401-EW in order to be granted access • Card + PIN: The User must first present a valid Card to the K401-EW and then enter their PIN code...
-
Page 6: General Programming Information
﹡(Master Code) # 1. Enter Program Mode 2. Add Card: Using Auto ID 1 (Read Card) # (Allows K401-EW to assign Card to next Cards can be added continuously available User ID number) 1 (User ID) # (Read Card) # 3. - Page 7 Visitor User Settings There are 10 visitor ID’s available for PIN or Card/Fob use to a maximum of 10 tens after this, the PIN, Card or Fob will become invalid automatically ** Ensure Visitor User ID’s are deleted after use ** PIN’s must not be the same as any other PIN programmed Programming Step Keystroke Combination...
- Page 8 3. Exit program mode Others Reset to Factory Default: This will reset the K401-EW to factory default but all card/PIN information will still be retained 1. Power the K401-EW down 2. Press and hold the * button and power up the K401-EW 3.
-
Page 9: Operation
K401-EW- Simplified Instruction Function Description Operation * (Master Code) # Enter the Programming Mode (123456 is the default factory master code) 0（New Master Code）#（Repeat New Master Code）# Change the Master Code (code: 4 digits) 1 (Read Card) # Add Card User... - Page 10 Anti-tamper Alarm The K401-EW’s alarm trigger is activated by an LDR (Light Dependant Resistor) which is located to the lower side of the unit as illustrated below using the K401-E The alarm function is designed as an ‘Anti-Theft’ facility. Forceful removal of the installed keypad or a sudden change in light source will trigger the keypad to bleep constantly.
