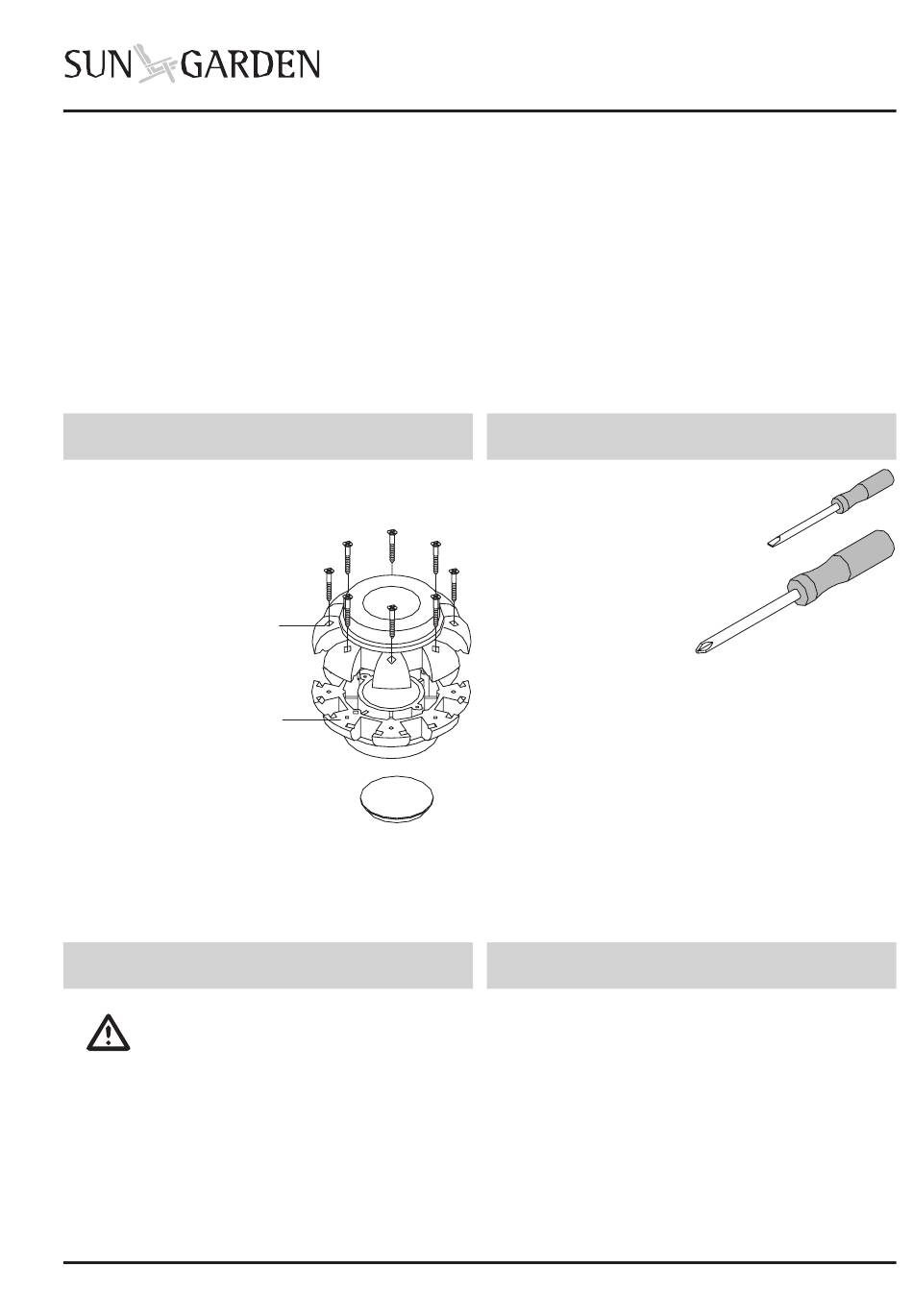

The repair instructions describe
replacing the
• seat for the sunshade frame
Easy Sun
in the
sunshade.
Included in delivery
➀
Sunshade frame seat;
consisting of upper and lower liner
➁
Eight fixing screws
Upper liner
Lower liner
➂
Cover for cable seat
Safety note
Caution: Risk of trapping!
There is increased risk of trapping
at all sunshade frame joints.
• Bear these hazard locations in mind
while working.
Issue: 04.2004
PARASOL Hanging
➁
➀
➂
Subject to alterations due to technical improvements.
R
SUNSHADE FRAME SEAT
These repair instructions are intended only for persons
with experience of using the tools required.
Please read the instructions carefully through before
working. Damages caused by non-observance of the
instructions are excluded from any liability and guarantee
The repairs described below should be carried out by two
people.
Tools required
❏
Screwdriver; blade width: 3.5 mm
❏
Phillips screwdriver No. 2
Contents
2.0 Releasing the cable ___________________ 3
EPAIR INSTRUCTIONS
Page 1
:
