sun garden Easy Sun Repair Instructions

Parasol sunshade
Hide thumbs Also See for Easy Sun:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

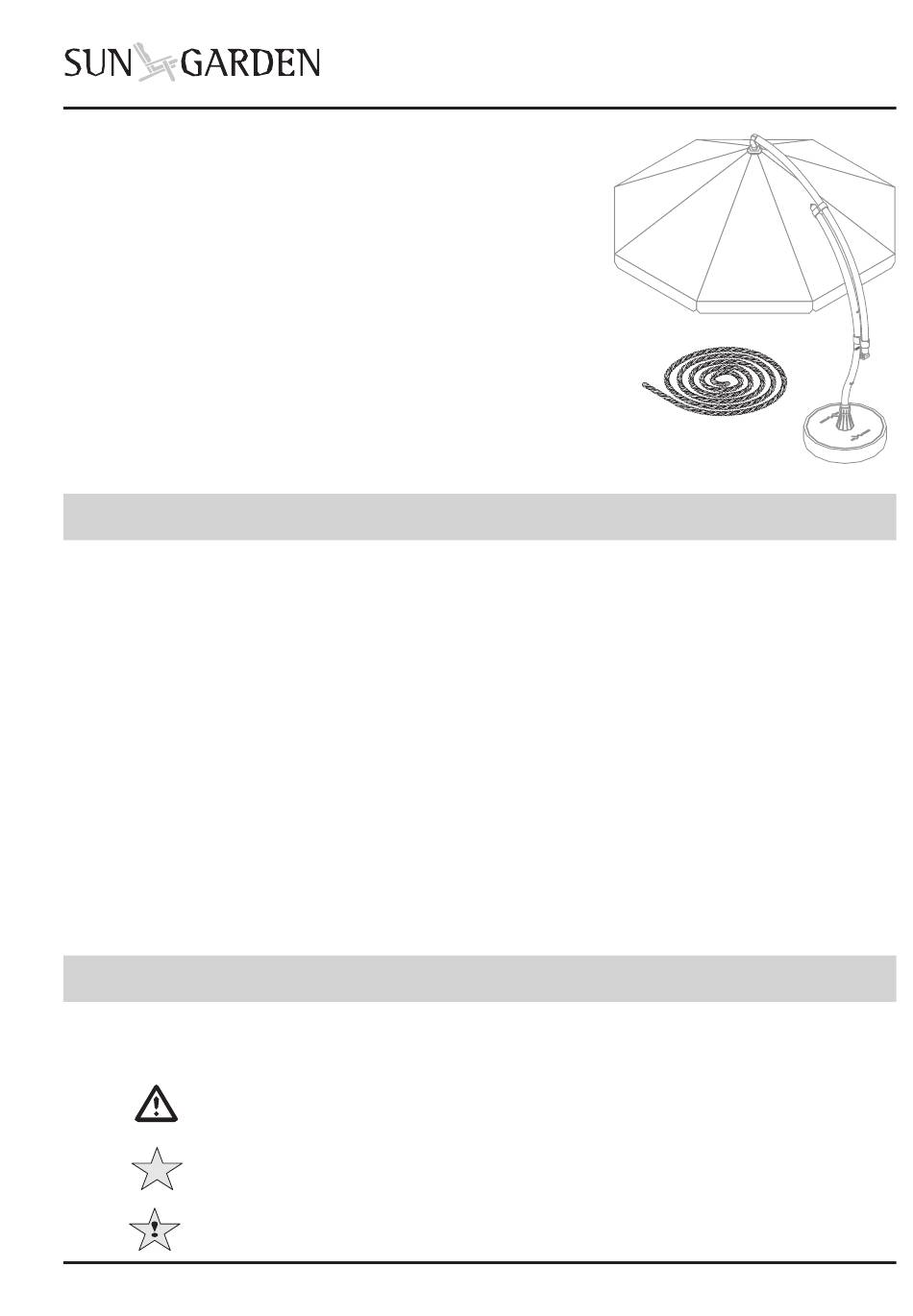

The repair instructions describe replacing the
• Cable
Easy Sun
in the
These repair instructions are intended only for persons with
experience of using the tools required.
Please read the instructions carefully through before working.
Damages caused by non-observance of the instructions are
excluded from any liability and guarantee.
We cannot guarantee that the repair described can be carried out
without damaging the components involved.
The repairs described below should be carried out by two people.
Contents
1.0 Safety information _____________ 1
1.1
Important symbols ________________ 1
1.2
Safety information ________________ 2
3.0 Tools ________________________ 3
4.0 Preparation ___________________ 3
4.0
4.3
from the frame ___________________ 4
4.4
4.5
Remove ball joint _________________ 5
4.6
4.7
Remove winch handle _____________ 6
4.8
4.9
Removing cable drum _____________ 6

1.0 Safety information

1.1 Important symbols

Special information is labelled with the following graphics in the manual:
Caution!
This symbol identifies information which refers to danger of injury and accident.
Note
This symbol identifies general tips for handling.
Note
This symbol identifies information which can avoid damage to the sunshade.
Issue: 06.2004
PARASOL Sunshade.
Subject to alterations due to technical improvements.
R
EPAIR INSTRUCTIONS
5.0 Fitting new cable ______________ 7
8.0
joint part _______________________ 7
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
6.0 Final check __________________ 12
:
C
ABLE
Page 1
