PACKAGE CONTENTS
A
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
Mounting Screw
X2
DD
Gasket
X1
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
GFCI
BB
EE

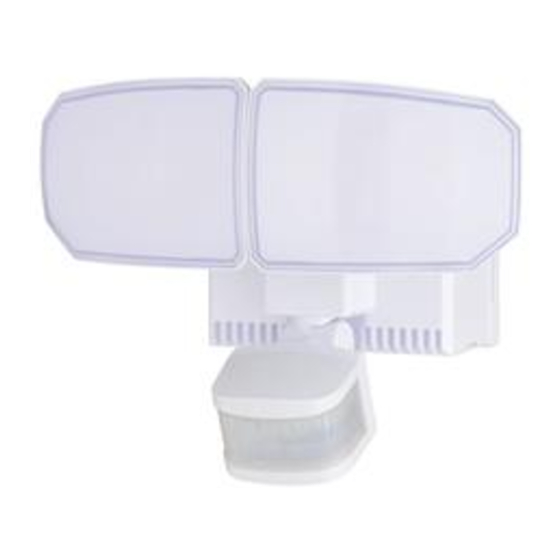

2-Light LED Outdoor Security Light
Mounting Strap
X1
Decorative cover
X1
SKU Number: 356-9555
Model Number: E23106GFCIB
E23106GFCIW
B
C
CC
Wire Connector
X3
FF
Fixture Mounting Screw
(Pre-assembled on the
light fixture)
X1
356-9556
231020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patriot Lighting E23106GFCIB
Summary of Contents for Patriot Lighting E23106GFCIB
- Page 1 SKU Number: 356-9555 356-9556 2-Light LED Outdoor Security Light Model Number: E23106GFCIB E23106GFCIW Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST PACKAGE CONTENTS GFCI HARDWARE CONTENTS Note: Hardware not shown actual size.
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING ● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). ●... -
Page 3: Installation Steps
ASSEMBLY INSTRUCTIONS (continued) Installation Steps Turn off the power at fuse or circuit box. 1. Install the mounting strap (BB) to 2. Thread the fixture wires through gasket (DD), then attach the the outlet box with the stamped Outlet Box word “FRONT”... -
Page 4: Function And Operation
ASSEMBLY INSTRUCITONS (continued) Sensitivity of Motion Sensor ● You can adjust the sensitivity of the motion sensor by using the “SENS” selector located on the right side of the sensor head. (See Fig. 5) ● Adjust motion sensor sensitivity to HIGH (H), MEDIUM (M), or LOW (L) to achieve desired performance. ●... -
Page 5: Customization Options
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued) FUNCTION AND OPERATION (continued) 4. PC MODE (nighttime operation only) ● In "PC" mode, the light turns on at full brightness at dusk and remains on until dawn. Note: You can adjust the full brightness color temperature (2700K/4000K/5000K) by using the“CCT” slider switch on the sensor head. -
Page 6: Spare Parts List
Please follow these steps to test the GFCI for work properly. Fig.10 Step 1: Press the RESET button on the GFCI receptacle, the RESET button will stay in, the indicator light will illuminate in green and the power is on. Step 2: Press the TEST button. -
Page 7: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Turn the light switch on. The light does not work. The light switch is turned off. Replace the fuse or turn the circuit The fuse is blown or the circuit breaker is turned off. breaker on. Daylight turn-off (photocell) is in Recheck after dark. - Page 8 If unable to fix any of the above issues, please consult a certified electrician. FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting fixture with the original sales receipt back to your nearest MENARDS retail store.
