24ft led rgbw string light

Advertisement

Quick Links

CARE AND MAINTENANCE

• When the product is placed on a live tree, the tree should be well maintained and fresh. Do not place on live
trees in which the needles are brown and break off easily. Keep the tree holder filled with water.
• If the product is placed on a tree, the tree should be well secured and stable.
• Before using or reusing, inspect product carefully. Discard any products that have cut, damaged, or frayed
wire insulation or cords, cracks in the lamp-holders or enclosures, loose connections, or exposed copper wire.
• When storing the product, carefully remove the product from wherever it is placed, including trees, branches,
or bushes in order to avoid any undue strain or stress on the product conductors, connections, and wires.
• When not in use, store neatly in a cool, dry location protected from sunlight.
• Replacing the battery: Use a screwdriver to unscrew
the battery cover and replace the battery, then
re-assemble the unit. Use only Lithium Ion 18650
rechargeable battery type (3.7V 2000mAh).

TROUBLESHOOTING

1) The light does not come on at all:
a) Power off and make sure all lamps are tightly secured..
b) Ensure the string light is securely fastened to the solar panel.
2) The nightly run time is shorter than normal.
a) The battery is not fully charged. Ensure the solar panel is located in an area where it can receive the
maximum amount of full, direct sunlight every day. Keeping the solar panel clean is equally important to
ensure the maximum charging performance.
b) The battery is reaching the end of its useful life. Replace with Lithium Ion 18650 rechargeable
batteries.
3) The solar light does not turn on at night.
a) The solar light is installed too close to other light sources, which may keep the solar light from turning
on at night. Relocate the fixture or eliminate the other light sources.
4) Micro USB is not charging the solar panel.
a) Check the ISB plug for dirt of defects. Make sure the plug is properly inserted.
b) The battery may be weak or can no longer produce a charge. Replace the battery.
5) Solar light is not responding to remote control.
a) Remote control battery is at the end of its life. Replace with appropriate battery type.
b) Solar light is not receiving signal from remote control. Ensure remote control is pointed at string light
within appropriate signal distance.
If unable to fix any of the above issues, please consult a certified electrician.

FIVE-YEAR LIMITED WARRANTY

If, during normal use, this PATRIOT LIGHTING
lighting fixture breaks or fails due to a defect in material and workmanship within
®
five (5) years from the date of original purchase, simply bring this lighting fixture with your original sales receipt back to your nearest
MENARDS
retail store. At its discretion, PATRIOT LIGHTING
®
replaced with the same or similar PATRIOT LIGHTING
®
the original purchaser with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs;
(2) does not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to persons/
property or costs. This warranty does give you specific legal rights and you may have other rights, which vary from state to state.
agrees to have the product or any defective part(s) repaired or
®
product free of charge, within the stated warranty period, when returned by
4
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at
1-844-255-9692 Monday – Friday 8:00 a.m. – 5:00 p.m. MST

PACKAGE CONTENTS

A
C
D
PART
DESCRIPTION
A

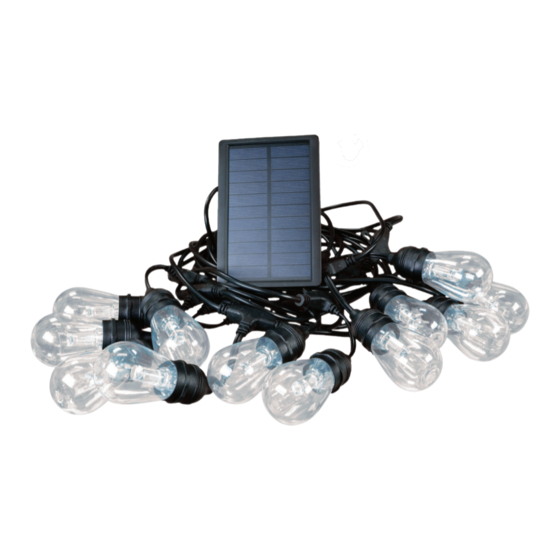

24ft RGBW Solar String Light with 12 Bulbs
B
Solar Panel
C
Soil Mount Stake
D
Handheld Remote
E
CR2025 Battery
Note: Hardware not shown to actual size.
SKU Numbers: 346-2117
24FT LED RGBW
STRING LIGHT
Model Number: 0106-0058
B
E
QUANTITY
Patriot Lighting® is a registered trademark
of Menard, Inc. All Rights Reserved.
1
1
1
1
1
1
