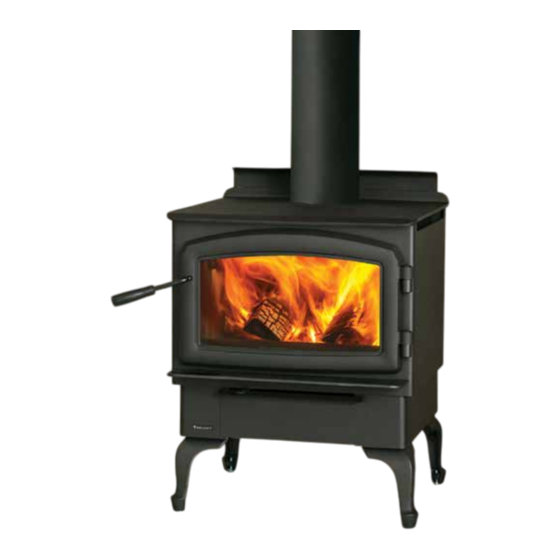

Classic™ Freestanding Woodstove
French Manual Download:
Manuel en Français :
MODEL:
F2450-2
Tested by:
0219WS033S
920-742
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
F2450-2
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Owners &
Installation Manual
www.regency-fire.com
10.09.24
Advertisement
Table of Contents
Related Manuals for Regency Classic F2450-2
Summary of Contents for Regency Classic F2450-2
- Page 1 Classic™ Freestanding Woodstove Owners & Installation Manual F2450-2 French Manual Download: www.regency-fire.com Manuel en Français : MODEL: F2450-2 Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference.
- Page 2 Tested to Method 28R, E2780 = 10, E2515 - 11. Model Regency F2450-2 – 1.6 g/hr. "This manual describes the installation and operation of the Regency F2450-2 wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 12,900 BTU/hr to 30,000 BTU/hr.”...
-
Page 3: Table Of Contents
CAUTION: To avoid burns or wood splinters, when opening/closing the fuel door or adding wood to the fire, You should always wear appropriate protective gloves to protect your hands from the heat being emitted from this fireplace. F2450-2 Regency Freestanding Woodstove... -
Page 4: Safety Decal For F2450-2
CONNECTOR - MOBILE HOME CONNECTOR - MOBILE HOME et approuvé par la Méthode 28R, E2780-10, E2515-11. Modèle Regency F2450-2 – 1,6 g /h. Cet appareil de chauffage au bois doit être inspecté périodiquement et réparé SIDEWALL A 381 mm / 15 in... -
Page 5: Dimensions
" 630mm " 25" 635mm 163mm Images for OUTSIDE AIR DIMENSIONS 23" " 584mm 556mm 4-9/16" (115mm) Rear Outside Air Dimensions Front 6-13/16"(173mm) 4-9/16" (115mm) Rear Rear With Pedestal With Bottom Heat Shield & Legs F2450-2 Regency Freestanding Woodstove Front... -
Page 6: Installation
Modular Installation Options WARNING: ONLY USE SPECIFIED COMPONENTS. The following items are required when assembling your Regency Stove. F2450-2 unit - the Rear Heat Deflector is supplied with the stove, but if you choose not to use it you must use the Airmate instead. -
Page 7: Stove Assembly Prior To Installation
Rear Heat Deflector rear heat shield. See Diagrams 2 & 3. Side View Airmate Diagram 4 Rear Heat Shield Stove Diagram 1 Diagram 2 Diagram 3 F2450-2 Regency Freestanding Woodstove... -
Page 8: Pedestal Assembly Installation
Fibre washer Shown with Classic door Logo Installation 1. Push the Regency logo into 6. Reinstall cover plate if not using ash drawer option. the two holes in the front bottom left corner of 7. Install logo plate onto heat shield by placing in 2 holes as the pedestal cover shown in diagram. -
Page 9: Room Air - Important
From Corner From Flue Center-Line Medium F2450-2 with Airmate 15" (381mm) 8" (203mm) 6" (152mm) 27" (686mm) 14-1/2" (368mm) 18" (457mm) with Rear Deflector 15" (381mm) 10" (254mm) 6" (152mm) 27" (686mm) 16-1/2" (419mm) 18" (457mm) F2450-2 Regency Freestanding Woodstove... -
Page 10: Minimum Alcove Clearance And Clearance To Combustible Materials
Minimum Alcove Clearance and Clearance to Combustible Materials The Regency Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. Note: Minimum alcove ceiling height - 83" (Measured from base of appliance) Maximum depth of alcove - 48"... -
Page 11: Floor Protection (Corner Installation)
53-7/16" (1358 mm) 24-15/16" (633 mm) Residential Close Clearance (To be installed with required pipe components) Canada 40-3/8" (1026 mm) 60-9/16" (1539 mm) 52-7/8" (1343 mm) 24-5/16" (618 mm) 40-3/8" (1026 mm) 58-9/16" (1488 mm) 51-7/16" (1307 mm) 22-15/16" (582 mm) F2450-2 Regency Freestanding Woodstove... -
Page 12: Step-By-Step Chimney And Connector Installation
5. Place the storm collar over the flashing, sealing the joints with a silicone caulking. Horizontal Installation 6. Fasten the raincap with spark screens (if required) to the top of your chimney. F2450-2 Regency Freestanding Woodstove... -
Page 13: Masonry Chimney
Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and proper draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629, Standard for 650 C Factory-Built Chimneys. F2450-2 Regency Freestanding Woodstove... -
Page 14: Combustible Wall Chimney Connector Pass-Throughs
Cover opening with and support chimney section on both sides with 24 gage minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure the metal chimney connector do not penetrate chimney flue liner. F2450-2 Regency Freestanding Woodstove... -
Page 15: Recommended Heights For Woodstove Flue
Example b) 1000' 18.72' 21.84' 2000' 19.44' 22.68' 5000' 21.60' 25.20' 8000' 23.76' 27.72' WARNING: CAUTION: The structural integrity of the mobile home DO NOT INSTALL IN SLEEPING floor, wall and ceiling/roof must be maintained. ROOM F2450-2 Regency Freestanding Woodstove... -
Page 16: Mobile Home Installation (Usa Only)
11. WARNING: DO NOT INSTALL IN A SLEEPING ROOM OF A MOBILE HOME. 12. Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. F2450-2 Regency Freestanding Woodstove... -
Page 17: Optional Outside Air Kit
Mark the position of your unit as outlined in the "General Information" and "Clearances to Combustibles" section of the manual. Pipe fresh air into the pedestal area by using a minimum 4" duct pipe with a mesh grill at the outside termination. Rear View F2450-2 Regency Freestanding Woodstove... -
Page 18: Brick Installation
NOTE: The "AD" brick in the drawings above is the brick covering the Ash Dump hole that is used when the Ash Drawer Kit is installed (refer to the Listed Components for Mobile Home Installation section). F2450-2 Regency Freestanding Woodstove... -
Page 19: Wood Handle & Door Assembly
(Refer to Diagram 1) Door hinges Wood Handle Wood handle Door Hinges Door Door handle Door Handle Hinge Cap Hinge Cap Cover Cover Door Diagram 2 tooltip Diagram 3 F2450-2 Regency Freestanding Woodstove 919-967a 04.03.19... -
Page 20: Flue Baffle & Secondary Air Tube Installation
2. Tilt the second baffle on top of the 2 air tubes and lock it in place with the already placed baffle. Front View Front View Important: Push both baffles so they are tight against the back wall. Important: Push both baffles so they are tight against the side walls. 5. Reverse Step 1. Front View F2450-2 Regency Freestanding Woodstove... -
Page 21: Fan Installation
Wiring errors can cause improper and dangerous operation. Neutral Manual/ Green Live Ground Auto 120V AC Switch Switch 60 Hz Fan Thermodisc (normally open) Black Black Black Ground Wiring Diagram 908-126a 04/08/14 F2450-2 Regency Freestanding Woodstove... -
Page 22: Stainless Steel Smoke Deflector Installation
WARNING: Operation of the unit with out proper installation of smoke deflector will void warranty. Ensure deflector is seated so bolts are situated at the top of the keyhole before tightening. F2450-2 Regency Freestanding Woodstove... -
Page 23: Seasoned Firewood
Left - Open Right - Closed WARNING: To build a fire in ignorance or to disregard the information contained in this section can cause serious permanent damage to the unit and void your warranty!! F2450-2 Regency Freestanding Woodstove... -
Page 24: First Fire
19% AND 25% MOISTURE CONTENT. fully open to the left) for approximately 30 your Regency Stove causing a draft down your minutes then reduce the primary air setting to chimney. If this occurs, slightly open a window START UP AND OPERATING PROCEDURES: your desired burn category. -
Page 25: Fan Operation
2. Please take care to prevent the build-up of ash 8. Your Regency stove can be very hot. You may be around the start-up air housing located inside CAUTION: HOT WHILE IN seriously burned if you touch the stove while it is the stove box, under the loading door lip. -
Page 26: Maintenance
GENERATE CARBON MONOXIDE AND ARE VERY DANGEROUS. Your Regency stove is supplied with 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement from an authorized Regency dealer only. -
Page 27: Maintenance
Door Gasket If the door gasket requires replacement 7/8" diameter material must be used. Regency uses a 7/8" gasket rope (Part #846-570). A proper high temperature gasket adhesive is required. See your Regency Dealer. The door catch may require adjustment as the door gasket compresses after a few fires. -
Page 28: Secondary Air Tube Removal/Installation
Allow it to set, then tap or vibrate the screw/bolt to help loosen it before attempting to remove it. For best results, follow the instructions that are provided with the penetrating oil. F2450-2 Regency Freestanding Woodstove... -
Page 29: Main Assembly
2 Way Switch 910-140 3 way Switch 022-942 Airmate 075-073F Tool Hanger 948-223 Regency Logo Plate 910-157/P Fan Motor Only With Squirrel Cage 910-142 Fan Thermodisc 021-032/P Vertical Stainless Deflector 021-022 Firebox Floor Gasket N/S = Not Shown F2450-2 Regency Freestanding Woodstove... - Page 30 F2450-2 Regency Freestanding Woodstove...
-
Page 31: Bases
5/16" x 6 1/2 " Long Hex Head Bolt (Each) 022-025 Metal Washer 820-456 Metal Spacer/Support Bracket (Each) Part # Description 022-915 Pedestal Complete 022-011 Pedestal Door 904-257 Magnetic Catch (Each) 075-910 Ashdrawer Pedestal 904-023 5/16 x 1-1/2 Hex Head Bolt (Each) F2450-2 Regency Freestanding Woodstove... -
Page 32: Brick Kit
Brick - Regular Full Size: 1-1/4" x 4-1/2" x 9" Brick Partial: 1-1/4" x 2" x 4-1/2" Brick Partial: 1-1/4" x 4-1/2" x 3-1/2" Brick Partial: 1-1/4" x 2" x 9" NOTE: This kit contains one spare brick in case of breakage. F2450-2 Regency Freestanding Woodstove... - Page 33 F2450-2 Regency Freestanding Woodstove...
-
Page 34: Warranty
FPI. Alternatively, FPI may, at its own discretion, fully discharge all of its obligations under warranty by refunding the verified purchase price of the product to the original purchaser. The purchase price must be confirmed by the original Bill of Sale. F2450-2 Regency Freestanding Woodstove... - Page 35 God, weather-related problems from hurricanes, tornados, earthquakes, floods, lightning strikes/bolts or acts of terrorism or war, which result in a malfunction of the Appliance are not covered under the terms of this Limited Lifetime Warranty. F2450-2 Regency Freestanding Woodstove...
- Page 36 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form at http://www.regency-fire.com/Customer-Care/Warranty-...
-
Page 37: Warranty Registration Card
Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase. - Page 38 By recycling your used appliances, you divert waste from your local landfills and help the environment. You also reduce the need for raw materials to manufacture new products. Contact your local municipality for appliance recycling services, local recycling programs, or appliance removal services to ensure your Regency appliance components, and packaging are properly recycled. F2450-2 Regency Freestanding Woodstove...
- Page 39 F2450-2 Regency Freestanding Woodstove...
- Page 40 Dealer Name & Address: _____________________________ _________________________________________________ Installer: _________________________________________ Phone #: _________________________________________ Date Installed: _____________________________________ Serial #: __________________________________________ Printed in Canada Regency is a trademark of FPI Fireplace Products International Ltd. © Copyright 2024, FPI Fireplace Products International Ltd. All rights reserved.
