jablotron JA-157P Manual

The JA-157P dual zone outdoor wireless motion detector - curtain
The JA-157P wireless outdoor detector is a component of
JABLOTRON 100 system. It is designed to detect human body
movement in an outdoor
FTN-RAM-PT detector produced by Optex with a Jablotron
transmitter.
The optical part of the detector has curtain characteristics of its
lenses with a 5°angular width detection zone which makes it very
suitable for guarding narrow spaces such as balconies, French doors,
terraces, etc. The detector is equipped with dual-beam optics with a
high immunity against false alarms and the detection of small animals.
The detector also has an anti-masking function – i.e. protection against
shielding its view. It is also equipped with two tamper contacts both of
them immediately reporting tampering of the detector or removal from
the installation place. The detector should be installed by a trained
technician with a valid certificate issued by an authorised distributor.
Installation
Installation rules:
1. Detector has to be installed onto a vertical wall.
2. Detector has to be installed 0.8 – 1.2 m above the ground.
3. The best movement detection is provided when the detection
beams intersect.
4. No other moving objects (bushes, trees, high grass,
air-conditioners, etc.) should be situated in the field of sight.
5. Avoid direct action by strong sources of light (sun reflections,
sunset, sunrise, etc.).
Procedure:

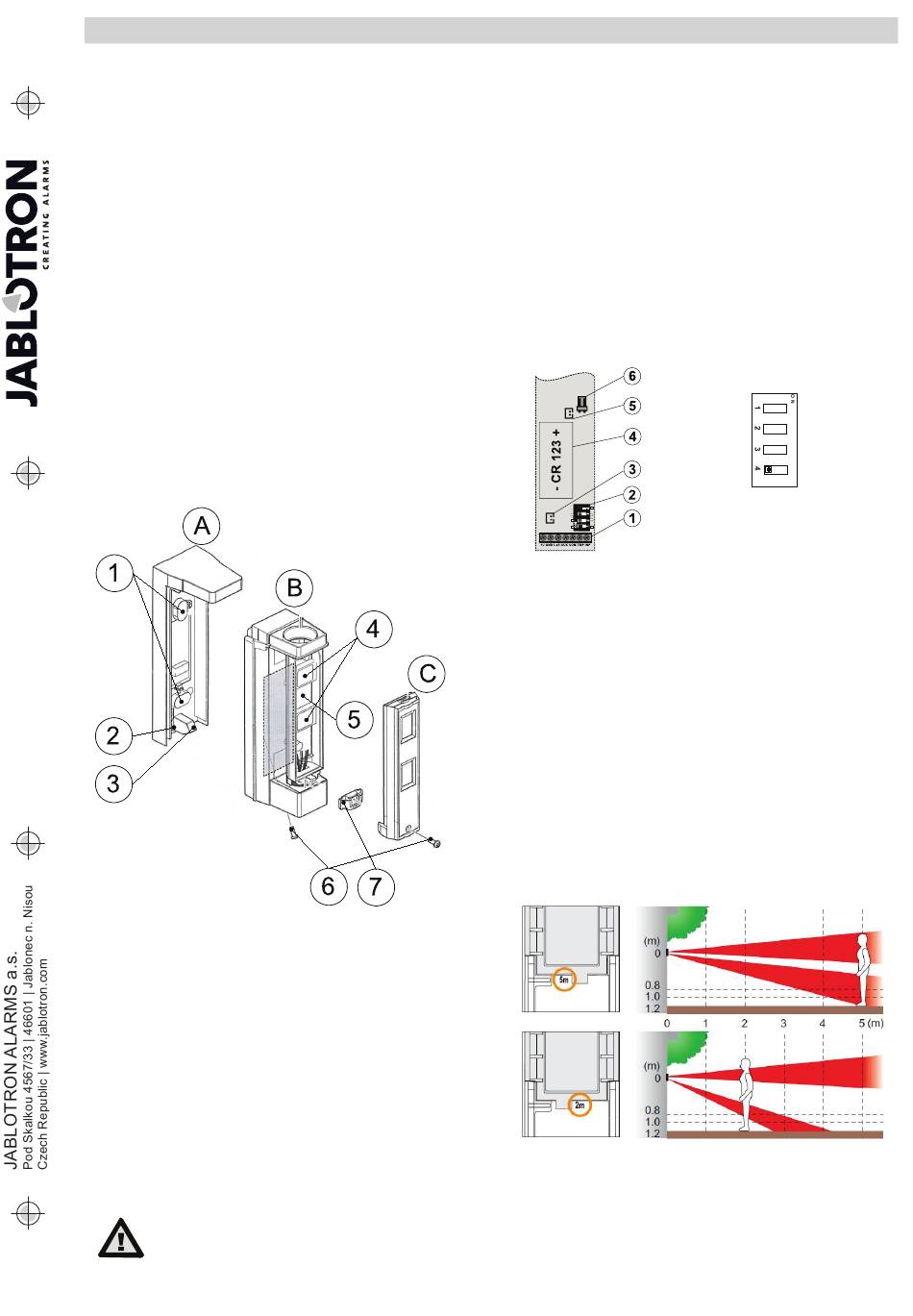

Figure 1.: Detector housing: A – detector installation pad,
B – detector base with the PCB, C – front cover of the detector with lenses,
1 – mounting holes, 2 – blasting part of tamper contact, 3 – facing surface to
be assembled by a screw, 4 – lenses, 5 – DIP switch for setting up,
6 – locking screws for assembling, 7 – retractable fixation bracket
1. Unscrew the locking screws (6) and separate parts A and B.
Fix the installation pad (A) to the required place using mounting
2.
holes (1). Caution, if you want to use a tamper contact it is
necessary to screw the blasting part (2) of the housing to ensure
when someone tamper the detector it breaks off this part.
3. Now take out the front cover to set up the detectors view and
options by DIP switches (5).
Position of the detection part is fixed by a plastic bracket (7),
4.
remove it in upper direction.
When you set up the required angle of view, lock it by pushing of
5.
plastic bracket (7) back to default position.
Set the required options by the DIP switches (5).
6.
Now enroll the detector to the system.
7.
Do not touch the detector sensing face
during the handling
If you touch it coincidently, it is necessary to clean it
up by a piece of cotton wool soaked in alcohol.
The JA-157P dual zone outdoor wireless motion detector - curtain
environment. It is the
Switching the detector on and its enrolling to
the system
The signal transmitter for wireless communication is located under
the main board part (B) of the detector. The batteries are inserted to
the battery holder located on the transmitter. Always use the CR123A
(3.0 V / 1.4 Ah) lithium battery. The correct position of the batteries is
indicated on the battery holder.
Enrolling procedure:
a. Go to the F-Link software, select required position in the
Devices window and launch the enrolment mode by clicking on
the Enroll option.
b. Insert the battery (mind the correct polarity). When the battery is
inserted into the battery holder an enrollment signal is
transmitted to the control panel and the detector is enrolled to
the selected position.
c. Assemble the detector in opposite order then it was
disassembled.
Status (INP)
AUX = Fault
Factory settings highlighted by bold letters.
Figure 2.: Radio transmitter: 1 – terminals, 2 – option DIP switch (pre-set
from factory, see picture), 3 – external tamper contact jumper,
4 – battery holder, 5 – external antenna jumper,
6 – external antenna connector
Notes:
- There must be a radio module JA-11xR installed in the control
panel
- The detector can also be enrolled into the system by entering
its production code in the F-Link software. You can find the
production code on the sticker, glued onto the PCB. All
numbers under the bar code shall be entered (1400-00-0000-
0001).
- If needed the transmitter can be equipped with an
AN-868 (2PIN) external antenna connected to the connector
(6) and disconnect the jumper (5).
Setting up the optical part of the detector
The detection distance can be set to 5 m or 2 m. The setup is
done by turning around by lower lens (near to the centre of housing).
The shape of the lens is adjusted that it shows by special molded
digit with selected detection distance (see fig. 3.). Don´t turn
around the upper lens!
Figure 3.: Characteristics 5 m and 2 m
Protection against masking
The detector has an Anti-masking function – protection against
shielding its view. When the function is enabled the detector sends
infra-red pulses and detects possible shielding. The shielding is
indicated if the obstacles are less than 10 cm from the detector.
When battery is inserted and both plastic covers closed the
detector analyses its view in front of it for 1 minute – self-calibration.
1
N.C. N.O.
Pulse (INP)
AUX=anti-mask
Not used
MMY51702
