jablotron JA-60V Installation Manual

JA-60V Wireless outdoor P.I.R. motion detector
The JA-60V is an outdoor intruder detector designed to detect human
body movement in a protected area. Used PIR detector produced by Optex
has two double-layered detection patterns (upper and lower) both have to
be activated to trigger the alarm. This reduces false alarms, particularly
those caused by temperature changes, light reflection or small animals.
A tamper triggers an alarm if there is any attempt to tamper with the
detector.
The built-in transmitter is fully compatible with all JA-6X control panels.
Specifications
Power
Battery life time
Working frequency
RF Power
Working range
Specification of the Optex VX 402R detector
Detection method
Coverage
Mounting height
Detection speed
Battery saving timer
LED indicator
Environmental class
Operating temperature
Waterproof
Humidity
Dimension
Security grade
Can be operated according to
Hereby, Jablotron Ltd., declares that this JA-60V is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Original of the conformity assessment can be found at the web page
www.jablotron.cz, section Technical support.
Contents of the set: detector JA-60V, pole mounting kit, screw kit, area
masking plates, 2 AAA batteries

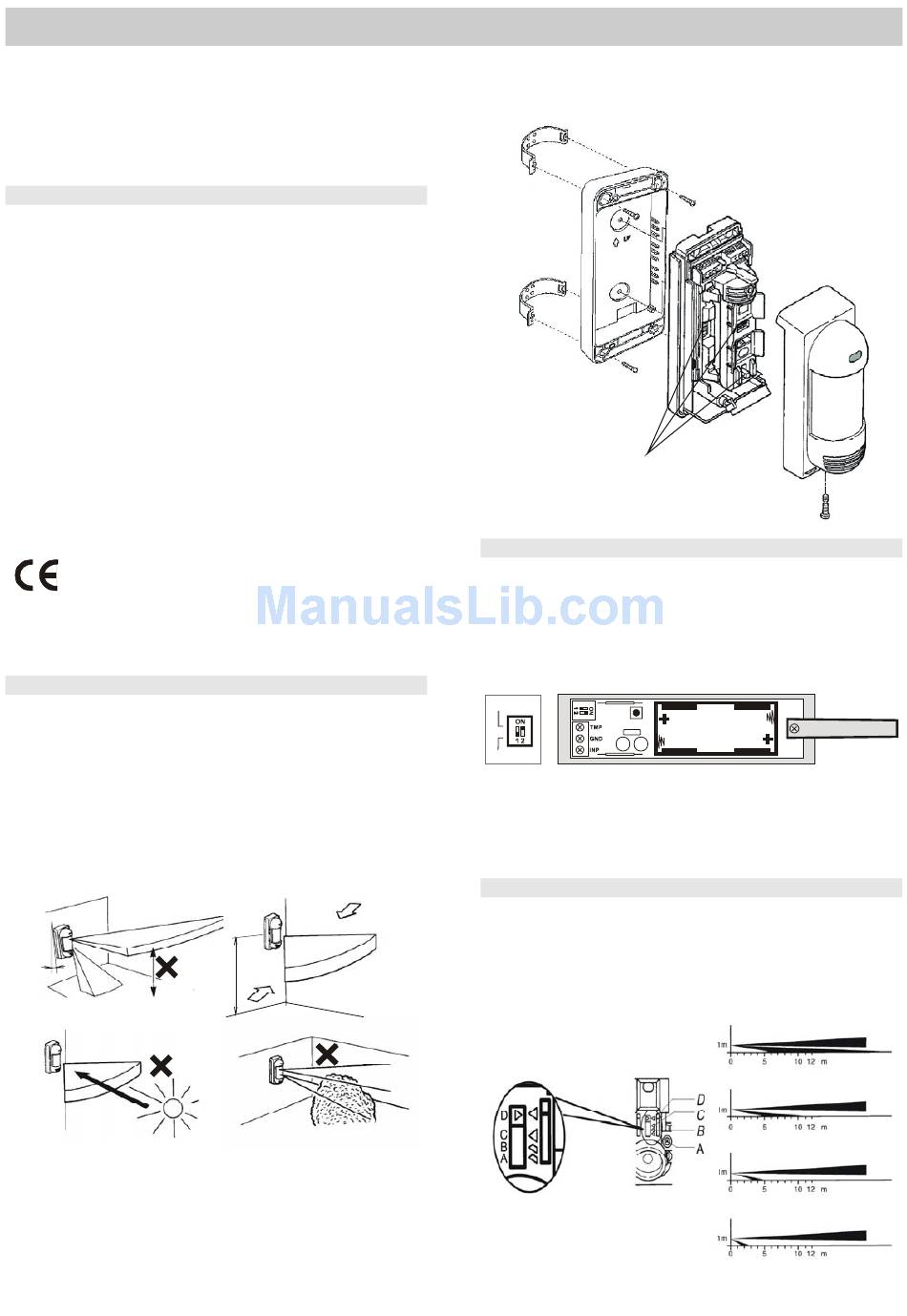

Installation
Select the proper place for mounting the detector according to
following:
1. Install the detector perpendicular to the ground to make upper
detection area parallel to the ground
2. Installation height is 0.8 – 1.2 m
3. Mount the detector so that a majority of traffic flow is across the
detection pattern
4. Too much light such as strong sunlight directed exactly to the sensor
may cause unstable condition. It is highly recommended to avoid
such installation.
To open the detector:
1. Unscrew the lock screw and remove the top cover.
2. Unscrew the screws fastening the back box. Remove the back
box.
NOTE: never touch surface of the PIR sensor.
JA-60V Wireless outdoor PIR detector
3 V - 2 x AAA battery 1.5V
about 1 year
433.92 MHz
<
10 mV
max. 100 m (open area)
Passive infrared
12 m / 90° ; 14 segments
0.8 – 1.2 m
-1
0.3 – 1.5 ms
5 or 120 seconds
only in the test mode
IV (EN 50131-1)
-20°C to +50°C
IP54
95%
198 x 80 x 108 mm
2 (EN 50131-1)
ERC/REC 70-03
0.8
1.2 m
1. 1.
Fix the detector to desired place. Detector can be fixed directly on the
wall or by using supplied fix bracket on the pole (Ø 43 – 48 mm).
Pole Mounting
Bracket
Enrollment of the detector to the receiver
The transmitter is placed below the optical part of the detector. Study
the installation manual of the receiver unit (control panel) first to learn how
enter the enrolling mode. When the receiver is switched to the enrolment
mode insert the two provided AAA batteries into the detector (polarity is
marked in the detector). The detector will generate an enrollment signal
after the batteries are installed.
INSTANT
DELAY
•
Use DIP switch no. 1 to select the reaction of the system:
-
-
•
Leave DIP switch no. 2 in position ON.
Adjustment
The upper detection area stays parallel to the ground. The lower area
moves as shown below depending on the position of the setting switch.
Detection length is therefore limited by the length of lower detection
area, since both upper and lower detection area have to be activated
at the same time to trigger the detector.
3. 3.
1
Back Box
Setting Switches
JA-60N transmitter
instant (position ON)
delay (position 1).
A
B
C
D
Optical Part
Cover
Lock Screw
distance 0 - 12 m
distance 0 - 8 m
distance 0 - 5 m
distance 0 - 2 m
MEB 52101
