Addictive Desert Designs OFFROAD STEALTH FIGHTER F120083030103 Installation Manual

TOOLS REQUIRED
(Sockets) 7/16, 9/16, 5/8, 3/4, 10mm, 13mm, 15mm
(Box end wrenches) 7/16, 9/16, 5/8, 3/4, 10mm, 13mm, 15mm
(Allen wrenches) 5/32, 7/32
(Torx) T15
Grinder
Fastener remover or flathead screwdriver
Zip ties
Ratchet
Razor/scissors
SKILL
-Medium/Moderate
**This installation requires 2 people for best results**
-BEFORE YOU INSTALL THIS KIT-
Read and understand all instructions, warnings,
cautions, & notes contained in this installation
instruction guide. Consult your vehicle owner's manual
for proper disconnection of electrical and lifting of
vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel
that you are capable of performing this install please
take this product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service (480) 671-0820
2022-23/CHEVY SILVERADO ZR2

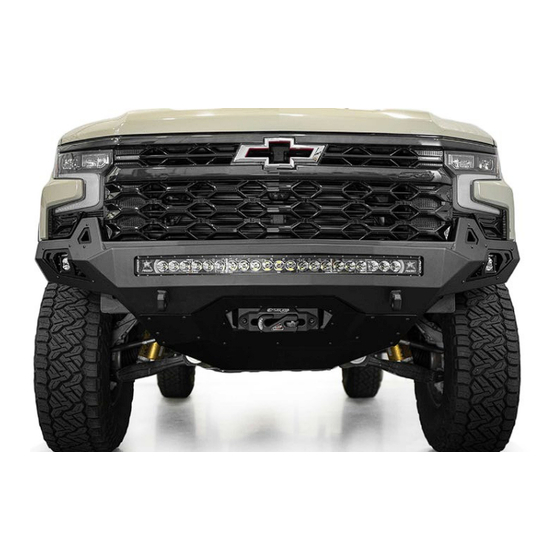

STEALTH FIGHTER FRONT BUMPER & WINCH KIT
F120083030103, AC12156601NA
LEVEL
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Addictive desert designs is not responsible for any
bodily injury or harm to you or your vehicle as a result
of an improper install.
Proper installation of this kit required knowledge of
the factory recommended procedures for removal and
installation of original equipment components.
We recommend that the factory shop manual and
any special tools needed to service your vehicle be
on hand during the installation. Installation of this kit
without proper knowledge of the factory recommended
procedures may affect the performance of these
components and the safety of the vehicle.
INSTALLATION
TIME
- 2 hours for OEM Removal/Bumper Install
-1 Additional Hour for Wiring
**Labor Rates are based on a vehicle with no pre-existing damage. Wiring
labor is based on a standard wiring procedure with light switches installed
in an easily accessible location. Custom light triggering or switch mounting
location will result in a greater labor charge.**
INCLUDED
(4) 3/8-16 X 1 1/4" Hex Head Bolt
(4) 3/8" Fender Washer
(4) 3/8-16" Standard U - Nut
(6) 3/8-16 X 1" Button Head Bolt
(6) 3/8" Flat washer
(6) 3/8-16" Extruded U - Nut
(8) 1/2-13 X 1 1/2" Hex Head Bolt
(16) 1/2" Flat Washer
Inspect all contents of this package to make sure
product is not damaged and all installation hardware
has been included. If parts are missing from kit, please
be prepared to provide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
guide
REQUIRED
IN KIT
(8) 1/2-13" Nylon Lock Nut
(8) 1/2" Flat Washer
(4) 1/2-20" Nylon Lock Nut
(8) 1/4" Flat Washer
(8) 1/4-20" Nylon Lock Nut
(8) 1/4-20 X 3/4" Button Head
(4) 1/2-20 X 4" Hex Head Bolt
*ALWAYS WEAR EYE PROTECTION
WHEN OPERATING POWER TOOLS*
