2007-2014 Tahoe/Suburban/Avalanche Stealth
PREPARATION
1. Disconnect the negative terminal on the battery. Park the vehicle on level ground and set the
emergency brake.
2. We recommend reading through the installation instructions in whole before performing the work.
3. Estimated Installation Time: 2 Hours
4. You will need the following tools:
a. Ratchet
b. 7mm Socket
c. 10mm Socket
d. 18mm Socket
e. 13/16" Socket
f.
3/4" Socket & Wrench
g. Cutting Wheel
h. Grinding Wheel
i.
Utility Knife
Note: this installation requires 2 people for best results
5.
Included in Kit:
2
– Grade 8 Bolts – 1/2"-20 x 5 1/2"
2
– Grade 8 Bolts – 1/2"-20 x 5"
8
– Washers – 1/2"
4
– Metal Lock Nut – 1/2"-20
REMOVAL
1. From underneath the vehicle, unplug both fog light connectors.

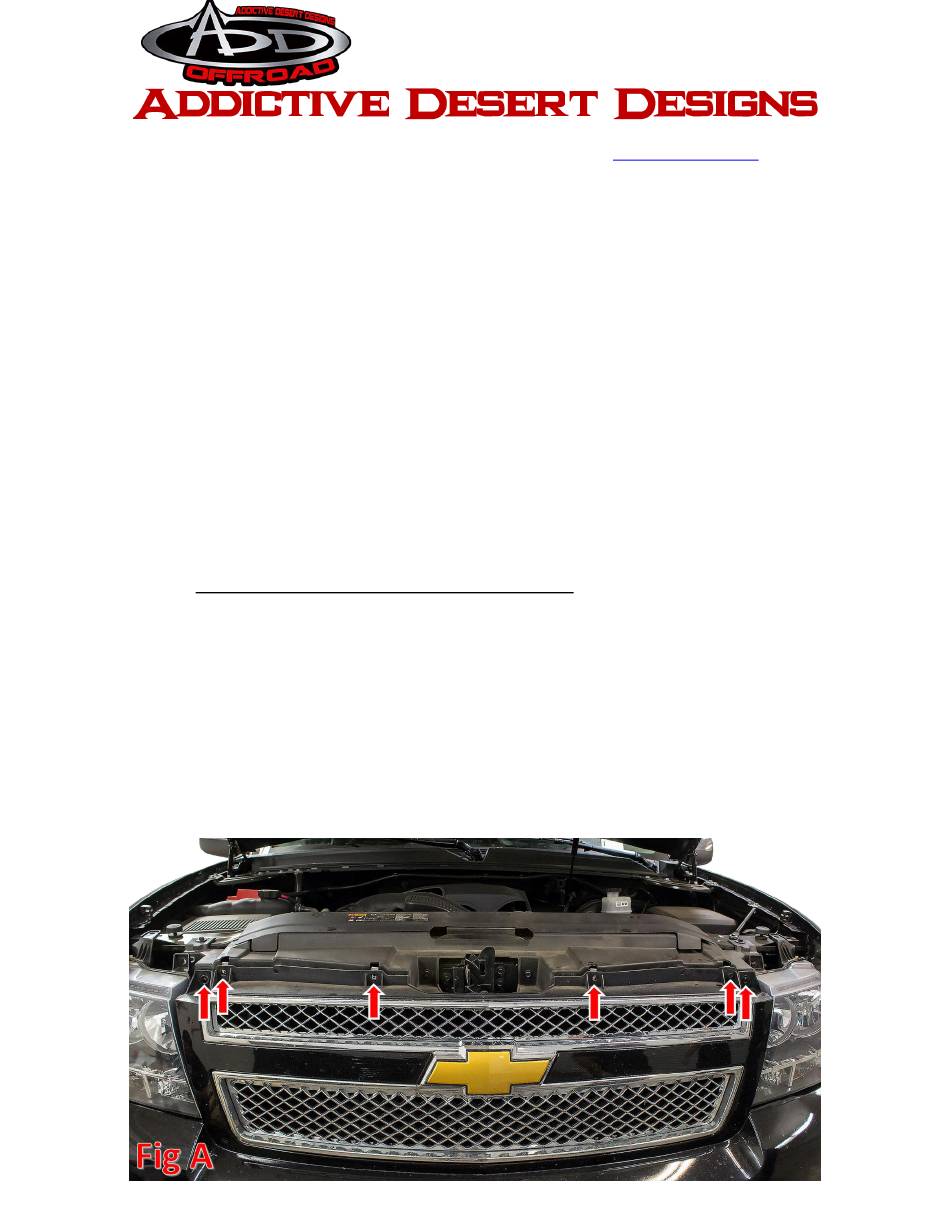

2. Remove the 10mm bolts (x6) on the top side of the grille. (Fig A)
Grille Installation Instructions
Front Bumper
with
Advertisement
Table of Contents
Related Manuals for Addictive Desert Designs F1503452580103
Summary of Contents for Addictive Desert Designs F1503452580103
- Page 1 2007-2014 Tahoe/Suburban/Avalanche Stealth Front Bumper with Grille Installation Instructions PREPARATION 1. Disconnect the negative terminal on the battery. Park the vehicle on level ground and set the emergency brake. 2. We recommend reading through the installation instructions in whole before performing the work. 3.
- Page 2 3. Remove the front/lower 7mm bolts (x2) and plastic clips (x3) in each wheel well. (Fig B) 4. Underneath the vehicle, right next to the frame rails, there is a 10mm bolt (per side) that needs to be removed. (Fig C)
- Page 3 5. In the front part of each wheel well, pull the liner back and remove the two 10mm bolts (per side) just inside of the that liner. (Fig D) 6. Carefully pull the plastic fascia off of the vehicle. (Fig E) Your vehicle should still have the headlights in place despite what is shown in Fig E.
- Page 4 9. Remove the skid plate mounting bolts (x4). Then, remove the skid plate. (Fig H) 10. Cut the bells off of your frame rails. There is a weld running down the side of each one. Use a cutting wheel and cut the weld on both sides of each bell. Once the bells are cut off, grind the area smooth and make sure to paint any exposed metal.
- Page 5 INSTALLATION 1. If you purchased any lights with your bumper, now is a good time to install those. Follow the light manufacturer’s instructions for mounting and lighting information. 2. Line the mounting holes on the bumper up with the mounting holes on the vehicle’s frame horns. We use one vertical through bolt and one horizontal through bolt (per side).
- Page 6 5. Stand back and enjoy your new ADD Stealth Front Bumper. 6. Check and re-tighten if needed, all mounting bolts after 100 miles and periodically thereafter.
