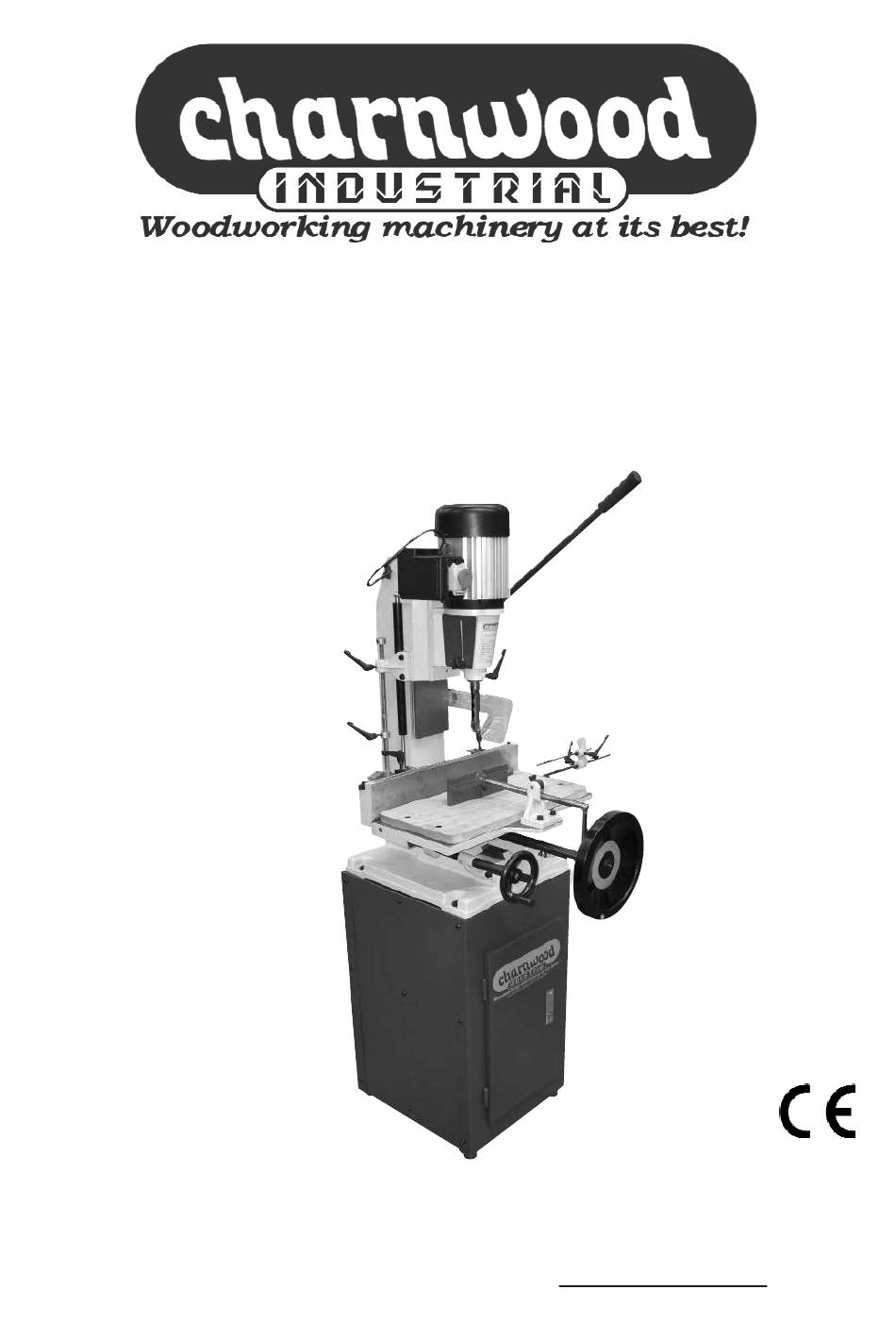

- Page 1 1” INDUSTRIAL MORTICER OPERATING INSTRUCTIONS MODEL: W350 Charnwood, Cedar Court, Walker Road, Bardon, Leicestershire, LE67 1TU, England Tel. 01530 516 926 Fax. 01530 516 929 email; sales@charnwood.net UK customers can view our full range at; www.charnwood.net...
-
Page 2: Safety Instructions
WARNING; When using electric tools, basic safety precautions should be followed to reduce risk of fire, electric shock, and personal injury, including the following: SAFETY INSTRUCTIONS 1) KEEP WORK AREA CLEAN - Cluttered areas and benches invite injuries. 2) CONSIDER WORK AREA ENVIRONMENT - Do not expose power tools to rain. Do not use power tools in damp or wet locations. - Page 3 Left Table stop Right Table Stop Length Stop Work Piece Clamp Table Lock Small Hand Wheel Large Hand Wheel Cabinet Stand W350 SPECIFICATION Maximum timber height 250mm Maximum clamping width 222mm Chisel capacity 1/4" to 1" Accepts chisel collar sizes 3/4", 13/16", 1.1/8", 1.3/16"...
- Page 4 UNPACKING Remove the morticer from the crate, check for damage and ensure all parts are intact. Any damage should be reported immediately to your retailer. Before assembling read the manual thoroughly , familiarising yourself with the correct assembly and maintenance procedures and proper safety precautions. ASSEMBLY Assemble the cabinet stand packed in a separate carton using the instructions inside.
- Page 5 Unlock the head - Undo the ratchet lever located at the bottom end of the depth stop rod, part 75, and remove the collar stop. Use the operating handle to raise the head of the machine until the depth stop rod is clear of the hole in the depthstop base.
-
Page 6: Operation
Feed the drill bit through the inside of the chisel and into the chuck, part 43. Secure using the chuck key. The drill bit must be set so that the flat cutting edge is lower than the four tips of the chisel. - Page 7 Position the table The table can be moved in two directions; Front to back table movement is controlled by the smaller hand wheel, part 10, on the left hand side of the machine. There is a locking lever, part 18, located underneath the table on the right hand side.
-
Page 8: Maintenance
Cutting a Mortice When cutting a slot mortice it is important to start from the correct end of the work piece. With the open side of the chisel set to the right - start the cut from the right hand edge. As the cut progresses the open side of the chisel will remain open into the hole already cut to aid chip clearance. - Page 9 To make an adjustment; Loosen all of the locking nuts along the dovetail Back off all of the grub screws Tighten the two end screws until they make firm contact with the gib strip Lock the two end screws with the Hex nut Try moving the dovetail slide, adjust it tighter or looser as required then tighten and lock the third set screw.
