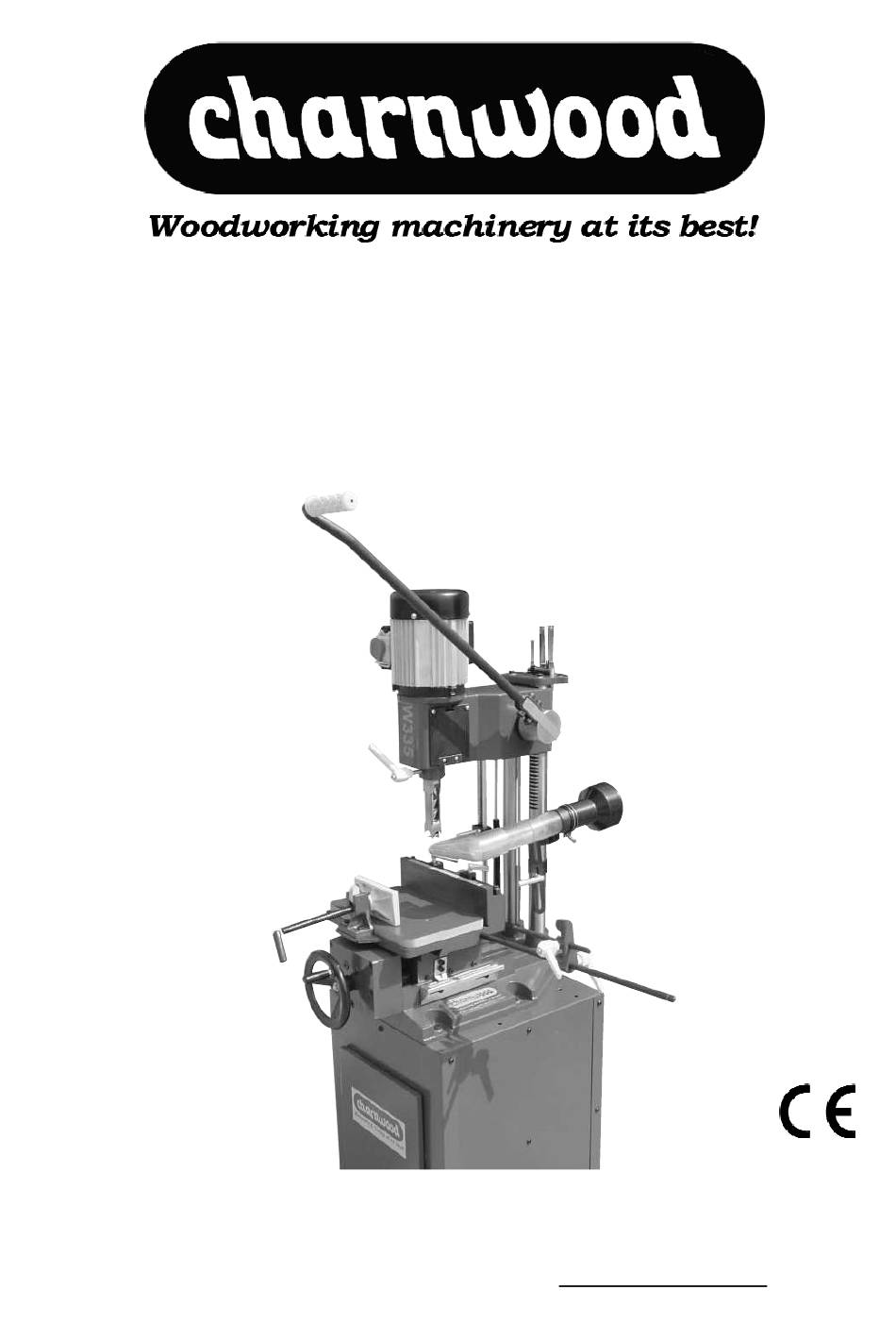

- Page 1 1” HOLLOW CHISEL MORTICER OPERATING INSTRUCTIONS MODEL: W335 Charnwood, Cedar Court, Walker Road, Bardon, Leicestershire, LE67 1TU, England Tel. 01530 516 926 Fax. 01530 516 929 email; sales@charnwood.net UK customers can view our full range at; www.charnwood.net...
-
Page 2: Safety Instructions
WARNING; When using electric tools, basic safety precautions should be followed to reduce risk of fire, electric shock, and personal injury, including the following: SAFETY INSTRUCTIONS 1) KEEP WORK AREA CLEAN - Cluttered areas and benches invite injuries. 2) CONSIDER WORK AREA ENVIRONMENT - Do not expose power tools to rain. Do not use power tools in damp or wet locations. - Page 3 Depth Stop Left Table stop Right Table Stop Length Stop Work Piece Clamp Table Width Position Scale Hand Wheel Optional Cabinet Stand W335 SPECIFICATION Maximum timber height 160mm Maximum clamping width 160mm Chisel capacity Hardwood 1/4" to 5/8" Chisel capacity Softwood 1/4”...
- Page 4 UNPACKING Remove the morticer from the crate, it is bolted to the wooden base, check for damage and ensure all parts are intact. Any damage should be reported immediately to your retailer. Before assembling read the manual thoroughly, familiarising yourself with the correct assembly and maintenance procedures and proper safety precautions.
- Page 5 Fit the length stop The length stop can be fitted to either the left or right side of the table. Locate the hole on the right hand edge of the table, slide the larger diameter round bar into this hole and secure it with the grub screw located underneath the table using a 4mm hex key.
-
Page 6: Operation
Installing / Replacing the Chisel & Bit Chisels are available with a variety of Motor collar sizes. To allow you to use any brand of chisels we include a set of 4 chisel bushes. The chisel bush fitted in the machine as standard is normally 3/4”. The other sizes are 13/16”, 1-1/8”... - Page 7 Positioning the table The table can be moved in two directions; Front to back table movement is controlled by firstly pulling the handwheel towards you and then rotating it. Turn clockwise to move the table backwards, anti-clockwise to move the table forwards. There is a scale and indicator to show the current position of the table on the right hand side of the machine.
-
Page 8: Maintenance
Cutting a Mortice When cutting a slot mortice it is important to start from the correct end of the work piece. With the open side of the chisel set to the right - start the cut from the right hand edge. As the cut progresses the open side of the chisel will remain open into the hole already cut to aid chip clearance. -
Page 9: Environmental Information
To make an adjustment; Loosen all of the locking nuts along the dovetail Back off all of the grub screws Tighten the two end screws until they make firm contact with the gib strip Lock the two end screws with the Hex nut Try moving the dovetail slide, adjust it tighter or looser as required then tighten and lock the third set screw. - Page 12 Charnwood, Cedar Court, Walker Road, Bardon, Leicestershire, LE67 1TU, England Tel. 01530 516 926 Fax. 01530 516 929 email; sales@charnwood.net View our full range at; www.charnwood.net...
