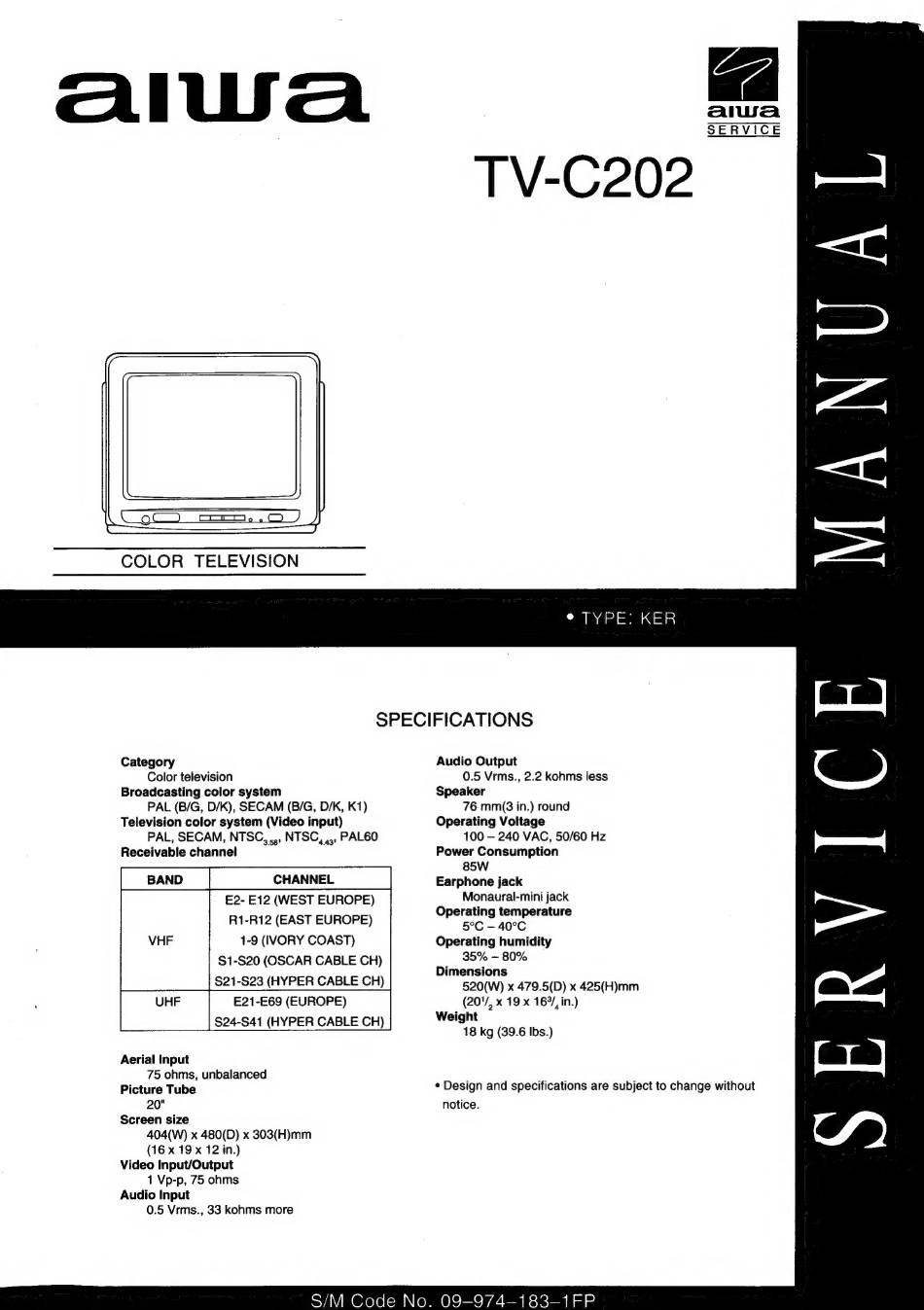

Aiwa TV-C202 Service Manual

ana
SERVICE
TV-C202
ALIA
COLOR TELEVISION
e TYPE: KER
SPECIFICATIONS
Category Audio Output
Color television 0.5 Vrms., 2.2 kohms less
Broadcasting color system Speaker
PAL (B/G, D/K), SECAM (B/G, D/K, K1) 76 mm(3 in.) round
Television color system (Video input) Operating Voltage
PAL, SECAM, NTSC, .,, NTSC, ,,, PAL60
Receivable channel
3.58! 4.43?
E2- E12 (WEST EUROPE)
R1-R12 (EAST EUROPE)
1-9 (IVORY COAST)
$1-S20 (OSCAR CABLE CH)
$21-S23 (HYPER CABLE CH)
Aerial Input
75 ohms, unbalanced
Picture Tube
20"
Screen size
404(W) x 480(D) x 303(H)mm
(16 x 19 x 12 in.)
Video Input/Output
1 Vp-p, 75 ohms
Audio Input
0.5 Vrms., 33 kohms more
CHANNEL
UHF £21-E69 (EUROPE)
$24-S41 (HYPER CABLE CH)
100 — 240 VAC, 50/60 Hz
Power Consumption
85W
Earphone jack
Monaural-mini jack
Operating temperature
5°C — 40°C
Operating humidity
35% ~ 80%
Dimensions
520(W) x 479.5(D) x 425(H)mm
(20'/, x 19 x 16%/, in.)
Weight
18 kg (39.6 Ibs.)
* Design and specifications are subject to change without
notice.
S/M Code No. 09-974—-183-1FP
