Kitagawa 132SB Instruction Manual

★ READ CAREFULLY THIS INSTRUCTION MANUAL AND THE INSTRUCTIONS OF THE
ASPIRATING PUMP PRIOR TO USING THIS PRODUCT.
★ DO NOT DISCARD THIS INSTRUCTION MANUAL UNTIL ALL THE TUBES IN THIS BOX ARE
USED UP.
1. PERFORMANCE:
Measuring Range
and Sampling Time
Number of Pump Stroke : 1(100mL)
Colour Change
Detectable Limit
Operating temperature
Aspirating Pump
1. DETECTOR TUBE CONTAINS REAGENTS.
2. PRETREAT TUBE CONTAINS REAGENTS (READ).
3. DO NOT TOUCH THESE REAGENTS DIRECTLY ONCE TUBES ARE BROKEN.
4. KEEP THE TUBES OUT OF THE REACH OF CHILDREN.
NOTICE
1. USE ONLY WITH PUMP MODELS AP-20, AP-20S, 400B, AP-1, AP-1S OR 400A.
OTHERWISE, CONSIDERABLE ERROR IN INDICATION MAY OCCUR.
2. BEFORE TESTING, CHECK THE ASPIRATING PUMP FOR LEAKS (REFER TO ITEM 8.
INSPECTION OF ASPIRATING PUMP). ANY PUMPS SHOWING SIGNS OF LEAKAGE
SHOULD BE CORRECTED BEFORE USE.
3. DO NOT USE THIS TUBE OUTSIDE THE STATED OPERATING TEMPERATURE
RANGE.
4. STORE TUBES IN A DARK AND REFRIGERATED PLACE NOT TO EXCEED 10 ℃
(50°F), AND USE BEFORE EXPIRATION DATE PRINTED ON TOP OF THE BOX.
5. PRIOR TO USE, READ CAREFULLY ITEM 9. USER RESPONSIBILITY.
6. READ THE CONCENTRATION IMMEDIATELY AFTER MEASUREMENT.
2. SAMPLING AND MEASUREMENT:

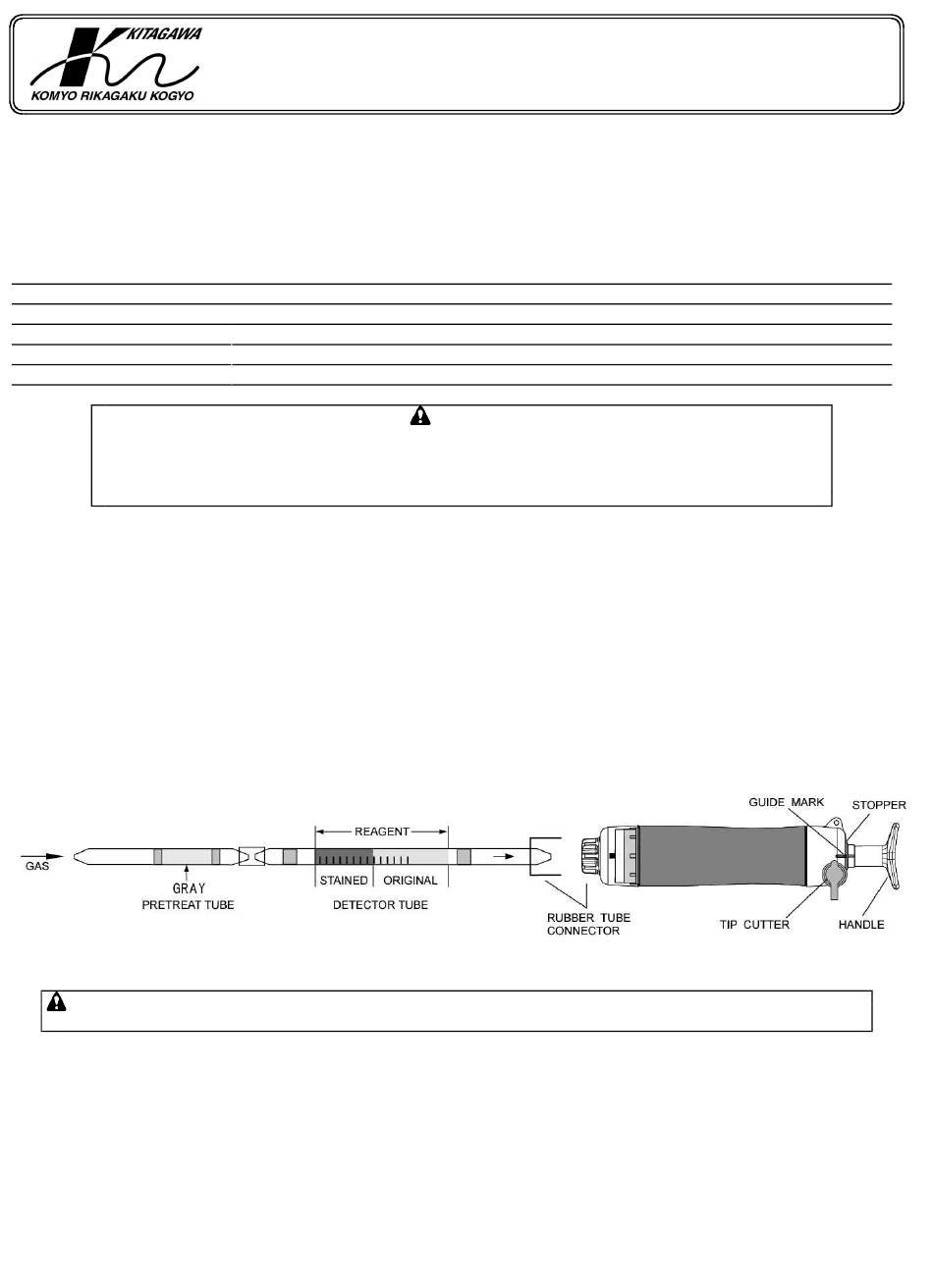

① Break both ends of detector tube and pretreat tube, and connect each end of the detector tube and
pretreat tube with rubber tube connector as shown in Fig.1.
CAUTION SAFETY GLASSES AND GLOVES SHOULD BE WORN TO PREVENT INJURY
FROM SPLINTERING GLASS.
② Insert the detector tube into aspirating pump securely as shown in Fig.1 (Arrow mark shall point to
the pump)
③ Align the guide marks on the shaft and stopper of the aspirating pump.
④ Pull the pump handle at full stroke until it locks and wait for 1.5 minutes or until the completion of
sampling is confirmed with the flow indicator of the pump (See descriptions about the flow indicator
in the instructions of the pump).
⑤ On completion of sampling, read the scale at the maximum point of the stained layer.
SPECIAL NOTE: Ⅰ. The scale is calibrated at 20 ℃ (68°F), 50 %R.H. and 1013hPa. Readings
VINYL CHLORIDE DETECTOR TUBES
: 5 - 500 ppm
: 1.5 minutes
: White → Reddish orange
: 2 ppm
: 0 - 40 ℃ (32-104°F) (Temperature correction is necessary.)
: Model AP-20, AP-20S, 400A, AP-1, AP-1S or 400A
obtained in other circumstances should be corrected (REFER TO ITEM 3
CORRECTION FOR AMBIENT CONDITIONS).
Ⅱ. When the maximum of the stained layer is unclear or obliquely, read the scale at
the centre between the longest and shortest points.
INSTRUCTION MANUAL
CAUTION
Fig.1
No.132SB
