Kitagawa 126SA Instruction Manual

★ READ CAREFULLY THIS INSTRUCTION MANUAL AND THE INSTRUCTIONS OF THE
ASPIRATING PUMP PRIOR TO USING THIS PRODUCT.
★ DO NOT DISCARD THIS INSTRUCTION MANUAL UNTIL ALL THE TUBES IN THIS BOX ARE
USED UP.
1. PERFORMANCE:
Measuring Range
and Pump Stroke
* Graduations on the detector tube are based on 1 pump stroke.
( )
Sampling Time
Colour Change
Detectable Limit
Operating Temperature
Aspirating Pump
1. THE DETECTOR TUBE CONTAINS CHEMICAL REAGENTS.
2. DO NOT TOUCH THESE REAGENTS DIRECTLY ONCE TUBES WERE BROKEN.
3. KEEP THE TUBES OUT OF THE REACH OF CHILDREN.
NOTICE
1 . USE ONLY WITH PUMP MODELS AP-20, AP-20S, AP-1 or AP-1S OTHERWISE,
CONSIDERABLE ERROR IN INDICATION MAY OCCUR.
2. BEFORE TESTING, CHECK THE ASPIRATING PUMP FOR LEAKS. (
INSPECTION OF ASPIRATING PUMP.
SHOULD BE CORRECTED BEFORE USE.
3 . DO NOT USE THIS TUBE OUTSIDE THE STATED OPERATING TEMPERATURE RANGE.
4 . STORE TUBES IN A COOL AND DARK PLACE 0-25
EXPIRATION DATE PRINTED ON THE TOP OF THE BOX.
5 . PRIOR TO USE, READ CAREFULLY
6. READ THE CONCENTRATION IMMEDIATELY AFTER MEASUREMENT.
2. SAMPLING AND MEASUREMENT:
Break both ends of detector tube.
①
CAUTION
② Insert the detector tube into the aspirating pump securely as shown in Fig.1. Arrow mark shall point to
the pump.
)
③ Align the guide marks on the shaft and stopper of the aspirating pump.
Pull the pump handle at a full stroke until it locks and wait for 5 minutes or until the completion of
④
sampling is confirmed with the flow indicator of the pump. See descriptions about the flow indicator
in the instruction manual of the pump.
On completion of sampling, read the scale at the maximum point of the stained layer.
⑤
⑥ When the concentration is over the scale range, a 1/2 pump stroke can be used to determine concentrations
of 0.2 to 5.2 ppm.
1 Remove the detector tube from the pump. )
2 Turn the pump handle right or left by 1/4 90 , push back it toward to the pump. )
3 Insert the new tube into the aspirating pump.
)

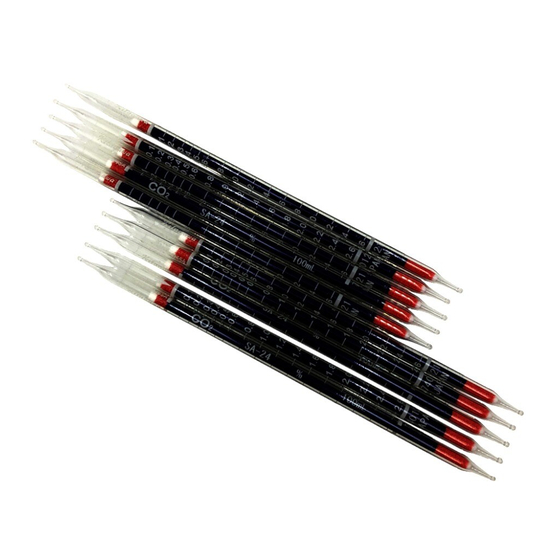

CARBON DIOXIDE DETECTOR TUBE
: 0.2 - 5.2%
: 1/2 pump stroke
: 2.5 minutes
: Purple blue
: 0.01% 100 ppm
(
: 0 - 40 ℃ (
: Model AP-20, AP-20S, AP-1 or AP-1S
SAFETY GLASSES AND GLOVES SHOULD BE WORN TO PREVENT INJURY
FROM SPLINTERING GLASS.
)
INSTRUCTION MANUAL
0.1 - 2.6 % *
( )
1 pump stroke
5 minutes
→ Pale pink
1 pump stroke
) (
32-104 F ° ) ( No temperature correction is necessary.
CAUTION
) ANY PUMPS SHOWING SIGNS OF LEAKAGE
(
ITEM 9. USER RESPONSIBILITY
Fig.1
o
( )
)
REFER TO ITEM 8.
°
℃ /32-77 F , AND USE BEFORE )
(
(
No.126SA
)
.
