Kitagawa 135SB Instruction Manual

★READ THIS INSTRUCTION MANUAL AND THE INSTRUCTIONS OF THE ASPIRATING PUMP PRIOR
TO USING THIS PRODUCT.
★DO NOT DISCARD CAREFULLY THIS INSTRUCTION MANUAL UNTIL ALL THE TUBES IN THIS
BOX ARE USED UP.
1. PERFORMANCE:
Measuring Range
and Pump Stroke
(*)Graduations on the detector tube are based on 1 pump stroke.
Sampling Time
Colour Change
Detectable Limit
Operating Temperature
Aspirating Pump
1. THE DETECTOR TUBE CONTAINS CHEMICAL REAGENTS.
2. DO NOT TOUCH THESE REAGENTS DIRECTLY ONCE TUBES WERE BROKEN.
3. KEEP THE TUBES OUT OF THE REACH OF CHILDREN.
NOTICE
1. USE ONLY WITH PUMP MODELS AP-20, AP-20S, 400B, AP-1, AP-1S OR 400A. OTHERWISE,
CONSIDERABLE ERROR IN INDICATION MAY OCCUR.
2. BEFORE TESTING, CHECK THE ASPIRATING PUMP FOR LEAKS. (REFER TO ITEM 8.
INSPECTION OF ASPIRATING PUMP.) ANY PUMPS SHOWING SIGNS OF LEAKAGE SHOULD
BE CORRECTED BEFORE USE.
3. DO NOT USE THIS TUBE OUTSIDE THE STATED OPERATING TEMPERATURE RANGE.
4. STORE TUBES IN A REFRIGERATED PLACE (0-10 ℃/32-50°F), AND USE BEFORE
EXPIRATION DATE PRINTED ON THE TOP OF THE BOX.
5. PRIOR TO USE, READ CAREFULLY ITEM 9. USER RESPONSIBILITY.
6. READ THE CONCENTRATION IMMEDIATELY AFTER MEASUREMENT.
2. SAMPLING AND MEASUREMENT:
① Break both ends of the detector tube.
CAUTION

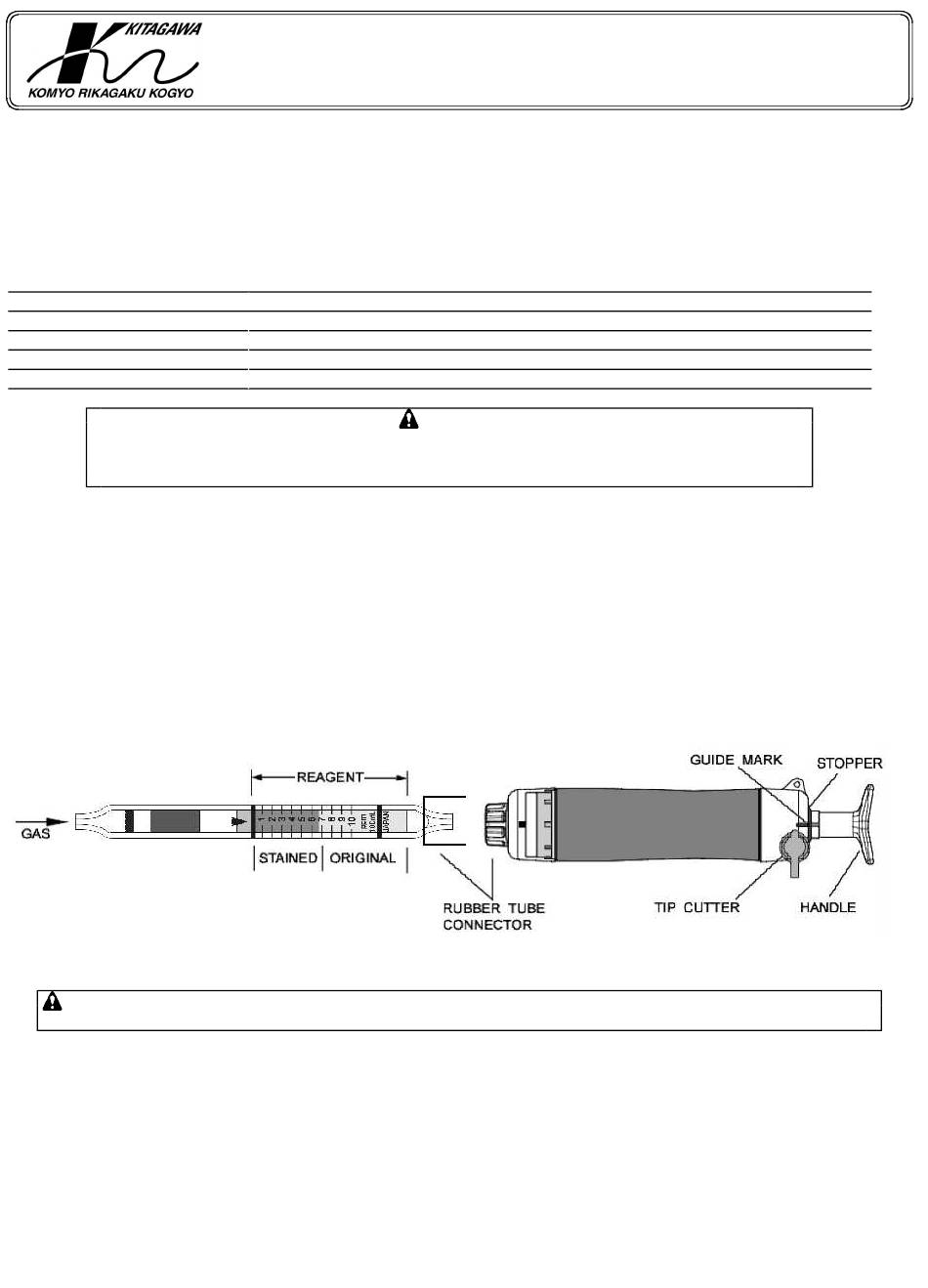

② Insert the detector tube into the aspirating pump securely as shown in Fig.1. (Arrow mark shall point to
the pump.)
③ Align the guide marks on the shaft and stopper of the aspirating pump.
④ Pull the pump handle at a full stroke until it locks and wait for 1.5 minutes or until the completion of sampling
is confirmed with the flow indicator of the pump. (See descriptions about the flow indicator in the instruction
manual of the pump.)
⑤ On completion of sampling, read the scale at the maximum point of the stained layer.
⑥ When the concentration is below the scale range, 4 pump strokes can be used to determine concentrations of 0.2
to 2.0 ppm. Then correct the tube reading by correction table. (REFER TO ITEM 3. CORRECTION FOR
AMBIENT CONDITIONS AND PUMP STROKE.)
TETRACHLOROETHYLENE DETECTOR TUBE
: 1 - 10 ppm(*)
: 1 pump stroke
: 1.5 minutes
: Pale orange → Blueish purple
: 0.1 ppm(4 pump strokes)
: 0 - 40 ℃ (32-104°F) (Temperature correction is necessary.)
: Model AP-20, AP-20S, 400B, AP-1, AP-1S or 400A
SAFETY GLASSES AND GLOVES SHOULD BE WORN TO PREVENT INJURY
FROM SPLINTERING GLASS.
INSTRUCTION MANUAL
0.2 - 2.0 ppm
4 pump strokes
6 minutes
CAUTION
Fig.1
No.135SB
