Honeywell SILENT KNIGHT SD500-LED Installation Instructions

SD500-LED LED Driver Module
Installation Instructions
The following are instructions on how to install, and
connect the SD500-LED to a Silent Knight
Addressable control panel.
The SD500-LED is a LED driver module capable of
driving 80 LEDs which connects to the SLC loop on
a Silent Knight addressable control panel.
Up to 40 SD500-LED modules can be used per SLC
loop with a maximum of 100 SD500-LED modules
per system.
Specifications
Circuit/Parameter
Alarm:
Aux. Power Max.
Standby:
Current:
LED:
Alarm:
SLC Max. Current:
Standby:
Operating Temperature:
Indoor use only
Mounting Instructions
This section contain instruction on how to mount the
SD500-LED's cabinet and how to insert the SD500-
LED control board.
Follow these steps to mount the cabinet:
1. Remove the control board from the cabinet. See
caution notice. See also Figure 2.
2. Mount cabinet as shown in Figure 1.
3. Re-install the control board. See Figure 2.
Value
220 mA
10 mA
10 mA
.55 mA
.55 mA
0° to 49° C (32° to 120° F)
Caution!
Many of the circuit board components are extremely sensitive
to static electricity. The following procedures reduce the
possibility of damaging components with static electricity:
1. Before handling the circuit board in any way, discharge
your body's static electric charge by touching a grounded
surface. Wear a grounding wrist strap if one is available.
2. Do not remove parts from their antistatic containers or
bags until you are ready to install them. When removing a
circuit board from a cabinet, immediately place it in an
antistatic bag or container.
3. When handling a circuit board, hold it by its edges, and
avoid touching the circuitry.
4. Do not slide circuit boards over any surface.
5. Avoid having plastic, vinyl, and foam in your work area.
6. Limiting your movement during installation and or
removal reduces static electricity.

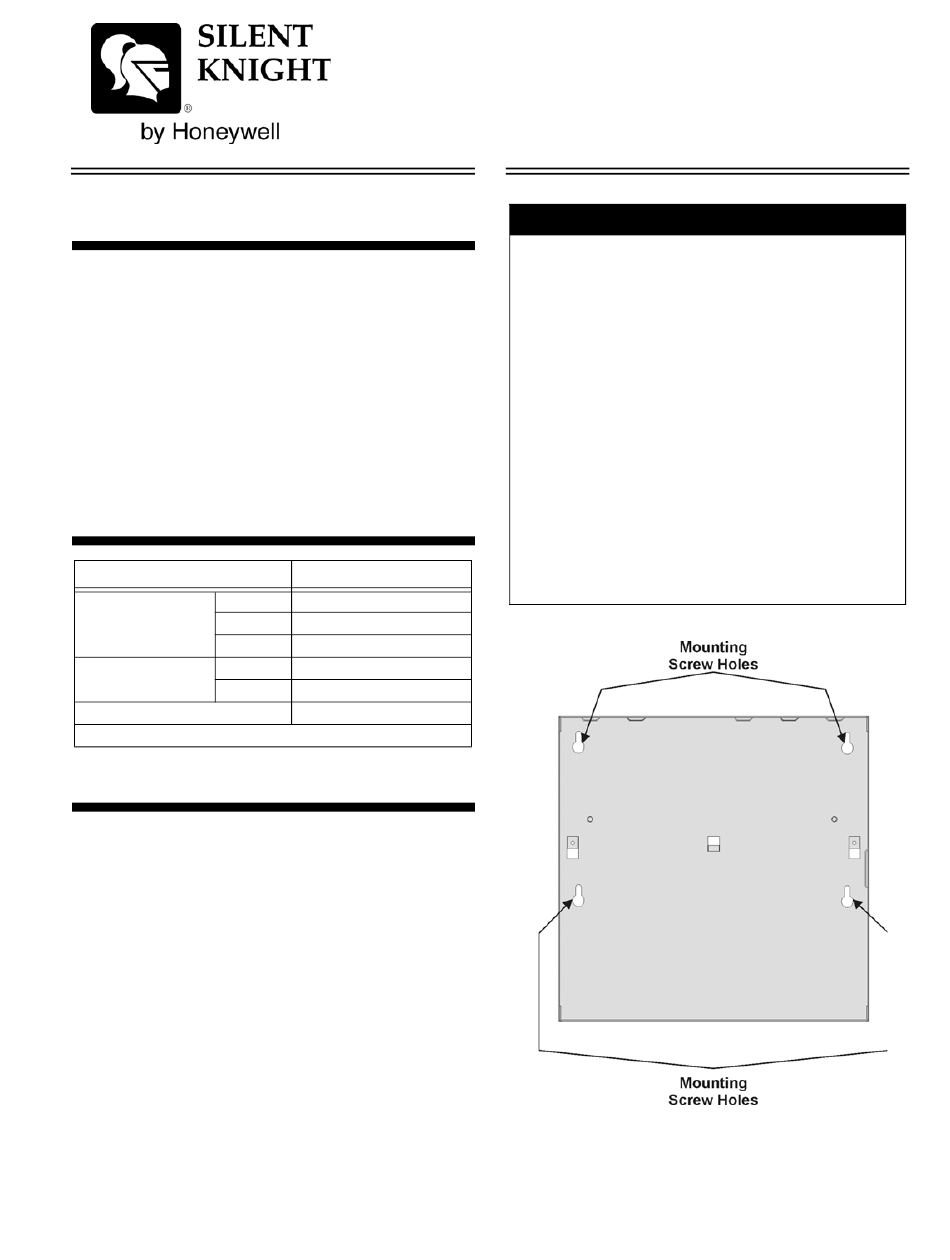

Figure 1: Cabinet Mounting
P/N 151232 Rev A
