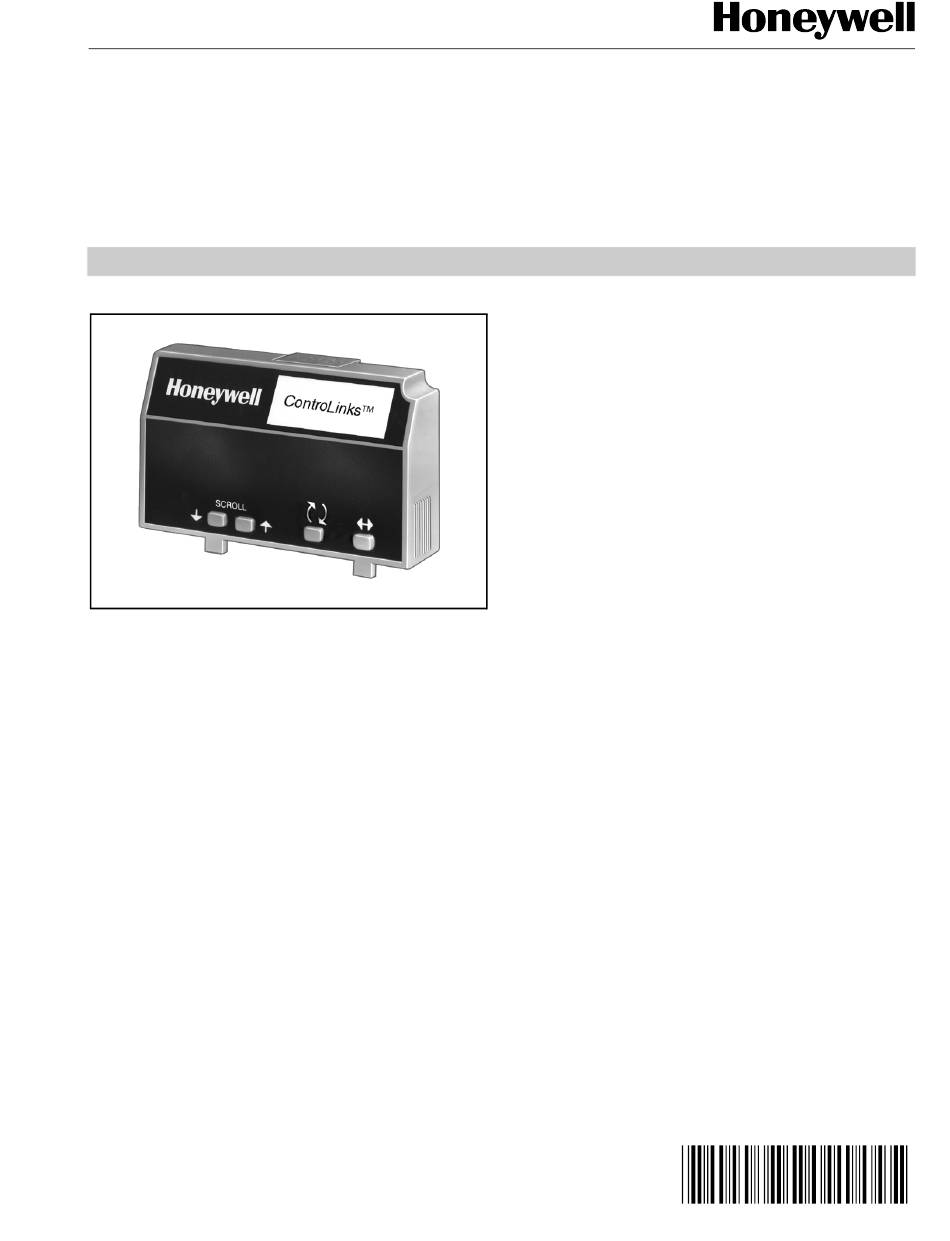

Honeywell ControLinks S7999 Product Data

APPLICATION

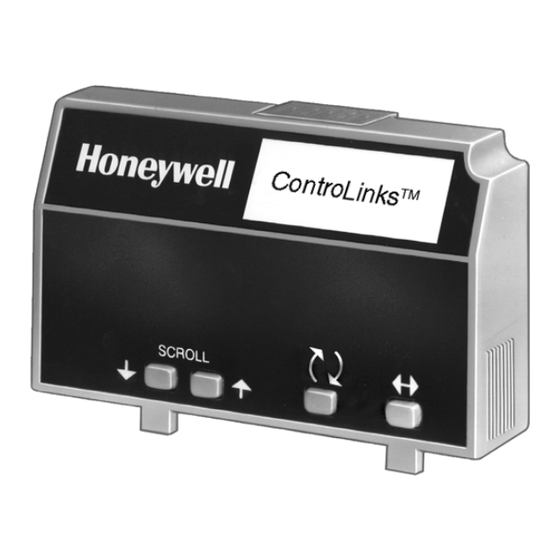

The S7999 ControLinks™ Display Module (DM) provides local
or remote annunciation of system operation, fault information,
diagnostic information, actuator settings and configuration
settings of the ControLinks™ System.

FEATURES

Communication interface capability to the
•
ControLinks™ System.
Dependable, long-term operation provided by
•
microcomputer technology.
Local or remote system annunciation provided
•
by a 2-row by 20-column display.
® U.S. Registered Trademark
Copyright © 2001 Honeywell • All Rights Reserved
S7999 ControLinks™
Display Module
Operating Status:
•
- Source of demand/control.
- Actuator positions.
- Hold status.
- Total cycles.
- Total hours of operation.
- Run time.
• Fault history of six most recent faults.
- Fault code.
- Fault message.
- Cycles at time of fault.
• Diagnostic information:
- Input/Output status.
- Demand/control input and position.
- Fuel selection.
- Fuel position.
• Motor settings:
- Light-off position of fuel, air and FGR.
- purge position of fuel, air and FGR.
- Programmed stop position of fuel, air and FGR.
• Configuration settings:
- Low Fire Hold input (XmA).
- FGR Purge position.
- Manual potentiometer limit enabled/disabled.
- R7999 hardware/software revision.
- Display Module (DM) software revision.
