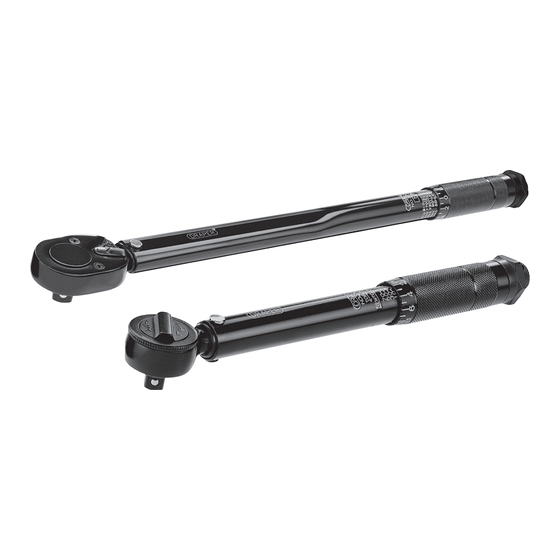

Torque wrenches
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

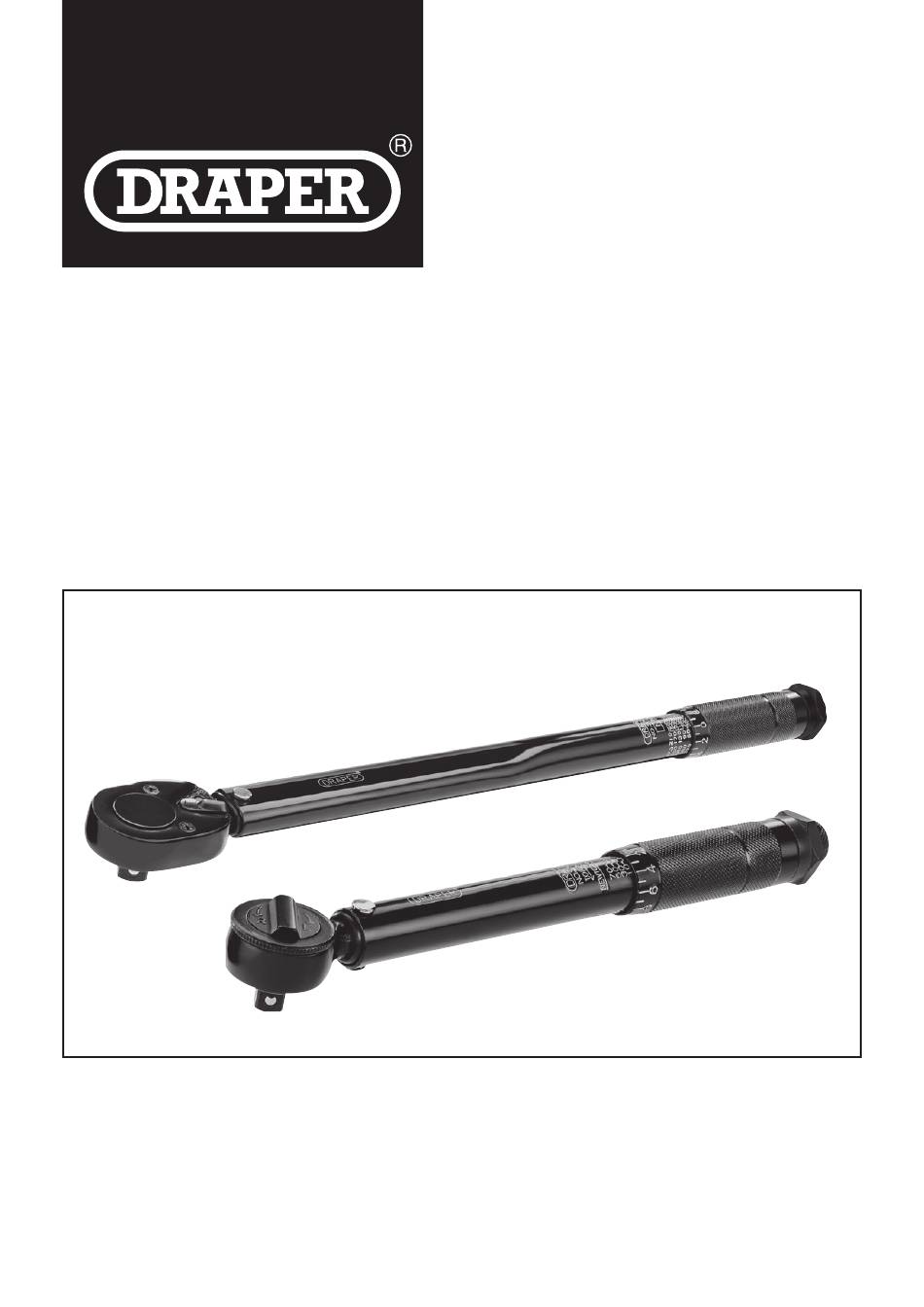

MICROMETER ADJUSTMENT
TORQUE
WRENCHES
64534 & 64535
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 64534 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 64534

Summary of Contents for Draper 64534

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 3: Safety Instructions

    Whilst every effort has been made to ensure that the accuracy of information given in this manual is correct at time of going to print, the Draper Tools policy of continuous improvement determines the right to change specification without notice.

  • Page 4: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION NOTE: Always set by turning the handle in the clockwise direction. To unlock handle, turn locking screw anti-clockwise (A). Turn handle clockwise until the correct whole number of the setting is reached (B).(NOTE: it may be necessary to loosen the locking screw more than once during the setting procedure). Continue to turn the handle for any additional increments to obtain the final setting (C).

  • Page 5: Operation And Use

    OPERATION AND USE IMPORTANT: Always use the correct size socket and if necessary, accessory. Apply a steady pull to the handle of the torque wrench. When the applied torque is reached, this will be indicated by the following: Audible click: NOTE: The click will be quieter at lower torque settings. Touch: The handle will be felt to “break away”...
  • Page 6 OPERATION AND USE SETTING EXAMPLE 3/8" SQUARE DRIVE - FIGS. 2 - 5 Stock No.64534 Part No.3004A/BK Measuring Nm Torque wrench set to 36Nm. Unlock handle. 30Nm. whole number (Fig.2). 1 div. on handle = 1Nm. 6 div. = 6Nm.
  • Page 7 OPERATION AND USE SETTING EXAMPLE 1/2" SQUARE DRIVE - FIGS. 6 - 9 Stock No.64535 Part No.3001A/BK Measuring Nm Torque wrench set to 96Nm. Unlock handle. 90Nm. whole number (Fig.6). 1 div. on handle = 1Nm. 6 div. = 6Nm. FIG.6 90 + 6 = 96Nm.

  • Page 8: Contact Details

    Product Helpline: +44 (0) 23 8049 4344 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Please contact the Draper Tools Produce Helpline for repair and servicing enquiries © Published by Draper Tools Limited...

This manual is also suitable for:

64535
