Scania strongly recommends a trained Scania technician at an authorised workshop for doing the
installation.
Software updates must be performed at authorised workshops only.
The device shall not be opened. If so, Scania warranty is void.
Limitations
This product is optimized for use with SESAMM6 trucks.
In order for the device to monitor the weight, the truck needs to have full air suspensions.
The truck needs to be equipped with the BCI (Bodywork) control unit and to have the EXT CAN-Bus
enabled at 250kbps.
Attention:
o the device may not work well together with certain bodyworks
o the device should not be installed in trucks equipped with side air bags – when docking
station is mounted on the boarding grab handle

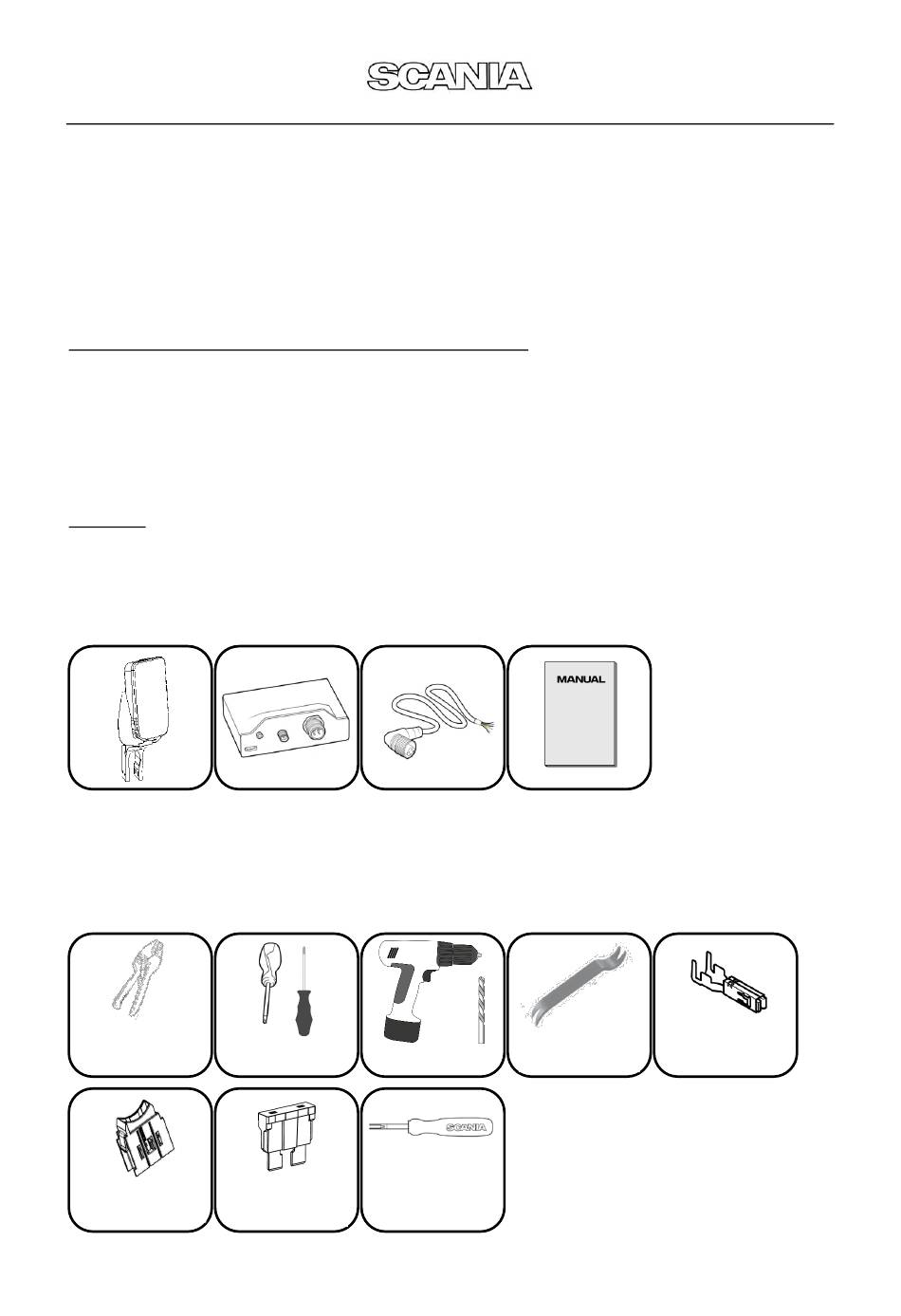

Kit Contents
o Docking station (+cable +M3 mounting screws) and hand-held controller unit (+power cable)
o Transmitter with antenna ( +O-ring)
o CAN Bus cable for transmitter
o Instructions
Equipment needed
Crimp tool
99491
2 x Fuse holder
2190068
Mounting instruction
Scania ProRemote
Screwdrivers
10mm drill
Cable terminal
removal tool
2 x Fuse 2A
99586
382324
3190098
Trim removal
Terminal
1443343
Advertisement
Related Manuals for Scania ProRemote
Summary of Contents for Scania ProRemote
- Page 1 Mounting instruction Scania ProRemote Information Scania strongly recommends a trained Scania technician at an authorised workshop for doing the installation. Software updates must be performed at authorised workshops only. The device shall not be opened. If so, Scania warranty is void.
- Page 2 3190098 Mounting instruction A wire-pulling tool is going to be necessary if the pipe that connects the two sides from inside the Instrument Panel is used to connect the Docking station to power in the central electronic unit. Also, terminal handling tools may be employed to handle the removal of the terminals-pins. Mounting The 2 main components, the transmitter and the docking station, are installed under the roof on the passenger’s side and on the top of the boarding grab handle on the driver’s side respectively.
- Page 3 3190098 Mounting instruction The cable routing from the transmitter resting on the roof to the central electronic unit is done through the A-pillar. The CAN Bus cable is to be connected to the C493 connector of the BCI control unit after removing the smaller bodywork electronic unit from which it rests behind.
-
Page 4: Docking Station
It can be mounted on other positions depending on the needs, ergonomics requirements of each application and driver. Scania provides a bracket that fits the instep grab handle only. Power for the docking station is recommended to be taken from the central electronic unit – the cable is long enough to reach that distance through the plastic pipe that ends up in the central electronic unit. - Page 5 3190098 Mounting instruction only for RHD trucks: The plastic empty pipe that connects the two sides can be found by removing the central electronic unit panel on the left of the steering wheel. A wire-pulling tool is to be used to push the cable to the other side through the pipe.
