Summary of Contents for realspace MODERN COMFORT Series

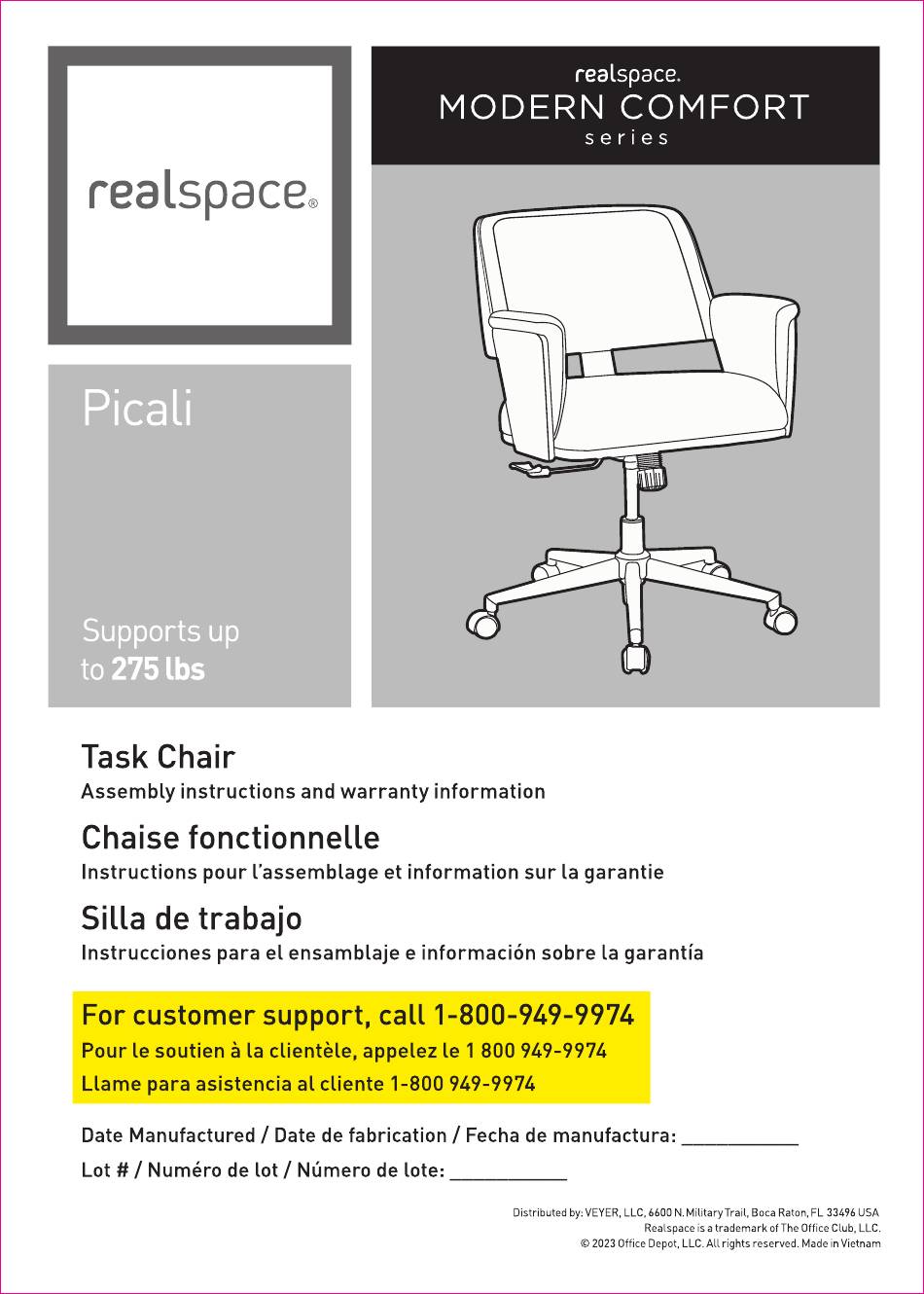

- Page 1 version 0623 Item 7741454...
- Page 5 Circle screw (18mm) Vis rondes (18mm) (18mm) Tornillo circular Bolts(1/4×1 ) Boulons (M6×25mm) Pernos (M6×25mm) Bolts (5/16×7/8 ） Boulons (M8×22mm) Pernos (M8×22mm) " Bolts (5/16×5/8 Boulons (M8×16mm) Pernos (M8×16mm)
- Page 6 Bolts(1/4×1 ) Boulons (M6×25mm) Pernos (M6×25mm) " Bolts (5/16×7/8 Boulons (M8×22mm) Pernos (M8×22mm) " Bolts (5/16×5/8 Boulons (M8×16mm) Pernos (M8×16mm)
- Page 8 Bolts (5/16×7/8 ） Boulons (M8×22mm) Pernos (M8×22mm)
- Page 9 Attach Back Bar (G) to Back cushion(A) by using 3 bolts(I). Then tighten bolts fully. Attach Circle screw (H) to Back Bar(G). Fixer la barre de dossier (G) au coussin de dossier (A) à l'aide de 3 boulons (I). Ensuite, serrez complètement le boulon .Fixer la vis circul aire (H) à...
- Page 10 Attach Back Cushion (A) to Seat Cushion(B) by using 3 bolts (K). Then tighten bolts fully. Utilisez 3 boulons (K) pour fixer le coussin (A) au coussin (B). Puis serrer complètement le boulon. Conecte el cojín del asiento (A) al cojín del asiento (B) con 3 pe rnos (K).
- Page 13 REMOVING SEAT PLATE FROM GASLIFT Raise the chair to the highest level, then step on the base(E), buckle the handle and seat cush ion(B)with two hands. Shake the seat (B) to separate the gas lift(D). RETRAIT DE LA PLAQUE DE SIÈGE DU GASLIFT Soulevez d'abord le fauteuil au niveau le plus élevé, puisbase (E), bouclez la poignée et le coussin du siège (B) avec deux mains.
- Page 14 REMOVING GAS LIFT FROM STAR BASE Grasp the chair base( ), and hit the bottom of the gas lift (D) with the soft hammer to divide the gas lift(D) from the base( ) RETRAIT DU LEVAGE À GAZ DE LA BASE STAR Saisissez la base du fauteuil ( E) et frappez le bas de l'ascenseur à...
- Page 15 Upholstery Cleaning Instructions: • Spot clean fabric with upholstery shampoo or dry-cleaning powder only. • Do not saturate fabric. Apply cleaning product according with instructions below. • Treat spills on fabric material immediately with an absorbent cloth by blotting the spill. •...
