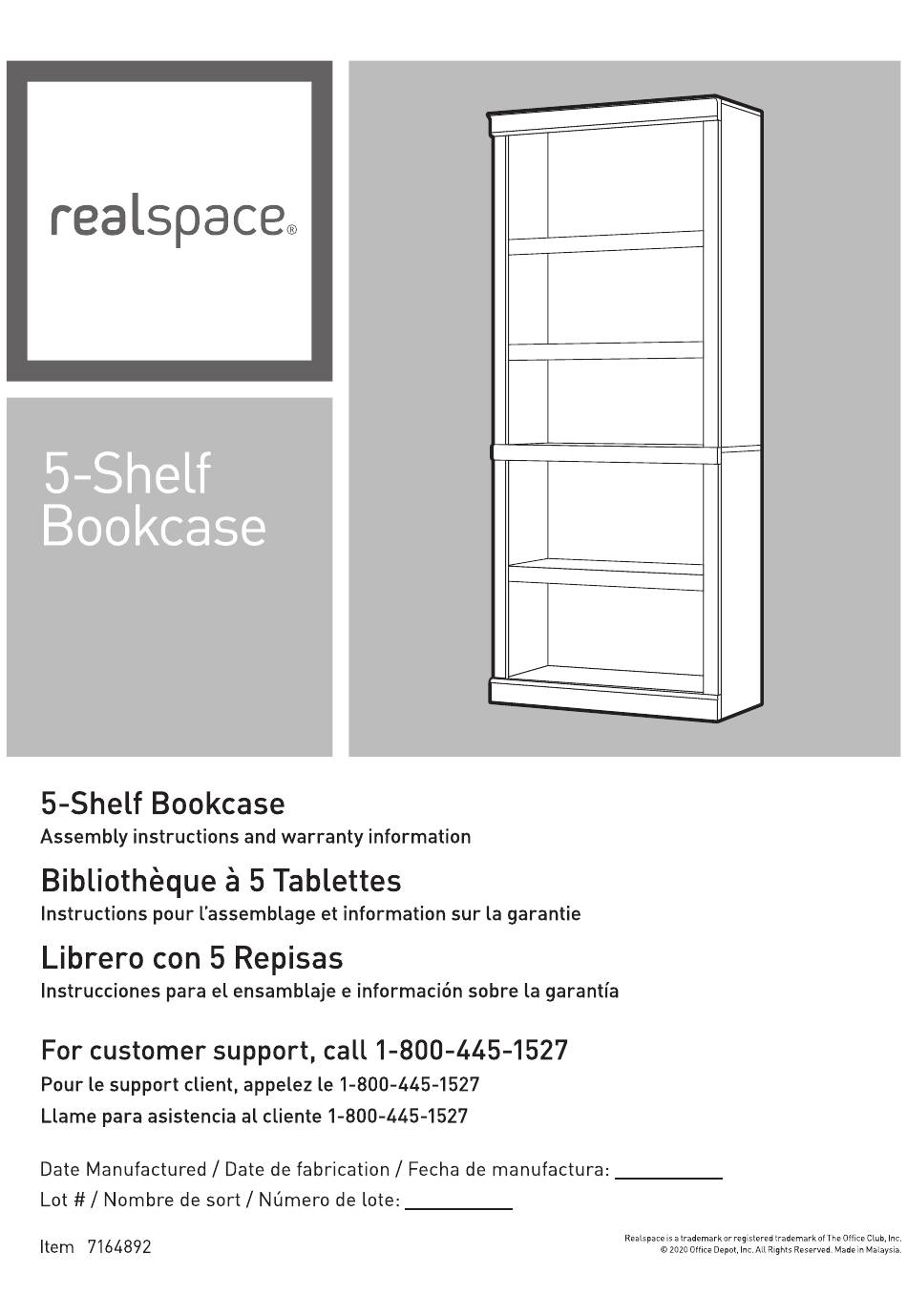

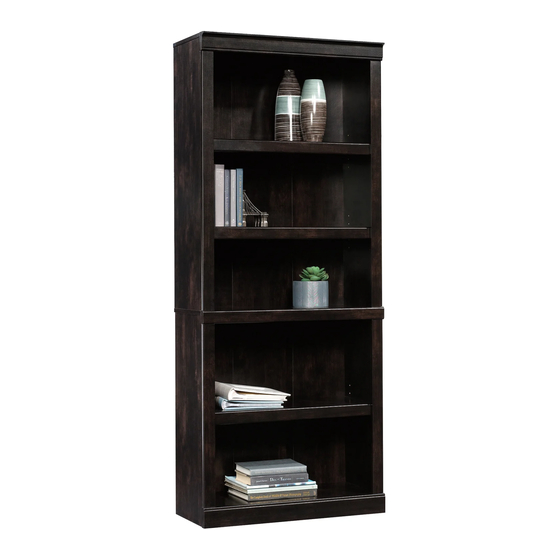

  • Page 1 12/09/19 535644 version 1219...
  • Page 2 Table of Contents Assembly Tools Required Hardware Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Part Identifi cation Assembly Steps 4-14 Hammer Not actual size Français 15-17 Español 18-20 Electric drill with 1/8" bit (ONLY in indicated step) Safety 21-22 Warranty...
  • Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. UPPER RIGHT END (1) SMALL BACK (1) UPPER LEFT END (1)
  • Page 4 Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/service/tips Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Some assembly Push forty-six HIDDEN CAMS (1) into the ENDS (A, B, C, å...
  • Page 5 Step 2 Turn forty-six CAM SCREWS (2) into the ENDS (C å and D), TOP (E), SHELF (G), VALANCE (K), BASE (L), SHELF MOLDINGS (M and N), and END MOLDINGS (O and P). (46 used) 425810 www.sauder.com/service Page 5...
  • Page 6 Step 3 Fasten the UPPER ENDS (A and B) to the TOP (E). Tighten å four HIDDEN CAMS. Caution Do not stand the unit upright without the BACK fastened. The unit may collapse. Edge with HIDDEN CAMS D E N H I D i t h S u r...
  • Page 7 Step 4 Fasten the SHELF (G) to the UPPER ENDS (A and B). Use å four 1-3/4" FLAT HEAD SCREWS (4). Edge with HIDDEN CAMS D E N H I D i t h f a c S u r 1-3/4"...
  • Page 8 Step 5 Fasten the LOWER ENDS (C and D) to the BOTTOM (F). å Tighten four HIDDEN CAMS. Edge with HIDDEN CAMS S u r f a c i t h H I D D E N Edge with HIDDEN CAMS D E N S u r H I D...
  • Page 9 Step 6 Fasten the LOWER ENDS (C and D) to the SHELF (G). å Tighten four HIDDEN CAMS. Just think. The sooner you do this, the sooner you do something else. 425810 www.sauder.com/service Page 9...
  • Page 10 Step 7 Fasten the VALANCE (K) to the TOP (E) and UPPER å ENDS (A and B). Tighten fi ve HIDDEN CAMS. Fasten the UPPER END MOLDINGS (O) to the UPPER å ENDS (A and B). Tighten six HIDDEN CAMS. Fasten the SHELF MOLDING (N) to the SHELF (G).
  • Page 11 Step 8 Fasten the LOWER END MOLDINGS (P) to the LOWER å ENDS (C and D). Tighten six HIDDEN CAMS. Almost time to Fasten the BASE (L) to the LOWER ENDS (C and D) and å celebrate! With a nap. BOTTOM (F).
  • Page 12 Step 9 Carefully turn your unit over onto its front edges. å Caution Unfold the SMALL BACK (I) and lay it over the bottom of å Do not stand the unit upright without the your unit. BACK fastened. The unit may collapse. Make equal margins along all four edges of the SMALL å...
  • Page 13 Step 10 Carefully stand your unit upright. å Pro Tip: Lift with your Fasten an ADJUSTABLE SHELF MOLDING (M) to one of the å legs. And, you know, ADJUSTABLE SHELVES (J). Tighten three HIDDEN CAMS. your arms. Repeat this step for the remaining ADJUSTABLE SHELVES (J) and å...
  • Page 14 Step 11 Use the FURNITURE TIPPING RESTRAINT KIT (98) for added stability. Fasten the strap to the top surface of the å TOP (E) using the short screw as shown. Place your unit in its fi nal location against a wall. Locate the center of a stud in your wall near your unit and mark it å...
  • Page 15 Modèle 425810 Bibliothèque 5 tablettes Utilisez les instructions d’ a ssemblage en français avec les NOUS CONTACTER EN PREMIER schémas étape par étape du manuel d’instruction en anglais. AVANT D'EFFECTUER TOUT RETOUR AU MAGASIN. Chaque étape en français correspond à la même étape en Nous faisons de notre mieux pour nous assurer que votre meuble anglais.
  • Page 16 ÉTAPE 1 ÉTAPE 5 Assembler l'élément sur un sol à moquette ou sur le carton vide Fixer les EXTRÉMITÉS INFÉRIEURES (C et D) au DESSOUS (F). pour éviter d'endommager l'élément ou le sol. Serrer quatre EXCENTRIQUES ESCAMOTABLES. Enfoncer quarante-six EXCENTRIQUES ESCAMOTABLES (1) dans les EXTRÉMITÉS (A, B, C et D), le DESSUS (E), le DESSOUS (F), la ÉTAPE 6 TABLETTE (G) et les TABLETTES RÉGLABLES (J).
  • Page 17 ÉTAPE 9 ÉTAPE 11 Attention: Ne pas relever l'élément dans sa position verticale Utiliser le KIT DE RETENUE ANTI-BASCULEMENT POUR avant d'avoir fi xé l’ARRIÈRE. L'élément risque de s'eff ondrer. MOBILIER (98) pour stabilité additionnelle. Fixer la sangle sur la surface supérieure du DESSUS (E) à...
  • Page 18 Modelo 425810 Biblioteca con 5 estantes Use estas instrucciones de ensamblaje en español junto con las CONTÁCTENOS PRIMERO fi guras paso-a-paso provistas en el folleto inglés. Cada paso en ANTES DE HACER DEVOLUCIONES A LA TIENDA. español corresponde al mismo paso en inglés. Compare la “Lista Tratamos de asegurar que su mueble llega en condición excelente.
  • Page 19 PASO 1 PASO 5 Ensamble la unidad sobre un piso alfombrado o sobre el cartón Fije los EXTREMOS INFERIORES (C y D) al FONDO (F). Apriete vacío para evitar rayar la unidad o el piso. cuatro EXCÉNTRICOS ESCONDIDOS. Empuje cuarenta y seis EXCÉNTRICOS ESCONDIDOS (1) en los EXTREMOS (A, B, C y D), el PANEL SUPERIOR (E), el FONDO (F), PASO 6 el ESTANTE (G) y los ESTANTES AJUSTABLES (J).
  • Page 20 PASO 9 PASO 11 Precaución: No coloque la unidad en posición vertical hasta que se Utilice el KIT DE CONTROL ANTI-INCLINACIÓN PARA fi je el DORSO. La unidad podría caerse. MOBILIARIO (98) para dar más estabilidad. Fije la correa a la superfi...
  • Page 21 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves. •...
  • Page 22 ADVERTENCIA Por favor use el mobiliario correcta y seguramente. El mal uso puede causar riesgos de seguridad o daño a las unidades o artículos domésticos. Cuidadosamente lea la tabla a continuación. Esté alerto de: Puede ocurrir: Evitar el problema: • Estantes sobrecargados •...
  • Page 23 1-YEAR LIMITED WARRANTY 1. Sauder Woodworking Co. (Sauder®) provides limited warranty coverage to the 4. This Warranty applies only to warranted defects that fi rst arise and are reported to original purchaser of this product for a period of one year from the date of purchase Sauder within the warranty coverage period.
  • Page 24 CONTACT US FIRST BEFORE MAKING ANY RETURNS TO THE RETAILER. Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
