Xylem McDonnell & Miller MM-704B Instruction Manual

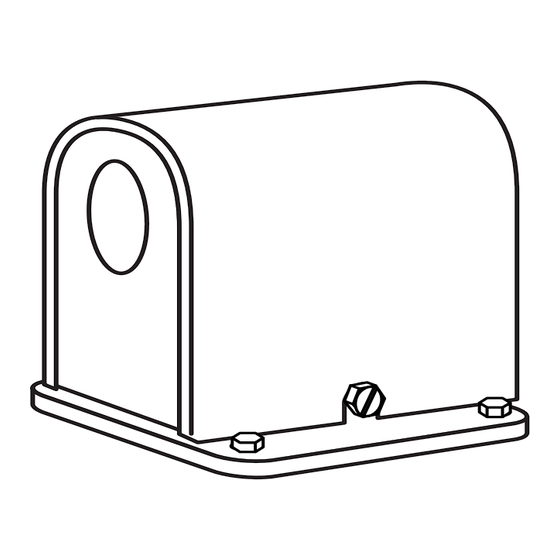

No. 2 Switch
Applications:
For series 47, 247, 63, 51, and 53 water
feeders to add the low water cut-off
function.
OPERATION
Electrical Ratings
Motor Switch Rating (Amperes)
Voltage Full Load
120 VAC 10.2
240 VAC 5.1
• Before using this product read and understand instructions.
• Save these instructions for future reference.
• All work must be performed by qualified personnel trained in the proper application, instal-
lation, and maintenance of plumbing, steam, and electrical equipment and/or systems in
accordance with all applicable codes and ordinances.
• To prevent a fire, do not use this low water cut-off to switch currents over 10.2A, 1/2 Hp at
120 VAC or 5.1A, 1/2 Hp at 240 VAC, unless a starter or relay is used in conjunction with it.
Failure to follow this warning could cause property damage, personal injury or death.
Locked Rotor Pilot Duty
61.2
125 VA at
120 or 240 VAC
30.6
! WARNING
INSTRUCTION MANUAL
No. 2 Switch
®
MM-704B
