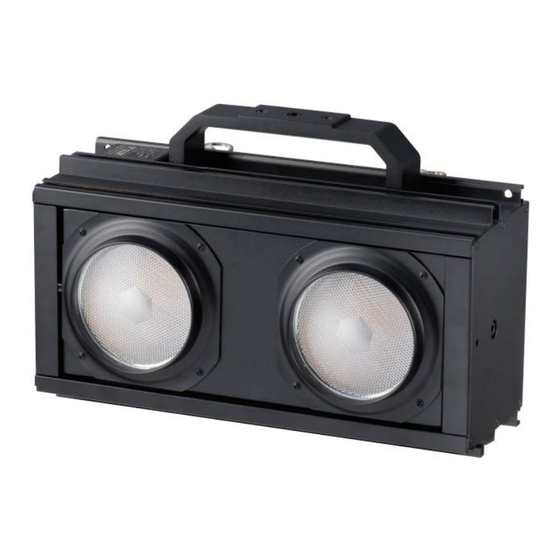

Summary of Contents for Luxibel B BLINDED

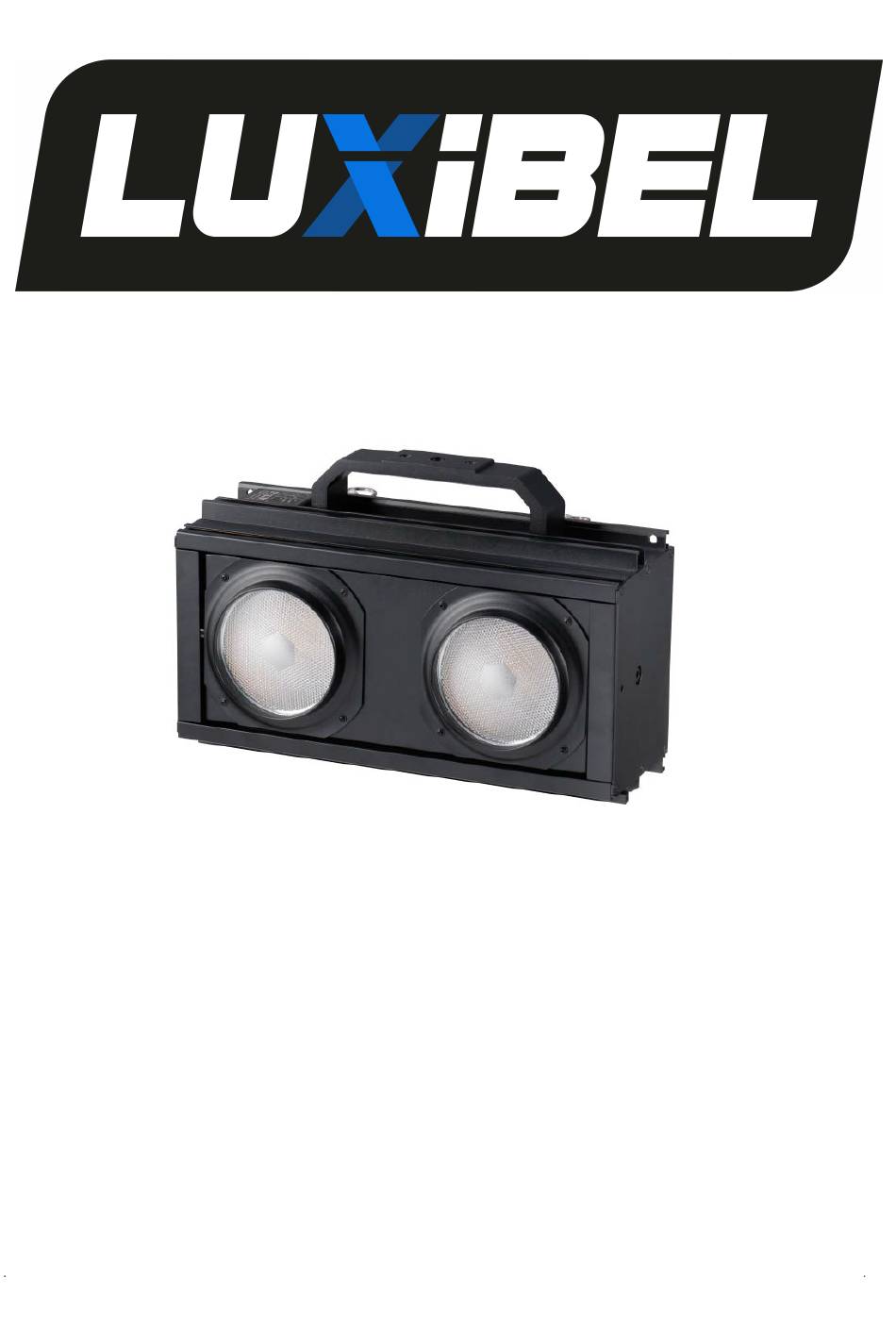

- Page 1 B BLINDED User Ma n u al Please read t he instructions carefully...
-
Page 2: Table Of Contents
Menu 1. Safety Instructions ..........................2 2. Technical Specifications ........................3 3. Installation and Connection ......................4 4. How to set the unit ...........................5 4.1 Rear Panel ............................5 4.2 Main Function..........................6 5. How to control the unit ........................9 6. DMX512 configuration ........................10 7. DMX512 Connection........................11 8.Troubleshooting ..........................11 9. -
Page 3: Safety Instructions
1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ... -
Page 4: Technical Specifications
2. Technical Specifications 4 channel Mode switchable : 1CH/2CH/4CH/6CH Channel Modes; Dimmer, Strobe; Ideal for Professional stages, Concerts, clubs, discotheques, Mobile DJs, etc. Input Voltage: AC100V~240V Total Power consumption: 50/60Hz 235W Beam Angle: 47° ... -
Page 5: Installation And Connection
Installation and Connection The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. -
Page 6: How To Set The Unit
Fixture jointing (Between more than two units) Warning: Max. load≤10 fixtures vertical. 4. How to set the unit 4.1 Rear Panel ○ 1 DMX input/output: For DMX512 link, use 3-pin XLR plug cable to input DMX signal, and to link the next unit. -
Page 7: Main Function
○ 2 LED indicator： POWER Power On DMX input present ○ 3 Button： MENU To select the programming functions DOWN To go forward in the selected functions To go backward in the selected functions ENTER To confirm the selected functions ○... - Page 8 change the DMX 512 address （ 001-512） . Once the address has been selected, press the ENTER button to setup or exit menu mode without any change after 8 seconds automatically. Back to the previous functions without any change press the MENU button. Channel Mode Select the , press the ENTER button.
- Page 9 levels. Dimmer Speed Select the , press the ENTER button. Use the DOWN and UP button to select (Fast) or (Smooth), (Tungsten filament effect),. Once selected, press the ENTER button to setup or exit menu mode without any change after 8 seconds. Back to the functions without any change press the MENU button again.
-
Page 10: How To Control The Unit
the MENU button again. Auto Test Select the , press the ENTER button and the unit will run self-test by built-in program. To go back to the functions press the MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode. -
Page 11: Dmx512 Configuration
6. DMX512 configuration Channel Mode：... -
Page 12: Dmx512 Connection
7. DMX512 Connection Mode connection： 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2. -
Page 13: Fixture Cleaning
B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3.
