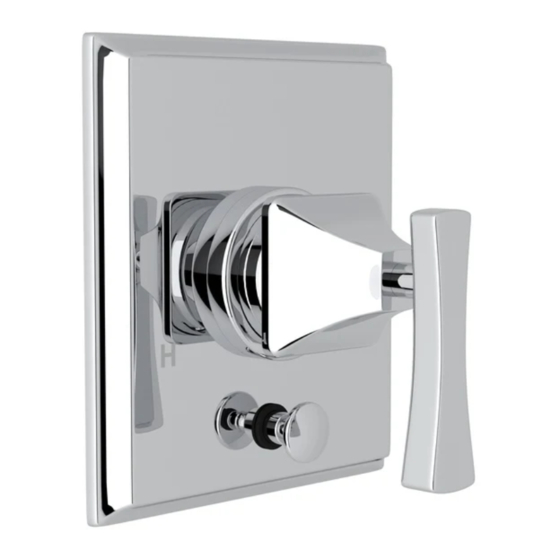

Rohl MATHESON ML2015LMAPC Installation Instructions

Rohl MATHESON ML2015LMAPC Installation Instructions

For pressure balance with diverter rough valve r2014d, pbv diverter trim set

Advertisement

Quick Links

Care and Maintenance: After use, wipe down with a soft, dry cloth.

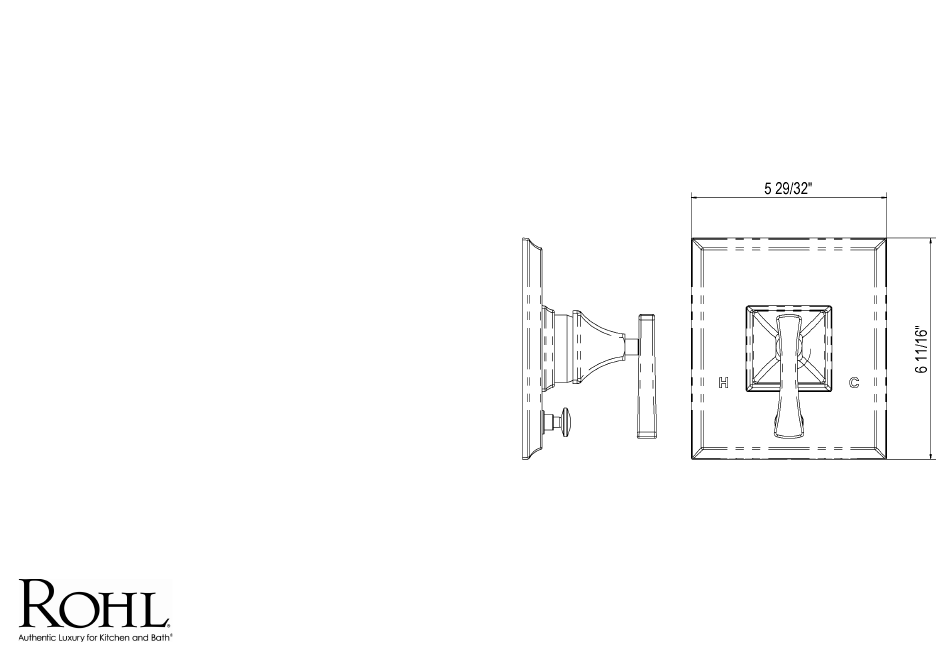

ROHL MATHESON PBV DIVERTER TRIM SET
For all chrome plated surfaces clean this product with warm soapy water and then dry with a
ML2015LMAPC, ML2015LMPN, ML2015LMSTN
dry soft cloth.
Nickel plated, satin and Inca brass finishes should be cleaned with a soft cloth and warm
For Pressure Balance With Diverter Rough Valve R2014D
water and then dried with a dry soft cloth.
Do not use cream cleaners or cleaning agents containing a corrosive acid or scouring agent
including: Softscrub, Comet, Ajax and Bonami, as these may damage the surface of the faucet.
INSTALLATION INSTRUCTIONS
Do not use any spray cleaners with ammonia or alcohol like Windex, 409 or Fantastik.
Any use of unsuitable cleaning agents causing damage to the surface will not be covered by
the warranty.
WARRANTY: Warranty is limited lifetime. See ROHL website for details.
(www.rohlhome.com)
A basic in-line filter system is required for the house to protect any debris from entering the
water supply line to the house (i.e. due to construction or service work on the street
water main).
Please leave instructions with the home owner once installed.
ROHL LLC 3 Parker, Irvine, CA 92618
714-557-1933 www.rohlhome.com
#41913 01/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the MATHESON ML2015LMAPC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rohl MATHESON ML2015LMAPC

  • Page 1 Any use of unsuitable cleaning agents causing damage to the surface will not be covered by the warranty. WARRANTY: Warranty is limited lifetime. See ROHL website for details. (www.rohlhome.com) A basic in-line filter system is required for the house to protect any debris from entering the water supply line to the house (i.e.
  • Page 2: Installation Instructions

    Installation Instructions Remove Mud cover and the #4 faceplate nut on the rough valve. (Not shown.) Please note: #4 faceplate nut (R945440) is included with the rough, not the trim package. 3/8” extension kit available; order R945440/2. Remove trim parts #12 through #7 and cartridge interface #2. Install the cartridge interface #2 and tighten grub screw #19 as shown.
