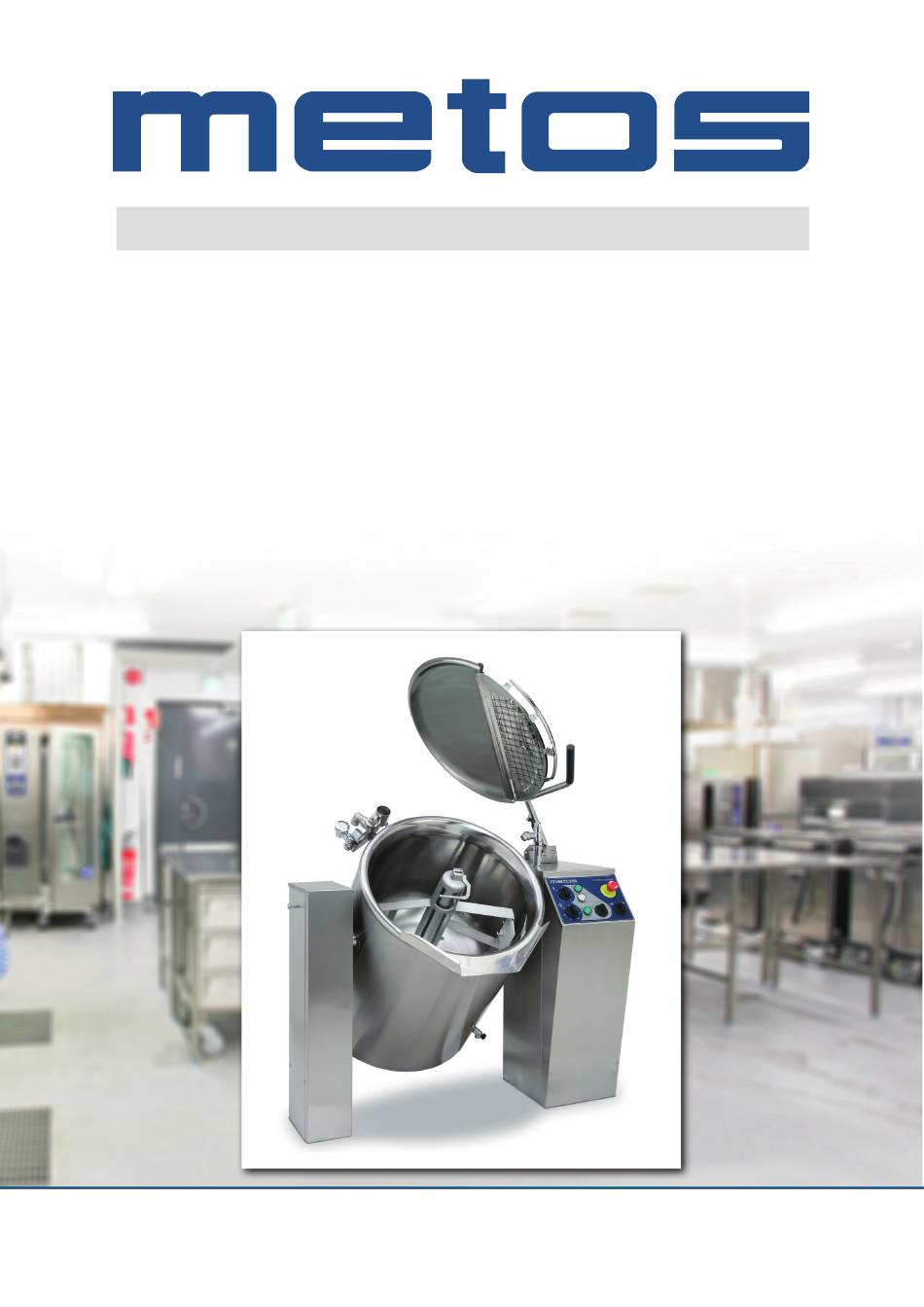

VIKING KETTLE
VIKING / VIKING COMBI
ELECTRICALLY HEATED
TYPE:
40E, 60E, 80E, 100E, 150E, 200E,
40EM, 60EM, 80EM, 100EM, 150EM, 200EM,
40EM SGL, 60EM SGL, 80EM SGL, 100EM SGL, 150EM SGL, 200EM SGL
Accessories
MIXER (M)
COOLING (C1)
AUTOMATIC WATER FILLING (AW)
SELF-MONITORING READINESS (HACCP)
Installation and Operation Manual
Translation of the original manual in Finnish
Rev 3.0
16.5.2022
4215340, 4215341, 4215343, 4215344, 4215345, 4215346, 4215939, 4215940, 4215941, 4215942, 4215943, 4215944
4215348, 4215349, 4215350, 4215351, 4215352, 4215353
