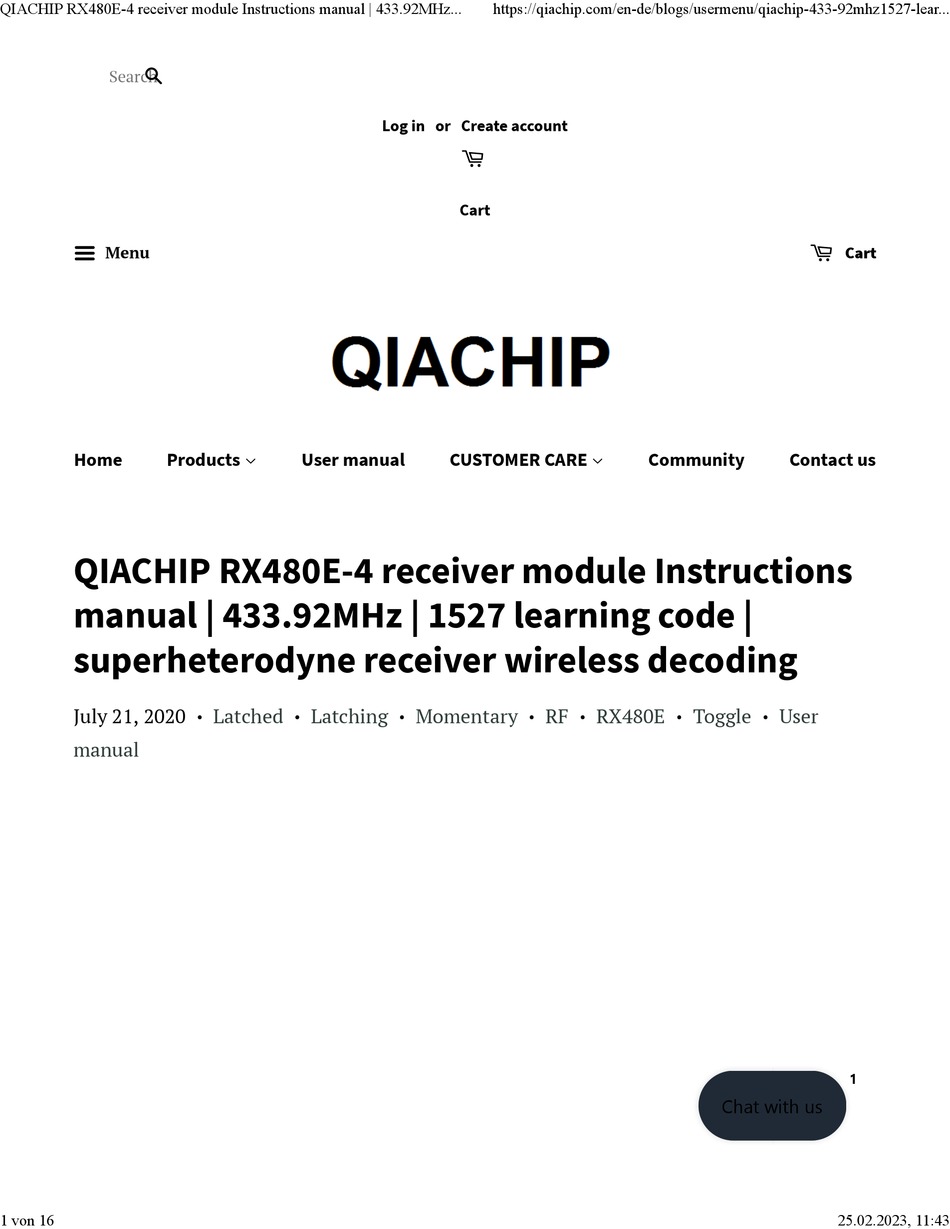

- Page 1 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... Search Log in or Create account Cart Menu Cart Home Products User manual CUSTOMER CARE Community Contact us QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz | 1527 learning code |...
-
Page 2: Operating Introduction
QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... Operating Introduction Clearing the code : Push the learning button on the receivers for 8 times , the codes will be cleaned . After clearning the code, all the remote control cannot work any more. - Page 3 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... Push the remote button,LED indicator on the receiver board will �ash then come off. After 3 seconds , the LED indicator will be on again , learning successfully . Learning the code :( Latching ) Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the �rst time learnt is for "ON", the second time learnt...
- Page 4 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... Receive Sensitivity: -108dB Quiescent Current : <=5mA Working Voltage : DC3.3~5V Working Frequency: 433.92MHz Support encoding chip model: EV1527, PT2262 (Others can be customized,but at least 1000pcs) Function Pin-out instructions: GND : groud or negative pole +V : DC3.3~5V input...
- Page 5 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... 5 von 16 25.02.2023, 11:43...
- Page 6 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... 6 von 16 25.02.2023, 11:43...
- Page 7 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... 7 von 16 25.02.2023, 11:43...
- Page 8 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... Introduction of working mode: 1. Press the learning button on the module 1 time. After the remote controller learns, it enters the jog mode; 2. Press the learning button on the module twice, and the remote controller will enter the self-locking mode after learning;...
- Page 9 QIACHIP RX480E-4 receiver module Instructions manual | 433.92MHz... https://qiachip.com/en-de/blogs/usermenu/qiachip-433-92mhz1527-lear... Enter two-way self-locking + two-way interlocking mode; 7. Press the learning button on the module 7 times. After the remote control learns, Enter two-way interlock + two-way interlock mode; Explanation of the purpose of this LED output signal: When any button of the remote control is pressed, the receiving end decodes and decodes correctly, the LED will output a high-level signal 1.
