QIACHIP KR2401F Manual

RF wireless receiver KR2401F manual

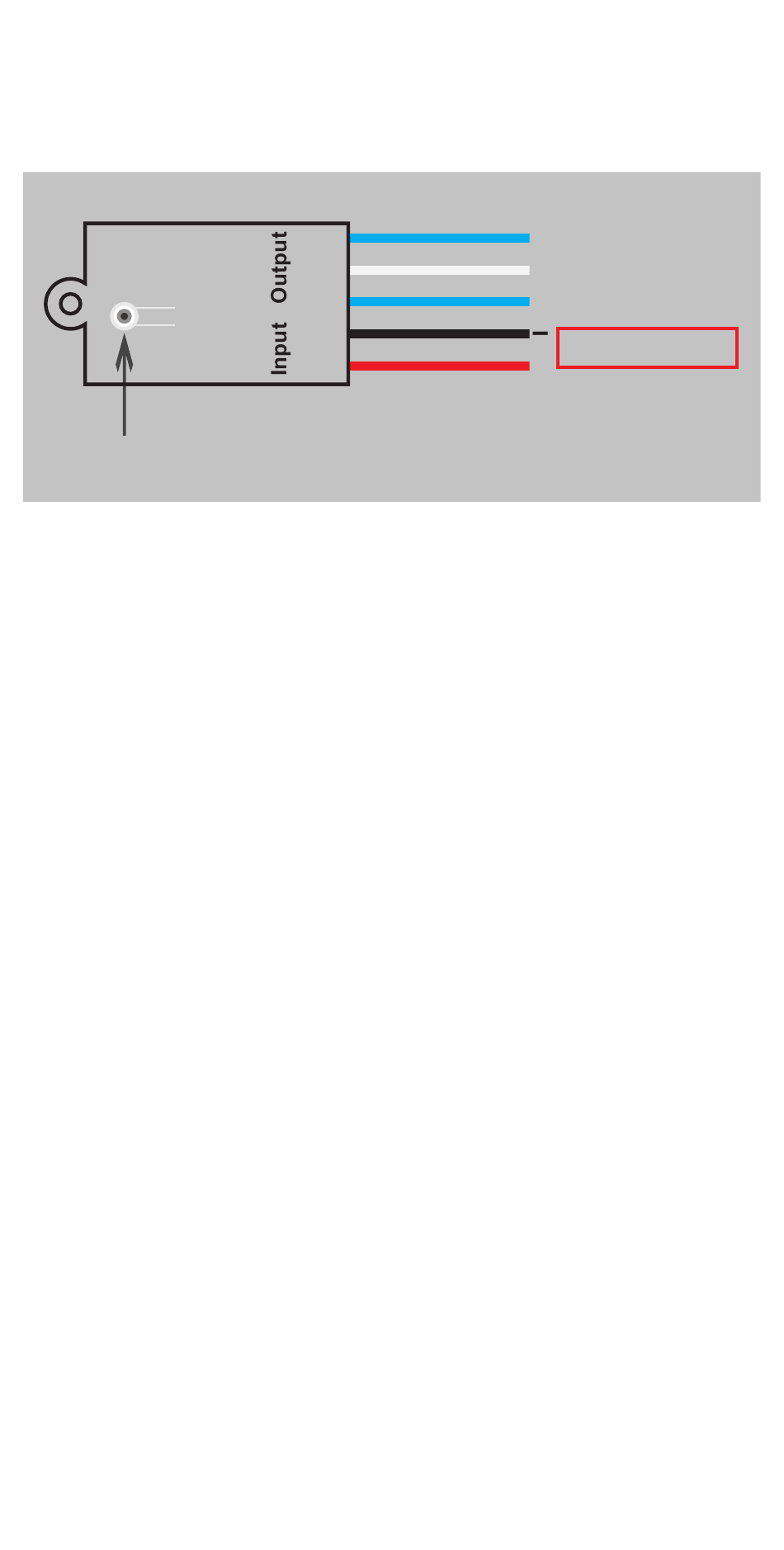

Wiring diagram
Receiver
Receiver Button
Instructions
Description of receiver output terminal status
Power-on of the output terminal: NO end and COM end are
Power-off of the output terminal: NC end and COM end are
1. Toggle mode pairing instructions
Toggle mode: The same button of the remote
control can control the power-on and power-off
of the output terminal of the receiver. Press once
to power on the output terminal of the receiver,
and press it again to power off the output
terminal of the receiver.
Setting method: Press the receiver button twice
continuously, the receiver indicator light is always
on, the receiver enters the code matching state,
and then press the button of the remote control,
the indicator light goes out after the code is
successfully coded.
2. Latching mode pairing instructions
Latching mode: The two buttons of the remote
control respectively control the power-on and
power-off of the output terminal of the receiver.
One button can only control the power-on of
Blue
White
Blue
black
Red
closed, NC end and COM end are opened
closed, NO end and COM end are opened
NC
COM
NO
DC5.5-24V
+
