- Page 1 12V 1CHANNEL RECEIVER INSTRUCTION model：KR1201A,KR1201B www.qiachip.com ————————————————— —————————————————...
-
Page 2: Wiring Diagram

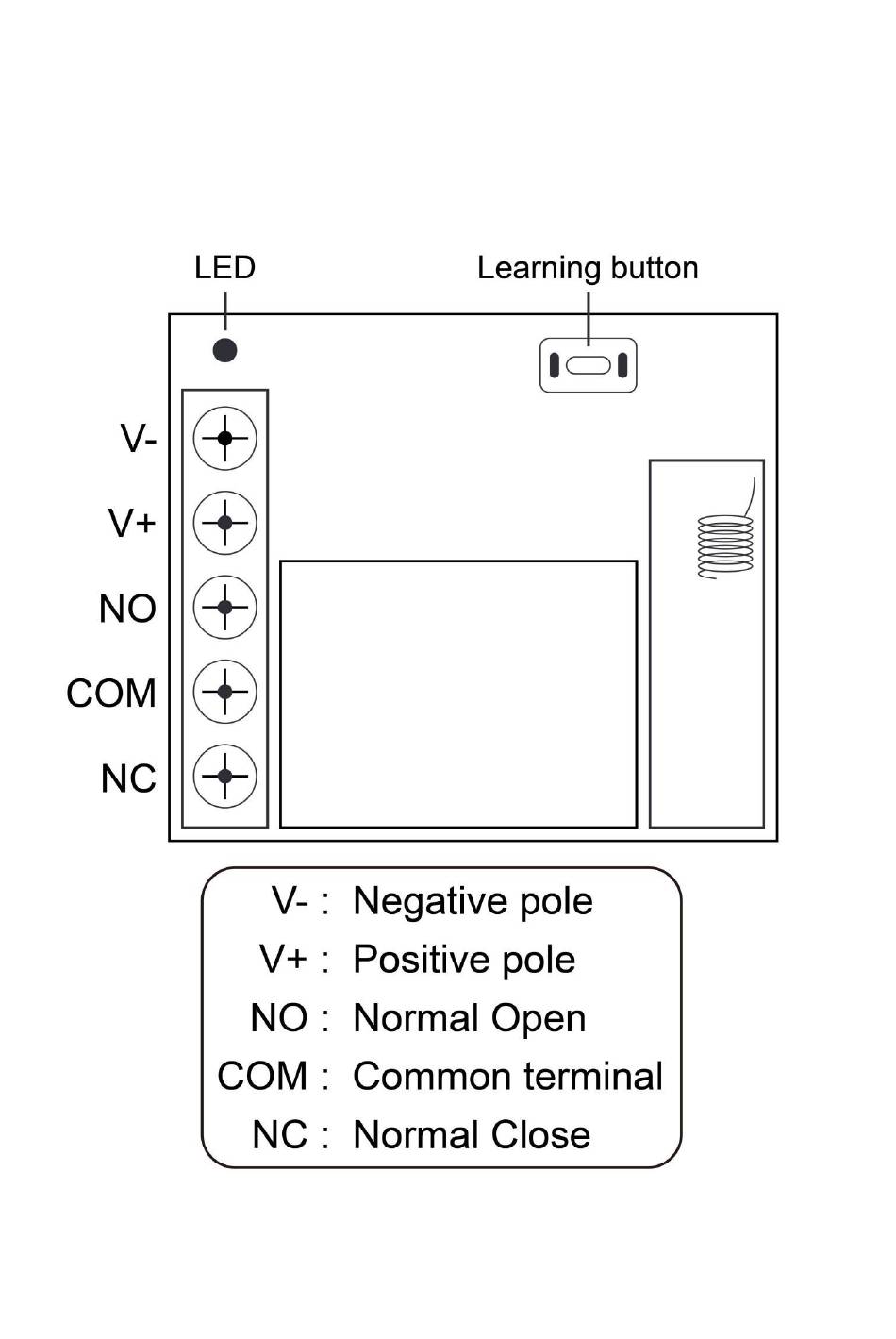

WIRING DIAGRAM *Please Don’t install with electricity. www.qiachip.com ————————————————— —————————————————... - Page 3 *Please Don’t install with electricity. www.qiachip.com ————————————————— —————————————————...
- Page 4 *Please Don’t install with electricity. www.qiachip.com ————————————————— —————————————————...
- Page 5 Function description and setting method * Note: All the following working modes need to be implemented with QIACHIP remote control (transmitter) and controller (receiver / wireless remote control switch). There is no guarantee that remote controls from other brands will work properly with our product.
- Page 6 Wait for the LED on the receiver to light up and enter the setting state. Step 2) Press the button (eg button A) on the remote control once. The LED indicator on the receiver will flash and then turn off, the delay mode is successfully set. www.qiachip.com ————————————————— —————————————————...
-
Page 7: Technical Date
Operation mode Momentary Mode,Toggle Mode,Latching mode,Delay mode (timed) Output NO , NC , COM Support remote type Learning code （1527） Modulation mode Working temperature -10 ~ +80 Size 35*30*18mm （mm） For more services, please check our website www.qiachip.com ————————————————— —————————————————...
