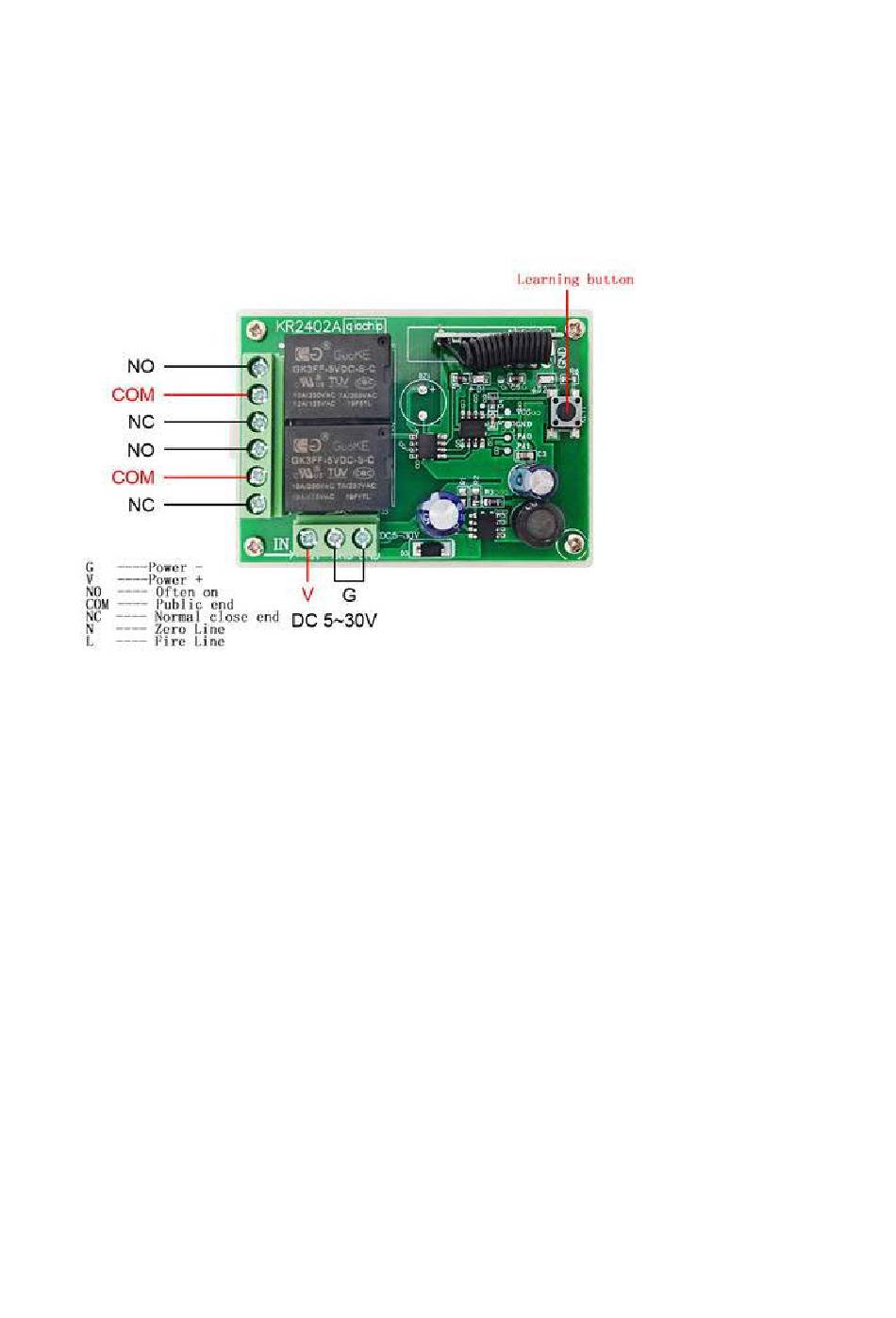

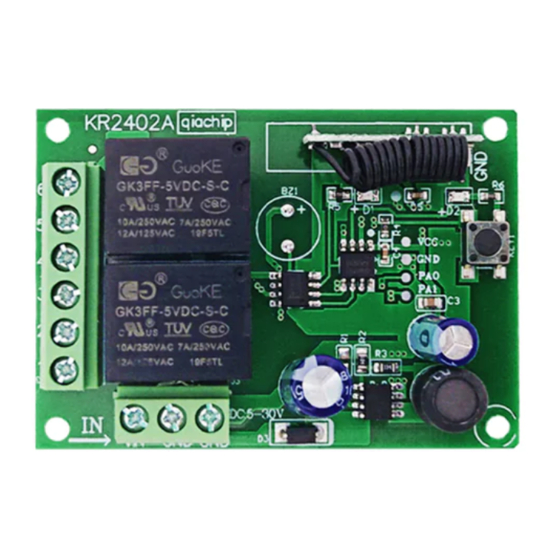

- Page 1 Qiachip KR2402A DC6-30V 2CHANNEL RECEIVER INSTRUCTION MANUAL March 14, 2020 Model ： KR2402A WIRING DIAGRAM...
- Page 3 Function description and setting method * Note: All the following working modes need to be implemented with QIACHIP remote control (transmitter) and controller (receiver / wireless remote control switch). There is no guarantee that remote controls from other brands will work properly with our product.
- Page 4 1) Momentary mode: After successful pairing in this mode, press and hold the remote control button (such as A), the corresponding relay on the receiver is turned on; release the remote control button (such as A), and the corresponding relay on the receiver will turn off; 2) Toggle mode: After successful pairing in this mode, press the remote control button (such as A) to turn on the corresponding relay on the receiver;...
- Page 5 Step 3) At this time, press another button (such as B) of the same remote control, the indicator flashes and then lights up. The Latching Mode is set successfully. TECHNICAL DATE Input Power KR2402A:DC 6-30V RF Frequency 433.92MHZ or 315MHZ Standby Current 8.5mA...
- Page 6 Working temperature -10 ~ +70°C Size 68*48*18（mm）...
