GEBERIT AQUACLEAN MERA

CLASSIC FLOOR-STANDING

INSTALLATION MANUAL

Table of Contents

Need help?

Do you have a question about the AQUACLEAN MERA and is the answer not in the manual?

Questions and answers

Patrick

July 9, 2025

where is the actuator plate in the geberit mera aquaclean, my automatic flush has stopped working after just two months.

Summary of Contents for Geberit AQUACLEAN MERA

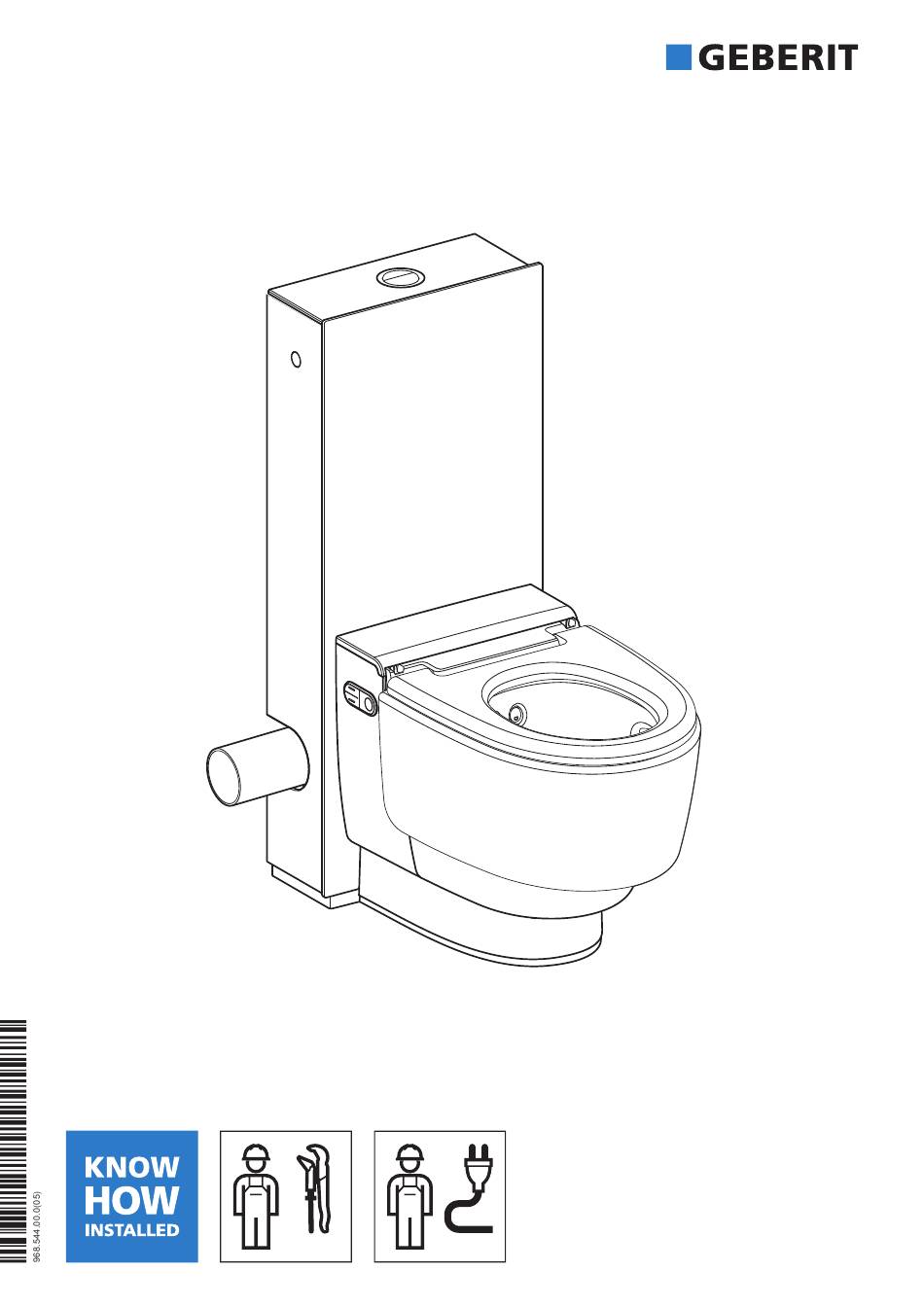

Page 1 GEBERIT AQUACLEAN MERA CLASSIC FLOOR-STANDING INSTALLATION MANUAL...
Page 2: Table Of Contents
Table of contents Dimensions in cm......................Installation dimensions for AquaClean Mera floor-standing WC Care ............Installation ........................Removing the packaging ..........................Connecting the female socket ........................Mounting the angle stop valve........................Mounting the frame ............................. Outlet pipe situation............................. Mount the outlet pipe wall outlet .......................
Page 3: Dimensions In Cm
Dimensions in cm Installation dimensions for AquaClean Mera floor-standing WC Care 117093595369127691 © 05-2024 968.544.00.0(05)
Page 5: Installation
Installation Removing the packaging Remove the panelling package. Open cardboard box and remove cover. Remove the accessory package. Remove the U cardboard. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 6: Connecting The Female Socket
Connecting the female socket Cut strands to length. Prerequisite – Wiring overview of the female socket. Select cable feed-through. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 7 Push the strands through. Fit the nut onto the female socket. Tighten the nut. Connect the strands. Screw on the female socket. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 8: Mounting The Angle Stop Valve
Mounting the angle stop valve Check the dimensions of the angle stop valve. Remove the angle stop valve. Seal the angle stop valve with hemp and mount it. Flush the angle stop valve. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 9: Mounting The Frame
Mounting the frame Position the frame. Adjust the frame height. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 10 Align the crossbeam in the frame if the Align the foot screws. Check the vertical and frame has to be aligned on existing horizontal frame alignment. threaded rods. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 11 Align the frame so that it is centred. Mark the top and bottom fastening points. Remove the frame. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 12 Establish the rear centre water supply Drill the fixing holes. connection. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 13 Position the frame. Mount the frame screws at the top. Adjust the frame if necessary. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 15: Outlet Pipe Situation
Mount the outlet pipe wall outlet Outlet pipe situation Prerequisite – Installation dimensions of the outlet pipe wall outlet. "Mount the outlet pipe wall outlet", page 15 "Mounting the outlet pipe side outlet", page 17 117093595369127691 © 05-2024 968.544.00.0(05)
Page 16 Mount the offset sheet. Dispose of the pipe bracket. See "Mount the reinforced braided hoses", page 18. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 17: Mounting The Outlet Pipe Side Outlet
Mounting the outlet pipe side outlet Mount the outlet pipe. Prerequisite – Installation dimensions of the outlet pipe side outlet. Insert the upper part of the pipe bracket. Secure the outlet pipe with the lower part of the pipe bracket. 117093595369127691 ©...
Page 18: Mount The Reinforced Braided Hoses
Mount the reinforced braided Insert the reinforced braided hose. hoses Remove the transport protection. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 19 Connect and secure the reinforced braided Lay the reinforced braided hose for the hose to the angle stop valve. shower toilet. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 20 Mount the Y-piece and connect the Mount the bottom side cover. reinforced braided hoses. 7.826 117093595369127691 © 05-2024 968.544.00.0(05)
Page 22: Mount The Cover Plate
Mount the cover plate Lock the front cladding. Mount the front cladding. Press the front cladding into the frame to insert the interlock. Open the side interlock. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 23 Cut out the side cladding. Lock the side cladding. Mount the side cladding. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 24: Mounting The Flush Pipe And The Outlet Pipe
Mounting the flush pipe and the Measure the flush pipe, cut it to length and outlet pipe deburr it. Measure the outlet pipe, cut it to length and deburr it. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 25 Mount the threaded rods. Apply the lubricant on the seals. Mount the flush pipe and the outlet pipe. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 27: Mount The Shower Toilet
Mount the shower toilet Position the shower toilet. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 28 Overview of the water supply and mains Open the butterfly valve of the main control. connection. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 29 Insert the cable. Remove the interface module. Insert the reinforced braided hose. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 30 Slide the WC ceramic appliance towards the Fasten the WC ceramic appliance to the wall. wall. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 31 Connect the reinforced braided hose to the Open the ball valve. ball valve. Connect the control cable with the interface module. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 32 Install the interface module. Connect the mains plug. Raise the main control. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 33: Mounting The Covers
Mounting the covers Assemble the standard side cladding parts. Loosen the screws of the top protection cover. Mount the side cladding. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 35 Raise the leg support. Mount the lower cladding. Adjust and secure the leg support with a lock nut. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 36 Mount the pedestal cladding for low or high Mount the bottom cladding. positions. Do not apply any joints. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 37: Function Test
Function test Testing the flush actuation Mounting the wall-mounted holder Open the angle stop valve in the frame. Prerequisite – The device has been mounted and connected. ▶ Remove the adhesive foil and attach the wall-mounted holder. Mount the cover and the actuator. 117093595369127691 ©...
Page 38: Setting The Remote Control Language
Setting the remote control Select the language in the menu. language Prerequisite – The transport mode of the remote control is active. Press the <+> button on the remote control for approx. 5 seconds to activate the remote control. Confirm language selection. 117093595369127691 ©...
Page 39: Switching On The Device
Switching on the device Switch on the device. Prerequisite – The device has been mounted and connected. – The water supply at the ball valve has been opened. – The lateral design covers have been assembled. – The lower design cover has been mounted. –...
Page 40: Testing Automatic Flush Actuation
Testing automatic flush actuation Simultaneously press the button at the <top> of the lateral control panel and the <+> button on the remote control for approx. Prerequisite 20 seconds until the LED on the remote – The automatic flush actuation has been control lights up for 3 seconds.
Page 41: Checking The Lateral Control Panel
Checking the lateral control panel Test shower water temperature. For the following test steps, weight must be applied to the WC seat to simulate a user. The LED on the lateral control panel lights up blue during this. Test adjustability of spray intensity. Test the anal shower function.
Page 42: Testing The Remote Control
Testing the remote control Test adjustability of spray intensity. For the following test steps, weight must be applied to the WC seat to simulate a user. The LED on the lateral control panel lights up blue during this. Test the anal shower function. Test the spray arm position.
Page 43 Test the Lady shower function. Test the adjustability of dryer temperature. Test the dryer functionality. Test the flush actuation. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 44: Resetting The Storage Water Heater
Resetting the storage water Reset the thermal cut-out of the storage heater water heater. If the storage or transport temperature exceeds 45 °C, the thermal cut-out will be tripped. Prerequisite – The status LED on the lateral control panel flashes red. Demount front cladding.
Page 45 Check the status LED. Mount the front cladding. If the status LED continues to flash red, switch the device off. Wait 30 seconds. 117093595369127691 © 05-2024 968.544.00.0(05)
Page 46 Switch the device on again. Check the status LED. If the status LED continues to flash red after taking these measures, contact customer service. Check the status LED. The status LED on the lateral control panel flashes blue, install the front cladding. 117093595369127691 ©...
Page 47: Commissioning
Commissioning Putting the device into operation Clean the device. Close the WC seat and WC lid. Prerequisite – Function test using the lateral control panel was performed successfully. Result ✓ The device is ready for operation and can be – Function test of the remote control was handed over to the customer.
Page 48: Handing Over The Device
Handing over the device Geberit AquaClean spray shield Geberit AquaClean descaling agent Geberit AquaClean cleaning set Remote control Wall-mounted holder for remote control Instruct the customer with regard to Prerequisite operation and cleaning, as per the user – Initial commissioning was performed manual.
