Summary of Contents for Samsung RAC AR9500T

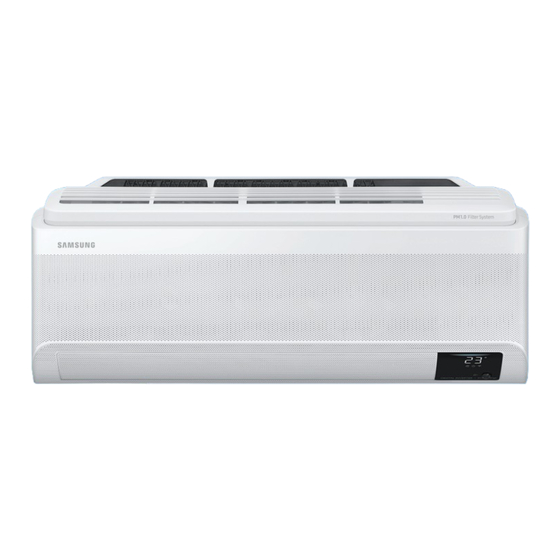

- Page 1 Technical Data Book 2021 AR9500T for Europe (INV, R32, 50Hz, HP) Model : AR**AXKAAWKNEU (Indoor Unit) AR**AXKAAWKXEU (Outdoor Unit)
- Page 2 History Version Modification Date Remark Ver.1.0 Released 2021 AR9500T RAC TDB for Europe (AR9500) 21.03.10 Ver.1.1 Updated the Additional Accessories information in Spec page 22.04.21...
- Page 3 Nomenclature Model Name Buyer (1) Classification (6) Design Segment Wind-Free GEO Wind-Free AIRISE AIRISE (2) Capacity x1000 Btu/h (7) Version A-Z (1 digit) (3) Year 2021 (8) Color DA White (4) Product Type INVERTER HP R32 (9) Set Indoor Unit (5) Characteristics Outdoor Unit PM1.0 Filter + PM1.0 Sensor...
-
Page 4: Indoor Unit
Line-up Indoor Unit Model Type Design Image Wind-Free GEO AR9500 PM 1.0 Capacity (kW) Model Type Design Wind-Free AR9500 ● ●... -
Page 5: Outdoor Unit
Line-up Outdoor Unit Capacity (kW) Model Type Design Wind-Free AR9500... -
Page 6: Table Of Contents
Contents 1. Specification 2 Capacity Table 3. Dimensional Drawing 4. Center of Gravity 5. Electrical Wiring Diagram 6. Sound Data 7. Temperature and air flow distribution 8. Piping Diagram 9. Operation Limit 10. Capacity Correction 11. Installation... -
Page 7: Specification
1. Specification AR9500 Model Name Indoor Unit AR09AXKAAWKNEU AR12AXKAAWKNEU Outdoor Unit AR09AXKAAWKXEU AR12AXKAAWKXEU Mode HEAT PUMP HEAT PUMP Performance 0.9 / 2.5 / 3.4 0.9 / 3.5 / 4.4 Cooling Capacity Btu/h 3,071 / 8,530 / 11,601 3,071 / 11,942 / 15,013 (Min/Std/Max) 0.7 / 3.2 / 6.5 0.8 / 4.0 / 6.8... - Page 8 1. Specification AR9500 Model Name Indoor Unit AR09AXKAAWKNEU AR12AXKAAWKNEU Outdoor Unit AR09AXKAAWKXEU AR12AXKAAWKXEU Additional External Model Accessories Internal Model Drain Pump Max. lifting Height / ㎜ / Liter/h Indoor Displacement Unit Easy Filter Plus Removable / Washable Removable / Washable Tri-Care Filter ○...
-
Page 9: Capacity Table
2 Capacity Table AR9500 AR09AXKAAWKNEU+AR09AXKAAWKXEU Cooling TC : Total Capacity, SHC : Sensible Heat Capacity, PI : Power Input Indoor Temperature (℃, DB / WB) Outdoor 20 / 14 22 / 16 25 / 18 27 / 19 28 / 20 30 / 22 32 / 24 Temp. - Page 10 2 Capacity Table AR9500 AR12AXKAAWKNEU+AR12AXKAAWKXEU Cooling TC : Total Capacity, SHC : Sensible Heat Capacity, PI : Power Input Indoor Temperature (℃, DB / WB) Outdoor 20 / 14 22 / 16 25 / 18 27 / 19 28 / 20 30 / 22 32 / 24 Temp.
-
Page 11: Dimensional Drawing
3. Dimensional Drawing Indoor units AR9500 : AR09AXKAAWKNEU, AR12AXKAAWKNEU Unit: mm (inches) 820.0[32-5/16] 215 [8-7/16] 48.3 [1-7/8] 820.0[32-5/16] 397.7 [15-11/16] 422.3 [16-5/8] 176.0 [6-15/16] 397.0 [15-5/8] 84.0[3-5/16] 64.0 [2-1/2] 64.0 [2-1/2]... -
Page 12: Outdoor Units
3. Dimensional Drawing Outdoor units AR9500 : AR09AXKAAWKXEU, AR12AXKAAWKXEU Unit: mm (inches) [31 1/8] 601.7 88.7 [3 1/2] [23 11/16] 2- 50.0 [1 15/16] [11 1/4] 509.0 [20 1/16]... -
Page 13: Center Of Gravity
4. Center of Gravity Indoor units AR9500 : AR09AXKAAWKNEU, AR12AXKAAWKNEU Unit: mm (inches) 820.0[31-5/16] 363.2 [14-5/16] 109.8 [4-5/16] 215 [8-7/16]... - Page 14 4. Center of Gravity Outdoor units AR9500 : AR09AXKAAWKXEU, AR12AXKAAWKXEU Unit: mm (inches) [7 7/16] [6 1/8]...
-
Page 15: Electrical Wiring Diagram
5. Electrical Wiring Diagram Indoor units Printed circuit MOTION SENSOR SENSOR(MOTION) DISPLAY DUST SNESOR SENSOR(DUST) board(DISPLAY BOARD) Thermistor(Room Motor(BLDC FAN ROOM TH BLDC HVPS LOAD(HVPS MODULE) Temp._10Kohm) MOTOR) Thermistor(EVA MID EVA MID - TH UP/DOWN STEP MOTOR1 Motor(STEP MOTOR) WIFI MODULE LOAD(WIFI MODULE) Temp._10Kohm) Thermistor(EVA IN... - Page 16 5. Electrical Wiring Diagram Outdoor units DRED Printed circuit board(DRED PCB) DIS-TH Thermistor(Discharge Temp._200Kohm) REACTOR REACTOR OUT-TH Thermistor(AmbientTemp._10Kohm) EEPROM Printed circuit board(EEPROM PCB) COND-TH Thermistor(Cond Out Temp._10Kohm) COMP COMPRESSOR BLDC Motor(BLDC FAN Motor) HEATER Printed circuit board(HEATER PCB) EEV-A Electronic expansion valve A 4-WAY VALVE 4-WAY VALVE NOTE...
-
Page 17: Sound Data
6. Sound Data Indoor units Sound Pressure level Unit: dB(A) Cooling Model High Silent AR09AXKAAWKNEU AR12AXKAAWKNEU Microphone • NR Curve 2) AR12AXKAAWKNEU 1) AR09AXKAAWKNEU NOTE • Specifications may be subject to change without prior notice. • Sound pressure Level - Sound pressure level is obtained in an anechoic room. - Sound pressure level is a relative value, depending on the distance and acoustic environment. - Page 18 6. Sound Data Outdoor units Sound Pressure level Unit: dB(A) Model Cooling AR09AXKAAWKXEU Microphone AR12AXKAAWKXEU Front • NR Curve 2) AR12AXKAAWKXEU 1) AR09AXKAAWKXEU NOTE • Specifications may be subject to change without prior notice. • Sound pressure Level - Sound pressure level is obtained in an anechoic room. - Sound pressure level is a relative value, depending on the distance and acoustic environment.
-
Page 19: Sound Power Level
6. Sound Data Indoor units Sound Power level Unit: dB(A) NOTE Model Cooling AR09AXKAAWKNEU • Specifications may be subject to change without prior notice. AR12AXKAAWKNEU - Sound power level is an absolute value that a sound source generates. - dBA = A-weighted sound power level. - Reference power : 1pW. - Page 20 6. Sound Data Outdoor units Sound Power level Unit: dB(A) NOTE Model Cooling AR09AXKAAWKXEU • Specifications may be subject to change without prior notice. AR12AXKAAWKXEU - Sound power level is an absolute value that a sound source generates. - dBA = A-weighted sound power level. - Reference power : 1pW.
-
Page 21: Temperature And Air Flow Distribution
7. Temperature and air flow distribution AR9500 AR09AXKAAWKNEU • Cooling air velocity distribution • Cooling Temperature distribution (Discharge angle : 20 degree) (Discharge angle : 20 degree) • Heating air velocity distribution • Heating Temperature distribution (Discharge angle : 30 degree) (Discharge angle : 30 degree) - Page 22 7. Temperature and air flow distribution 7. Temperature and air flow distribution AR9500 AR12AXKAAWKNEU • Cooling air velocity distribution • Cooling Temperature distribution (Discharge angle : 20 degree) (Discharge angle : 20 degree) • Heating air velocity distribution • Heating Temperature distribution (Discharge angle : 30 degree) (Discharge angle : 30 degree)
-
Page 23: Piping Diagram
8. Piping Diagram 8. Piping Diagram AJ026MCJ3EC/SP OUTDOOR UNIT INDOOR UNIT Thermistor - Thermistor- IDU Heat Exchager Mid Heat (T_IM) Exchanger (T_II) Service Valve- Heat Exchanger - Gas Pipe Indoor unit (SV_G) (HX_ID) Outdoor Fan Motor (OFM) Indoor Thermistor- Fan Motor Indoor Room (IFM) Electronic... -
Page 24: Operation Limit
9. Operation Limit 9. Operation Limit Cooling Heating Warming Operation Range Operation Operation Range Range Indoor Temperature (℃ DB) Indoor Temperature (℃ DB) -
Page 25: Capacity Correction
10. Capacity Correction 10. Capacity Correction Outdoor units Cooling Pipe Length (m) 12.5 0.96 0.94 0.91 0.99 0.97 0.95 0.92 0.98 0.96 0.93 0.99 0.97 0.95 0.92 0.96 0.94 0.91 Heating Pipe Length (m) 12.5 0.96 0.94 0.91 0.99 0.97 0.95 0.92 0.98... -
Page 26: Installation
Please cover the air conditioner with PE BAG after installation, and remove it when you start to run air conditioner. ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site. - Page 27 For the product that uses the R-32 refrigerant, Install the indoor unit on the wall 1.8 m or higher from the floor. ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 28 ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 29 Outdoor unit Sea breeze Outdoor Protection wall unit Sea breeze Outdoor unit ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 30 Using six field-supplied mounting screws and anchors (if applicable), attach the bracket to the wall. ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 31 Bend the smaller pipe gradually to prevent kinking. The larger pipe has a preinstalled spring bender to prevent kinking. ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 32 For the product that uses the R-32 refrigerant, be cautious not to generate a spark by keeping the following requirements: ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
-
Page 33: Outdoor Unit Installation
※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site. - Page 34 5 For installations in locations that require seismic or hurricane tie downs, comply with local codes. ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 35 Indoor unit Outdoor unit Unit tCO₂e ①, a ②, b ①+②, c ※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB on pvi.Samsung.com site or Global Partner Portal site.
- Page 36 2022.04 Ver. 1.1 Samsung Electronics Co., LTD. Head Office (Suwon Korea) 129, Samsung-Ro, Yeongtong-Gu, Suwon City, Gyeonggi-Do, Korea 16677 Website : www.samsung.com, https://partnerhub.samsung.com Email : airconditioner@samsung.com Images and data in this book may subject to change without prior notice.
